Cams for 06 Dyna and 07-17 Twin Cam are for use with models with hydraulic tensioner chain-drive system; cams 510C and 551C are bolt-in applications, all others require high-lift valve springs. Cam bearings and gaskets must be replaced when installing new cams.

Cams for '06 Dyna and '07-'17 Twin Cam are for use with models with hydraulic tensioner chain drive system. 2006-2010 Harley-Davidson FXD Dyna Super Glide - -. 2006 Harley-Davidson FXDWGI Dyna Wide Glide - -.

585C Chain Drive Camshaft KitCamshaft Kit - 585C - Chain Drive - Twin Cam. Cams for '06 Dyna and '07-'17 Twin Cam are for use with models with hydraulic tensioner chain drive system. 2006 Harley-Davidson Low Rider FXDL.

S & S Cycle 106-4382 585C Chain Drive Camshaft Kit. Manufacturer S & S Cycle. Kits include cams, inner gears, outer drive gears, inner and outer bearings, gasket and instructions. 2017 Harley-Davidson Fat Bob FXDF.

585 SERIES GRIND CAMS. Grind Open Close @. 053 Valve Lift. 585 Series. Fits: 2006-2015 Harley-Davidson Dyna Models and 2007-2015 Harley-Davidson Twin Cam FLH/FLT Softail Models. Cams for 06 Dyna and 07-15 Twin Cam are for use with models with hydraulic tensioner chain-drive system; cams 510C and 551C are bolt-in applications, all others require high-lift valve springs.

S & S Cycle 585C Chain Drive Camshaft Kit 106-4382. Cams for 06 Dyna and 07-17 Twin Cam are for use with models with hydraulic tensioner chain-drive system; cams 510C and 551C are bolt-in applications, all others require high-lift valve springs.

Chain Drive Cams 585C Twin Cam/Dyna. Harley Davidson FLD Switchback 2016. Harley Davidson FLHTCU Electra Glide Ultra Classic 2016. Harley Davidson FLD Switchback 2015. Harley Davidson FLD Switchback 2014.

585C CHAIN DRIVE CAMS. Cams for 06 Dyna and 07-16 Twin Cam are for use with models with hydraulic tensioner chain-drive system; require high-lift valve springs. Cam bearings and gaskets must be replaced when installing new cams.

Camshaft Kit - 585C - Chain Drive - Twin Cam. Designed for 88" to 107" engines with compression ratios from 10.0:0 to 10.5:1 and 100" and 107" engines with compression ratios 9.7:1 to 10.5:1. Strongest from 3500-6000 rpm for 88" to 103" engines and 2500-5000 rpm for larger engines.

07+ Harley Twin Cam 585C 585 Chain Drive Cam Camshaft Kit 66857. Mid USA: 66857. S&S 585 Cam Kit. Standard Chain Drive. Cam Camshaft Cover Gasket For 57-81 Harley Sportster XL K 1000 25224-52A. Andrews 212030 J Grind Camshaft 77-84 Harley Shovelhead. 405 Lift 66802.

Product Manufacture: S&S Cycle MPN:106-4382 585G Chain Drive Camshaft Kit Designed for 88in. engines with compression ratios from 10 to 10.5:1 and 100in. and 107in. engines at 9.7:1 to 10.5:1 compression Strongest from 3,500-6,000 rpm 99-04 models require high-lift springs Intake Opening (degrees): 20 Intake Closing (degrees): 45 Exhaust Opening (degrees): 60 Exhaust Closing (degrees): 20 Intake Duration (degrees): 245 Exhaust Duration (degrees): 260 Valve Lift (in).585 Intake Centerline (degrees): 102.5 Exhaust Centerline (degrees): 110 Intake Lift at TDC (in).186 Exhaust Lift at TDC (in).179.

Manufacturer: S&S CYCLE. We will respond within24-48 hours with your RMA and instructions on how to proceed.

S&S Cycle 585C Chain Drive Cams. Our Special on S&S Cycle Performance Products! Part Number106-4382. Condition: New.

585C Chain Drive Camshaft Kit -. S & S Cycle. Kits include cams, inner gears, outer drive gears, inner and outer bearings, gasket and instructions. We will need a link to the exact part that you are inquiring about.

The kit features a chain drive system that ensures smooth operation and efficient power transfer, optimized for engines with compression ratios between 9.7:1 and 10.5:1. Installation requires careful checking of coil bind, valve-to-valve clearance, and valve-to-piston clearance to ensure optimal performance and safety.

585C Chain Drive Camshaft Kit.

Manufacturer: S&S CYCLE. We will respond within24-48 hours with your RMA and instructions on how to proceed.

S&S CYCLE 585C Chain Drive Camshaft Kit (Twin Cam). Type:Chain • Grind:585 Series • Units:Kit. ✓ All Major Credit Cards. ✓ Installer must check coil bind, valve to valve clearance and valve to piston clearance.

H11-120 be used Cams for Dyna 06 and Twin Cam 07-10 are for use with models with hydraulic tensioner chain-drive system; cams 510C and 551C are bolt-in applications, all others require high-lift valve springs Made in the U.S.A. NOTE: Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance 585C Designed for 88 in.

The 585 cam is designed for 88 to 95 inch engines with compression ratios from 10 to 10.5:1 and 100 and 107 inch engines at 9.7:1 to 10.5:1 compression. Many riders are leery of the stock chain cam drive in late model big twins. mt is true that the early version introduced in 1999 was often not well suited to high performance applications, the later version introduced in the 2006 Harley-Davidson? Dyna? model, and later incorporated in all big twins in the 2007 model year, was vastly improved. The new chain drive with hydraulic chain tensioners works well for all but the most demanding high performance applications. That's why S&S offers our most popular grinds for 2007-16 big twins in a chain drive version. One advantage to a chain drive cam set is the expense.

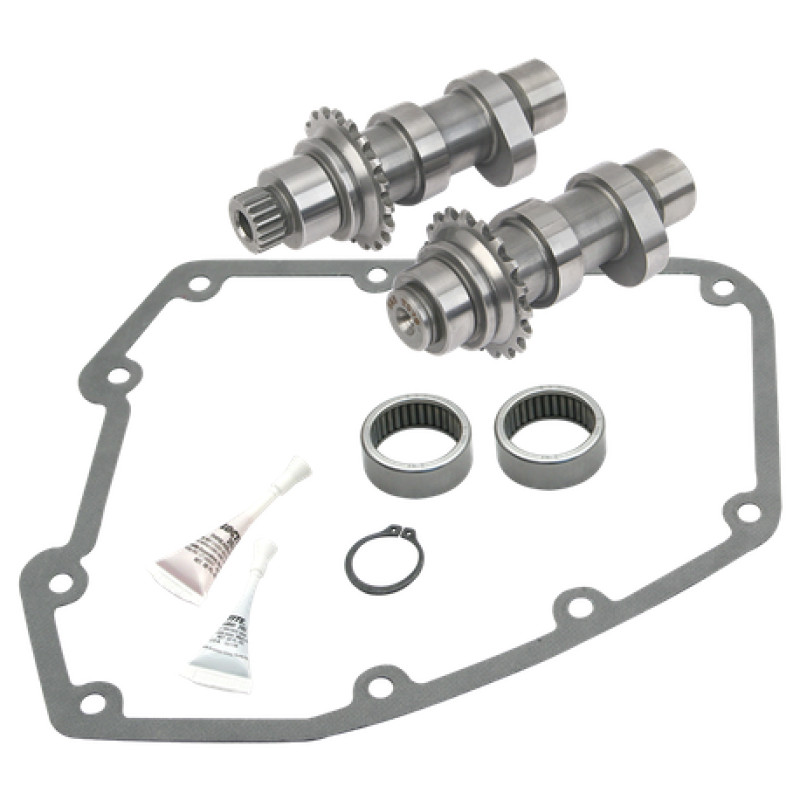

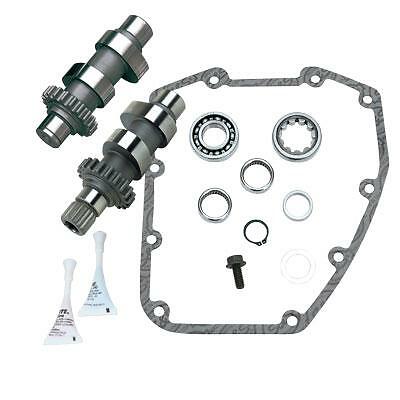

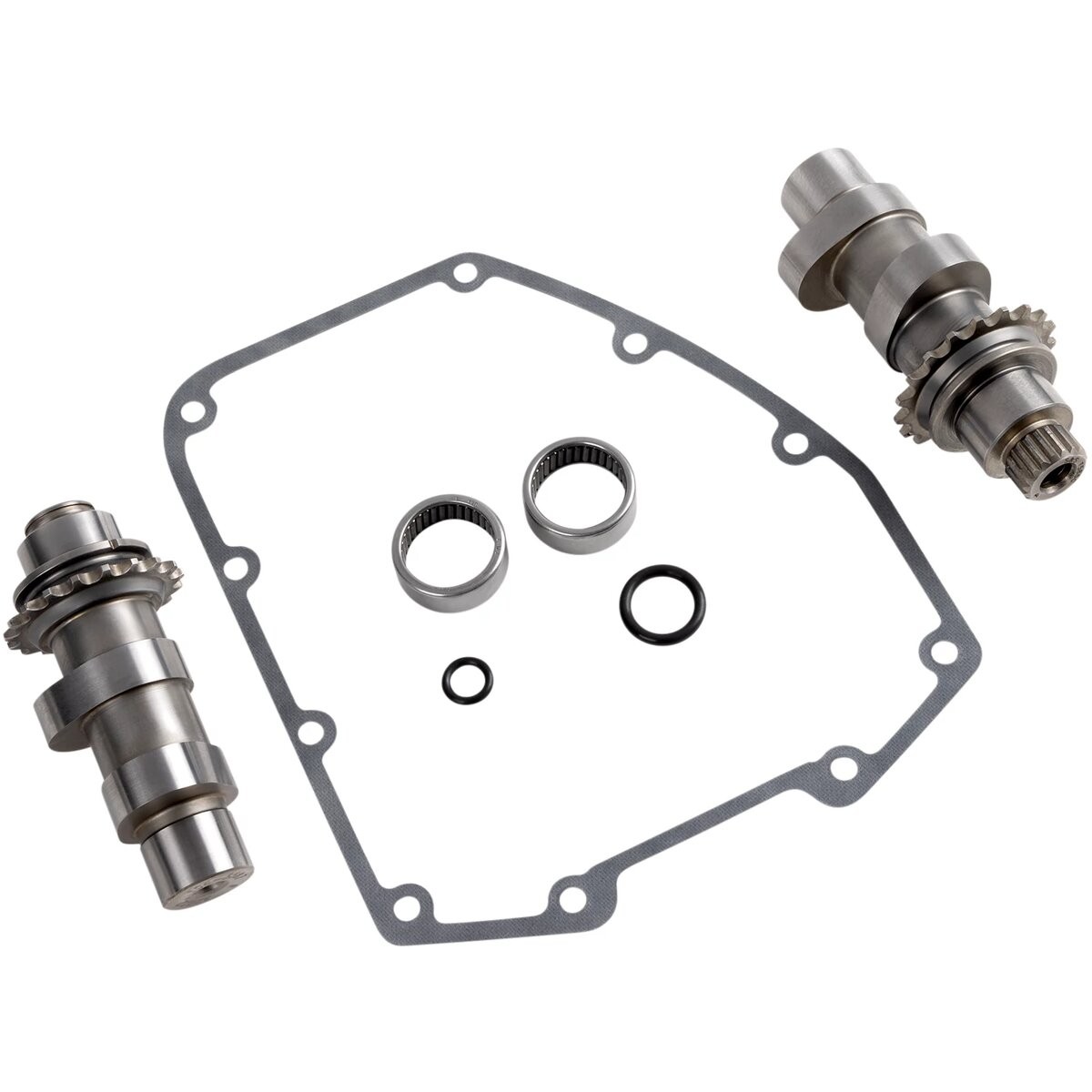

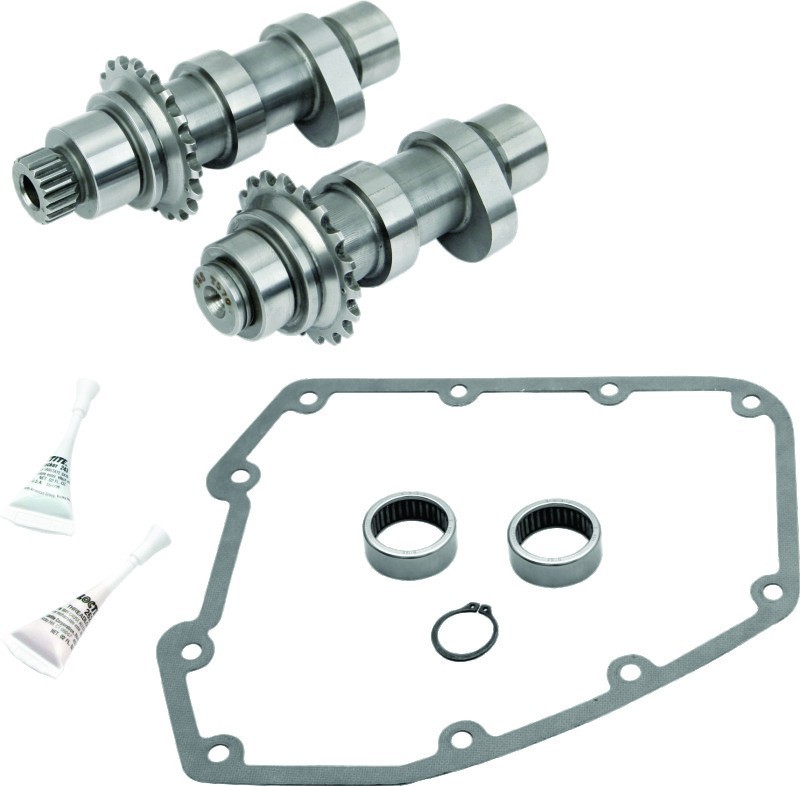

Kits include cams, inner gears, outer drive gears, inner and outer bearings, gasket and instructions.

This setup is ideal for riders seeking increased performance without the expense of replacing the entire drive system. The kit includes cams, gearcover gasket, cam bearings, and detailed instructions for straightforward installation, helping you achieve a seamless upgrade to your Harley-Davidson big twin motorcycle.

585C Standard Chain Drive Camshaft Kit. Experience has shown that the chain drive with hydraulic chain tensioners works well for all but the most demanding high performance applications. Harley Davidson FLD Dyna Switchback 2012-2016.

Designed for 88" to 107" engines with compression ratios from 10.0:0 to 10.5:1 and 100" and 107" engines with compression ratios 9.7:1 to 10.5:1, Strongest from 3500-6000 rpm for 88" to 103" engines and 2500-5000 rpm for larger engines, Made in the USA, Installer must check coil bind, valve to valve clearance and valve to piston clearance.
