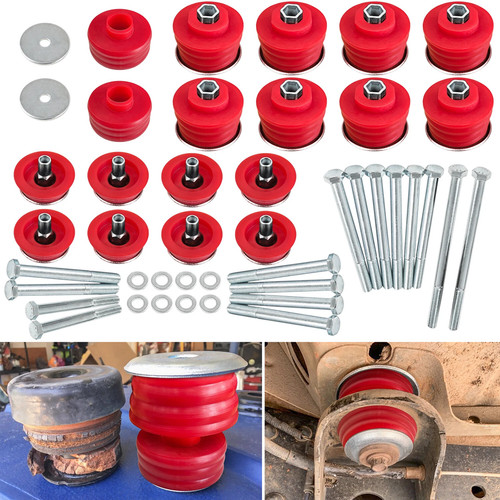

KF04060BK Body Cab Mount Bushing Kit for Ford F250 F350 Super Duty 2008-16 2/4WD

Fitment:

Top Quality Polyurethane Body Cab Mount Kit Replace For Ford F250 Super Duty and F350 Super Duty 2008 2009 2010 2011 2012 2013 2014 2015 2016 2WD/4WD.

Practical Function:

Replace the deteriorated and worn-out OEM rubber body mount bushings, sleeves and hardware, fixing the body mount issue and reducing equipment wear, vibration and noise. Improve your riding experience.

Outstanding Performance:

This kit provides necessary rigidity and ample resilience to keep everything quiet. Improves handling and performance, perfect for both off-road and street use.

Premium Material:

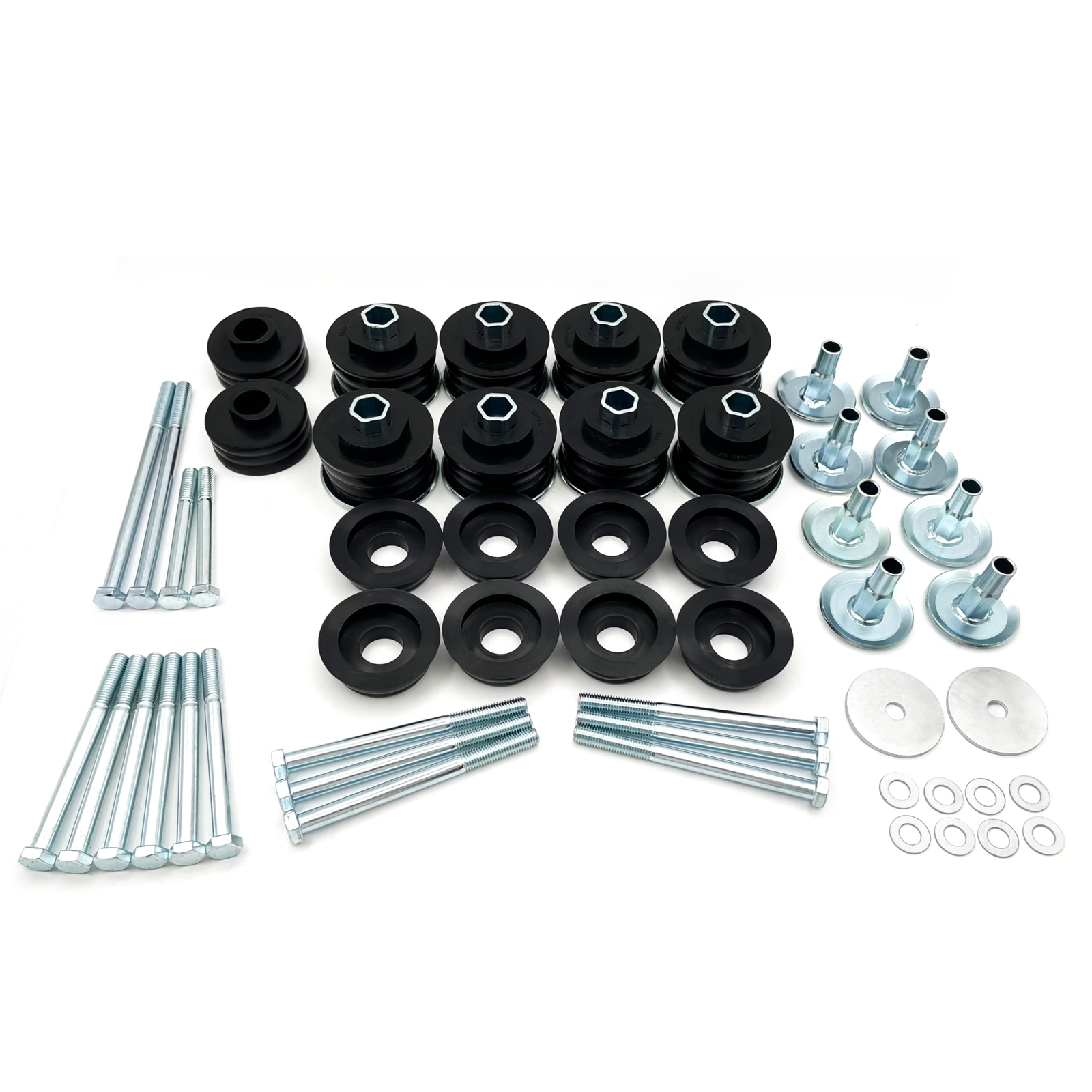

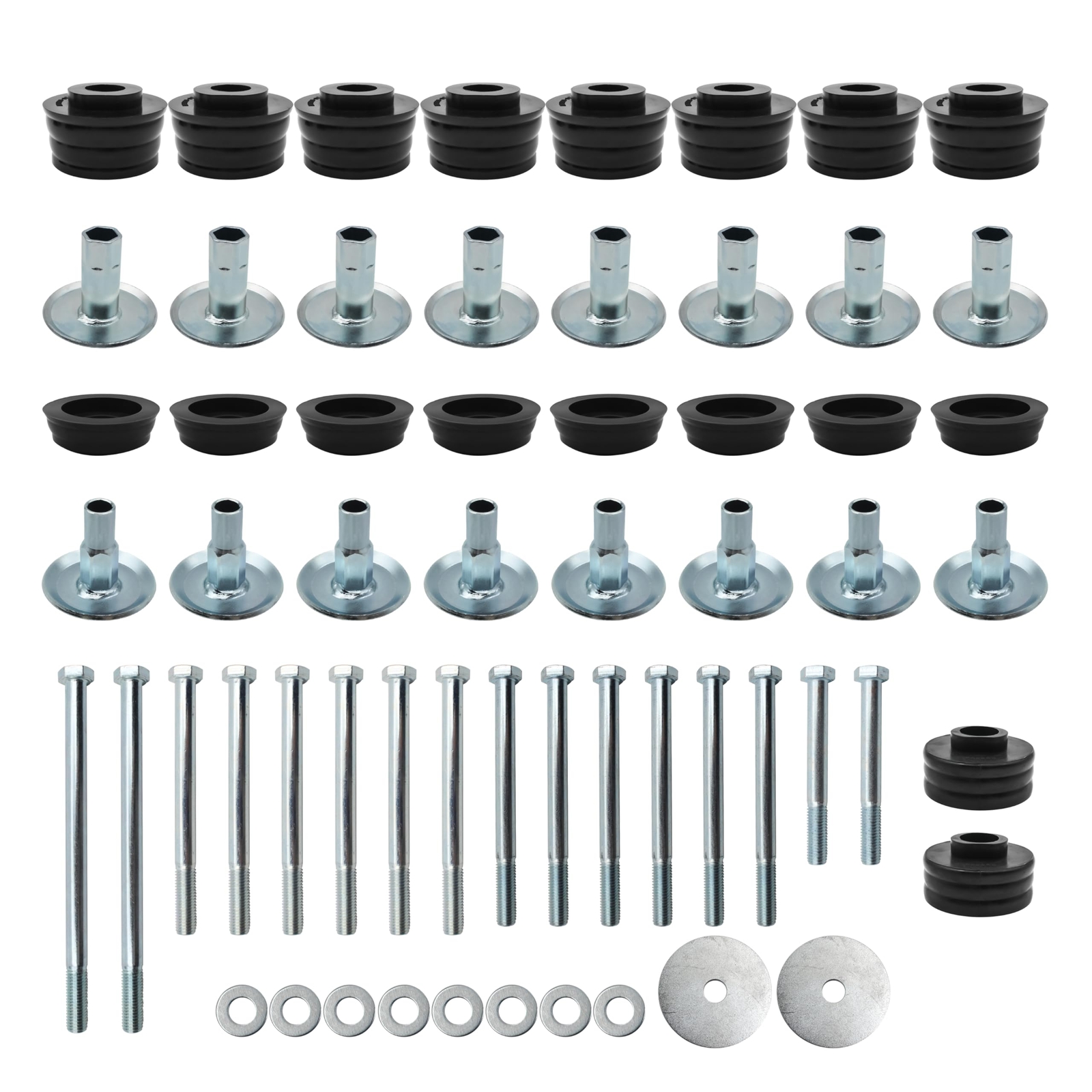

The bushings are made from high quality polyurethane and constructed with a slick black finish, anti corrosion and resistant to vehicle fluids and road grime. Also includes zinc plated steel sleeves and hardware in package.

Simple Instruction:

KF04060BK Polyurethane Cab & Body Mounts Installation Instruction

1. Remove the bolts from the passenger side body mounts and loosen the driver’s side body mount bolts, but do not remove them.

2. On the front radiator support bolts, you will need to remove the upper nut on the inside of the radiator support and then you can loosen the lower bolt. A 24” extension with a universal swivel and an 18mm socket works well for this on most trucks. You might need to have someone hold the mounts with large adjustable pliers while you loosen the bolts. On some models, the front bumper must be removed to access the bolts.

3. Using a floor jack, carefully place the jack on the passenger side floorboard support mounts and lift high enough to remove the body mounts. Make sure the cab is securely supported with jack stands before working under the truck or removing any mounts.

4. Remove and replace the passenger side body mounts one at a time. Take care not to mix up the pieces. The upper and lower mounts are clipped together on the frame and you may have to use a pair of large screwdrivers to pry the mounts off.

5. Install kit body mounts on kit steel mounts, Assemble the kit components.

6. When installing the new assemblies onto the frame, make sure they are seated into the frame and centered in the hole.

7. Install kit body mount M04060-02 on the top, and kit body mount M04060-01 along with kit washer S10126 on the bottom. Run the bolt in from the bottom and start it but don’t tighten it yet. Start the upper nut on the radiator support but don’t tighten it yet. Working on one position at a time, install kit body mount M04060-02 on the large kit steel top half and kit body mount M04060-01 on the small kit steel bottom half. Start the bolts but do not tighten.Repeat steps 1 through 10 for the driver’s side.

8. Tighten all bolts in an alternating cross pattern (as with tightening wheel lug nuts) until you can feel the stock metal shells seat together (around 45-55 ft. lbs.). Tighten the top nut on the radiator core support mount last.

9. Reinstall the body cab plugs, and if removed, reinstall the seat, trim, and upholstery.

10. Reinstall the airbag fuse and reconnect the battery.

•
