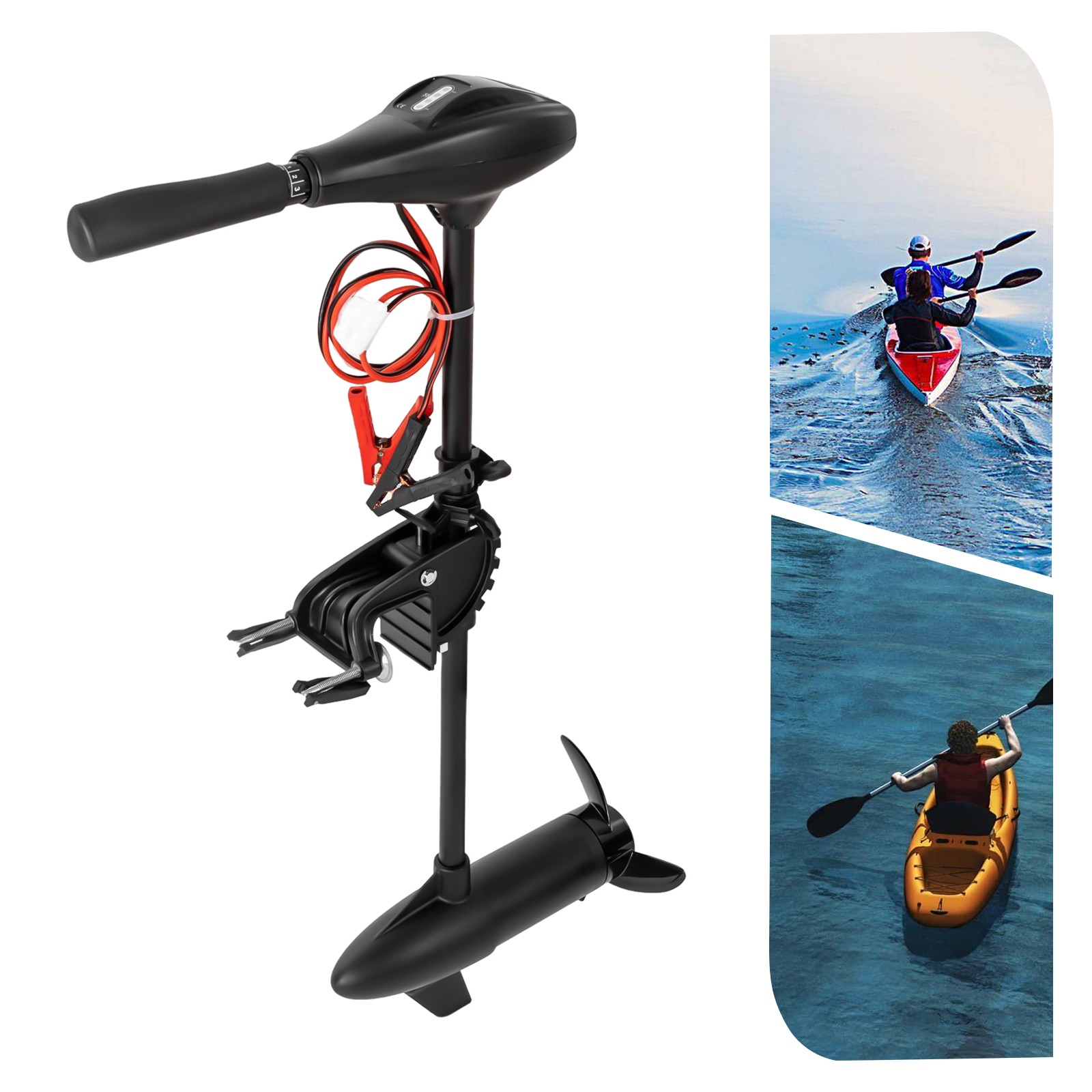

58LB 12V Thrust Electric Outboard Trolling Motor Fishing Boat Engine Motor NEW

Package Included

1*Electric Outboard Engine

1*Chinese Manual

Specifications

Material: Nylon, Aluminum, Copper

Color: Black

Style: Modern

Surface Treatment: Spray Molding

Assembly Required: Yes

Battery Required: Yes (Battery Excluded)

Speed Regulation: 5 Gears Forward, 3 Gears Reverse

Number of Propeller Blades: 3

Motor Type: Pure Copper Motor

Control Handle: Retractable

Rated Current: 51A

Rated Power: 612W

Thrust: 58lbs

Noise: 50dB

Rated Speed: 1700RPM

Maximum Speed: 8km/4.97mi/h

Load Capacity: 500kg/1102lbs

Battery Recommendation: 12V 150A Battery (Excluded)

Applicable Ship Length: ＜3m/9.84ft

Gross Weight: 11.75kg/26lbs

Net Weight: 9.85kg/21.7lbs

Handle Length: 47-60cm/18.5-23.62in

Bottom Length: 40cm/15.74in

Propeller Diameter: 22cm/8.66in

•

•

•

•

•

•

•

•

58LB 12V Thrust Electric Outboard Trolling Motor Fishing Boat Engine Motor NEW

Specifications

Material: Nylon, Aluminum, Copper

Color: Black

Style: Modern

Surface Treatment: Spray Molding

Assembly Required: Yes

Battery Required: Yes (Battery Excluded)

Speed Regulation: 5 Gears Forward, 3 Gears Reverse

Number of Propeller Blades: 3

Motor Type: Pure Copper Motor

Control Handle: Retractable

Rated Current: 51A

Rated Power: 612W

Thrust: 58lbs

Noise: 50dB

Rated Speed: 1700RPM

Maximum Speed: 8km/4.97mi/h

Load Capacity: 500kg/1102lbs

Battery Recommendation: 12V 150A Battery (Excluded)

Applicable Ship Length: ＜3m/9.84ft

Gross W eight: 11.75kg/26lbs

Net Weight: 9.85kg/21.7lbs

Handle Length: 47-60cm/18.5-23.62in

Bottom Length: 40cm/15.74in

Propeller Diameter: 22cm/8.66in

Clamping Space: 7cm/2.75in

Product Length: 1.05m/3.44ft

Package Size: 103*48*16cm/40.55*18.9*6.3in

Package Included

1* Electric Outboard Engine

1*Chinese Manual

Key Features

Multi Gears: It has 5 forward gears and 3 reverse gears, so it can smoothly switch speeds together with cruise control during driving.

Highly Efficient: The electric outboard engine adopts a 612W pure copper motor with a speed of up to 1700r/min, combined with a 8.66in three-bladed propeller, greatly improving work efficiency.

Powerful Carrying Capacity: Its powerful thrust (58 pounds) and carrying capacity (1102 pounds), with a maximum speed of 4.97mi/h (speed varies depending on environment, water, and ship load), can be used by multiple people.

Power Monitoring: The top of the cover displays the battery level in real-time, allowing you to check the power condition at any time and prepare for charging in advance to avoid running out of battery midway.

Adjustable Design: The height and angle of the suspension bracket can be adjusted, making it well-suited for personnel at different heights to navigate the ship. In addi tion, the retractable control handle allows you to choose the right length according to your operating habits.

Silent Operation: Compared to fuel-powered outboard engines, this electric engine has lower noise(50dB), allowing you to enter fishing spots quietly without disturbing the school of fish and easily return with a full load!

Durable & Sturdy: The high-strength nylon cover and aluminum body not only maintain a lighter overall weight but also consider durability, allowing you to explore the water with confidence.

Electric Drive: Electric outboard engines are lighter and more convenient, avoiding the problem of exhaust emissions, and are a more environmentally friendly and efficient way to improve ship speed.

Details

Anti-slip Handle: The handle adopts an ergonomic design that is easy to grip, while the uneven surface is designed to be anti-slip .

Installation Bracket: It has an installation bracket on the main pole, which is used to firmly fix the engine on the ship.

Connectors: The connectors are larger and more durable, especially suitable for connecting large batteries (not included), allowing your engine to last longer.

Application

It is suitable for small boats within 9.84ft in length and weighing 1102 pounds or less and is widely used in fishing, aquaculture, outdoor tourism, and other fields.

How to Install

• Remove the sticker from the spring on the handle.

• Align the handle with the interface on the inner shell of the handle.

• Press the handle spring with one hand and push the handle in with the other hand. After hearing the creaking sound, install the handle.

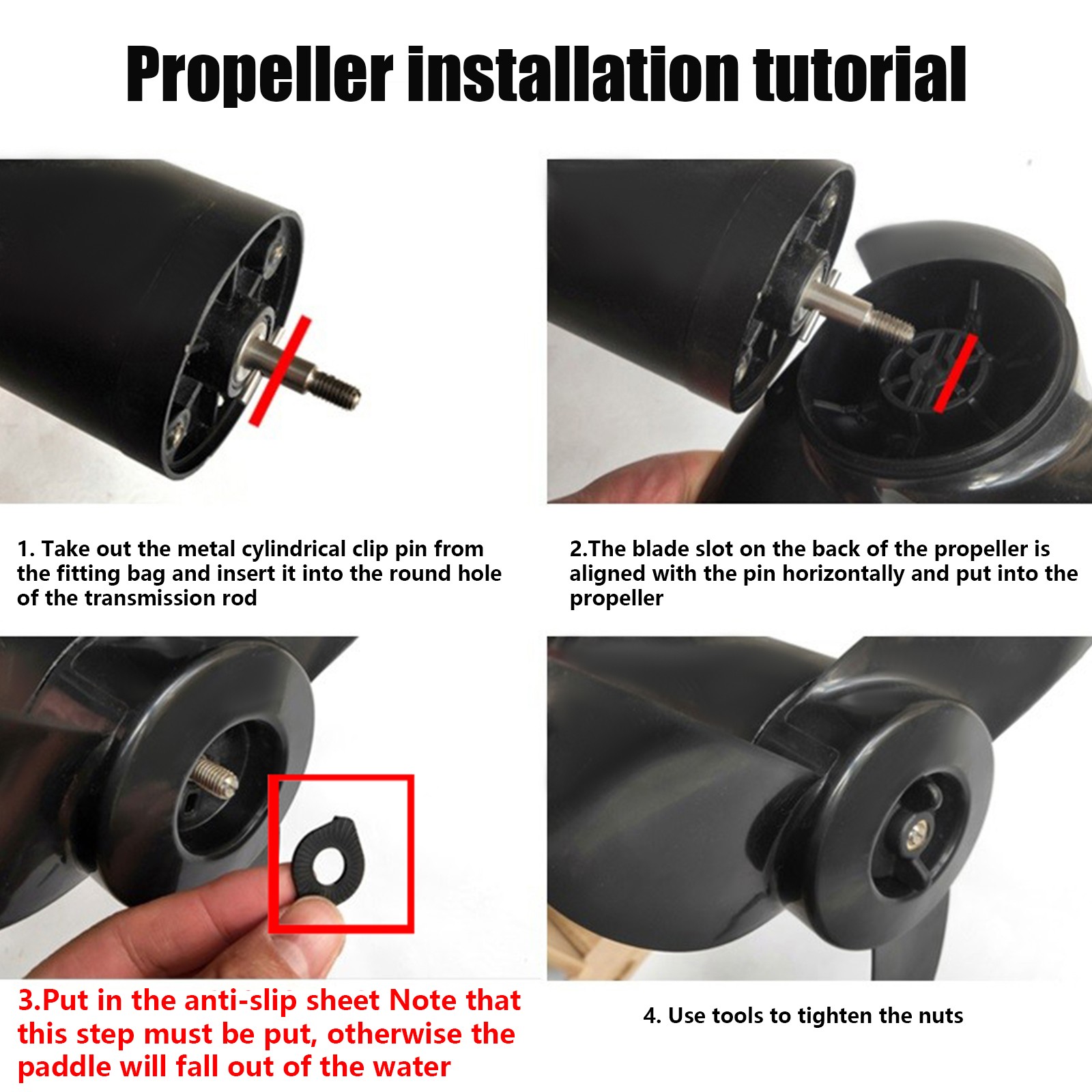

• Take out the cylindrical locking pin and insert it into the circular hole of the transmission rod (the lengths at both ends need to be consistent).

• Align the back of the propeller with the slot and pin horizontally, and push it to the top.

• Insert the fish fins, then tighten the nuts to complete the installation.

• Remove the heat sink from the box and insert it into the heat sink slot.

• Insert the attached screw into the screw hole of the heat sink and place the nut on the other end. Hold them down.

• Then tighten the screws with a Phillips screwdriver.

• The installation is complete.

Notes

• Please carefully read the manual and strictly follow the precautions to have a better experience.

• Please do not start this product on the shore, any testing and use should be carried out in water.

• Please do not switch gears too quickly, but slowly shift from one gear to another.

• This product needs to be connected to a battery for use (not included), please pay attention to electrical safety. A 12V, 150A battery is recommended.

• After using this product in saltwater, please clean the body with fresh water on time to reduce the possibility of corrosion. For longer use, please regularly replace the propeller, remove debris around the propeller, charge the battery, and disconnect the power when not in use.

• Please note that the speed may vary depending on the environment, water, and vessel load.

• If the hull is relatively soft, please prepare a marine motor bracket or lifting plate (not included) to securely secure this product.

• Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
