Stainless Ducati Supersport Oil Cooler Hose Lines Kit 91-99 600/750/900SS/SP GLD

New Custom Oil Cooler Stainless Line Kit 91-99 Ducati 600/750/900SS/SP Supersport. Gold Fitting Connectors

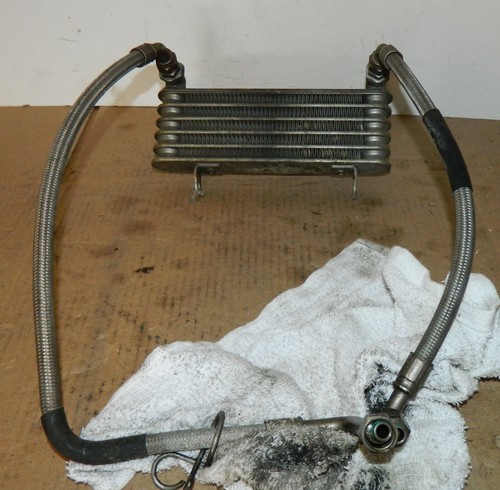

Refer to Picture #2 for OLD Line Reference. These New Lines were Produced from these Templates in Picture#2

Upgrade your old brittle Ducati Supersport Oil Cooler lines and add some High Performance Style to your Ride.

Each Hose is Made from High Quality Materials and is Built to Last by a Certified FAA Aircraft Mechanic.

Included in your Kit

x1 Custom Built Engine to Oil Cooler Line

x1 Custom Built Oil Cooler to Engine Line

x4 -6an to 14mm x 1.5 Metric Hose to Engine / Oil Cooler Adapter

x4 Aluminum Sealing Washer

x1 Tube Thread Seal

Details of your kit Below:

1. -6 AN Braided Stainless Steel Line Hose 1500 PSI

#6 Stainless Steel Braided Hose Specs:

0.34 Inside Diameter

0.55 Outside Diameter

1500 Max PSI

This hose is made of durable CPE synthetic rubber tube bonded with a woven Nylon Braid and secured by a 308 Stainless Steel outer braid. This hose is made to resist extreme heat, abrasion and corrosion. It offers superior flexibility & bending with maximum vacuum service. Operating temperatures are from -40 Degree F to +350 Degree F. Compatible with racing fuel, pump gas, fuels with ethanol, alcohol based fuels, motor oil, transmission fluid & coolant.

2. -6 AN Straight Swivel Hose End Fitting Specs:

Bright Gold Anodize

37 Flare Seal JIC / AN

Made From Lightweight 6061 Alloy Aluminum

Designed For Smooth Flow, Easy Assembly & Longer Life

Completely Reusable

3. -6an 45 Degree Swivel Hose End Bright Gold Anodize Aluminum Fitting Performance Specs:

Bright Gold Anodize

37 Flare Seal JIC / AN

Made From Lightweight 6061 Alloy Aluminum

Designed For Smooth Flow, Easy Assembly & Longer Life

Completely Reusable

One Piece billet tube construction avoids leaks like other fittings with braze joints

All swivel fittings use Viton O-rings to avoid a leaky swivel joint

4. -6 AN Male To 14mm x 1.5 Male Fitting Specs:

Made of lightweight aluminum then bright dip black anodized

This fitting is designed for leak proof sealing with any manufacturers fittings

5. 14MM Aluminum Sealing Washers

6. Thread Sealing Compound.

Current Handling Time is 5 Days Due to Assembly Process.

Some Slight Color Variation between fitting may be present due to Manufacturing Tolerances.
