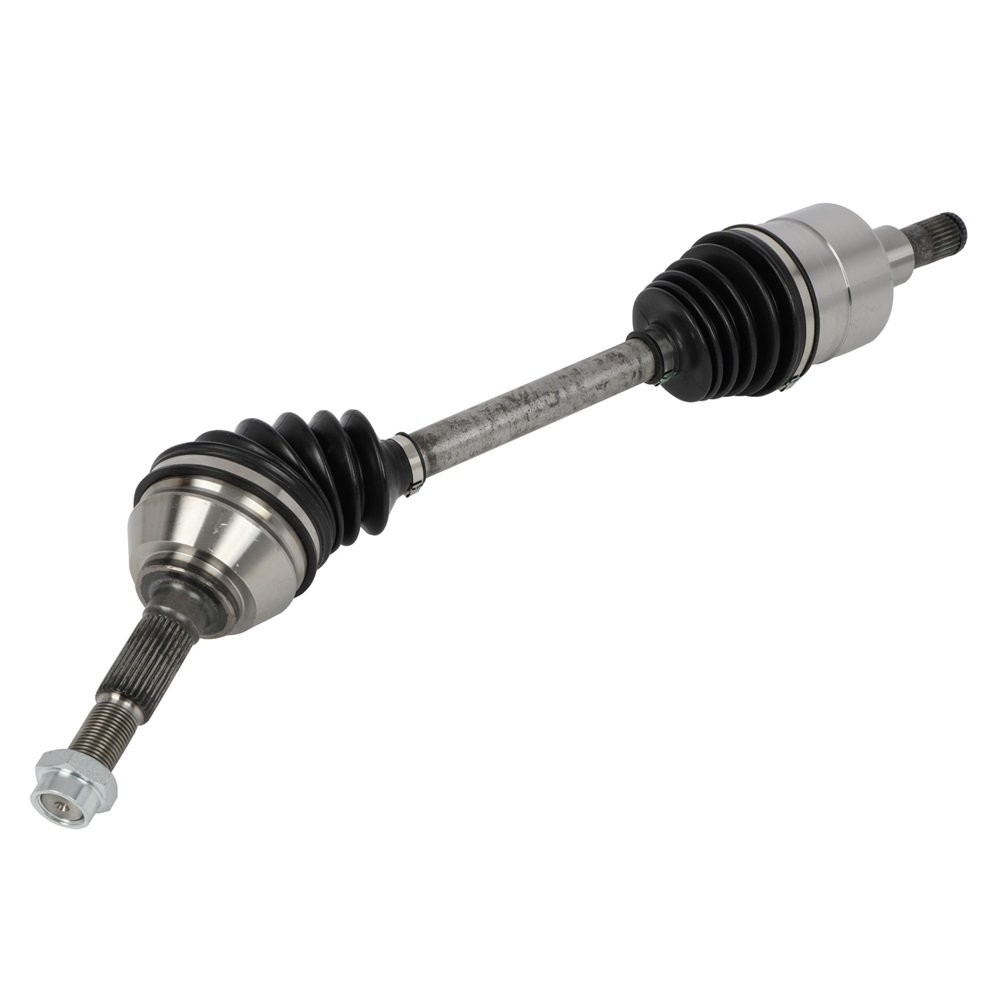

Front Left&Right CV Axle Assembly For Chevrolet Trailblazer 2002-2009 All Engine

• CV Axle Installation Guide (Generic Steps)

•

• ?? Important Safety Notice:

•

•

• Professional Recommendation:? CV axle replacement involves heavy components and precise torque specifications. We strongly recommend this job be performed by a qualified mechanic with proper tools (jack stands, torque wrench, etc.).

•

•

• Check Fitment:? Verify this axle matches your vehicle’s Make, Model, Year, and Drivetrain (FWD/RWD/AWD) before starting.

•

• Refer to your vehicle’s service manual for exact steps and torque values.

?

• ?

•

• Tools Needed:

•

•

• Floor jack & Jack stands

Front Left&Right CV Axle Assembly For Chevrolet Trailblazer 2002-2009 All Engine

CV Axle Installation Guide (Generic Steps)

?? Important Safety Notice:

• Professional Recommendation: ? CV axle replacement involves heavy components and precise torque specifications. We strongly recommend this job be performed by a qualified mechanic with proper tools (jack stands, torque wrench, etc.).

• Check Fitment: ? Verify this axle matches your vehicle’s Make, Model, Year, and Drivetrain (FWD/RWD/AWD) before starting.

• Refer to your vehicle’s service manual for exact steps and torque values.

?

?

Tools Needed:

• Floor jack & Jack stands

• Wheel chocks

• Socket set & Breaker bar

• Torque wrench

• Pry bar

• (Optional) Ball joint separator

Installation Steps:

1. Preparation & Removal

• Park on a level surface, engage parking brake, and chock the rear wheels.

• Loosen the lug nuts and front axle nut (while the vehicle is on the ground).

• Lift the vehicle securely with a jack and support it with jack stands. Remove the wheel.

?

2. Disassemble Suspension

• Disconnect the tie rod end from the steering knuckle.

• Disconnect the lower ball joint or control arm to allow the knuckle to swing free.

• Remove the old axle nut and any retaining clips.

?

3. Remove Old Axle

• Carefully pry the outer CV joint out of the wheel hub.

• Place a drain pan under the transmission. Use a pry bar to gently pop the inner joint from the transmission/differential. Avoid damaging the transmission seal.

?

4. Compare & Install New Axle

• Critical: ? Compare the new axle with the old one to ensure identical length and spline count.

• Inner Joint: ? Align the splines and push the new axle into the transmission until you hear/feel the circlip snap into place. Gently tug to confirm it is locked.

• Outer Joint: ? Slide the axle through the hub assembly.

?

5. Reassembly

• Reconnect the ball joint and tie rod to the knuckle. Tighten fasteners to manufacturer spec.

• Install a new axle nut? and hand-tighten (do not fully torque yet).

• Reinstall the wheel and lower the vehicle to the ground.

?

6. Final Torque

• With the vehicle’s weight on the ground, use a torque wrench to tighten the axle nut to the factory-specified torque.

• Re-torque the lug nuts in a star pattern.

?

7. Post-Installation Check

• Check transmission fluid level and top off if necessary.

• Perform a short test drive. Listen for clicks on turns (indicating improper seating) and check for vibration.

Item Specifics

Brand AM-Mortors2020

Manufacturer Part Number AM845461CN

Interchange Part Number 66-1345 661345

OE/OEM Part Number 60-1345 601345,NCV10248

Part Type CV Axle Shaft Kit

Placement on Vehicle Front Left Right
