Single 1 DIN Carplay Car Stereo Bluetooth Radio FM USB SD In-Dash Player AUX SD

Description

Functions in detail

1 DIN car radio

MP3 car radio in 1DIN format without CD drive with illuminated buttons and ergonomic rotary knob for easier operation at the wheel.

Bluetooth hands-free function and music playback via A2DP

Hands-free system for your mobile phone: So that you can always drive safely and flexibly, this car radio offers you the function of making wireless calls using the microphone on the radio and the speakers in the car. All you have to do is connect your Bluetooth mobile phone to the radio via Bluetooth!

You can also play music from your cell phone, smartphone, tablet or Bluetooth-enabled MP3 player with A2DP support directly through the speakers in the car, without having to copy files or make unnecessary cabling.

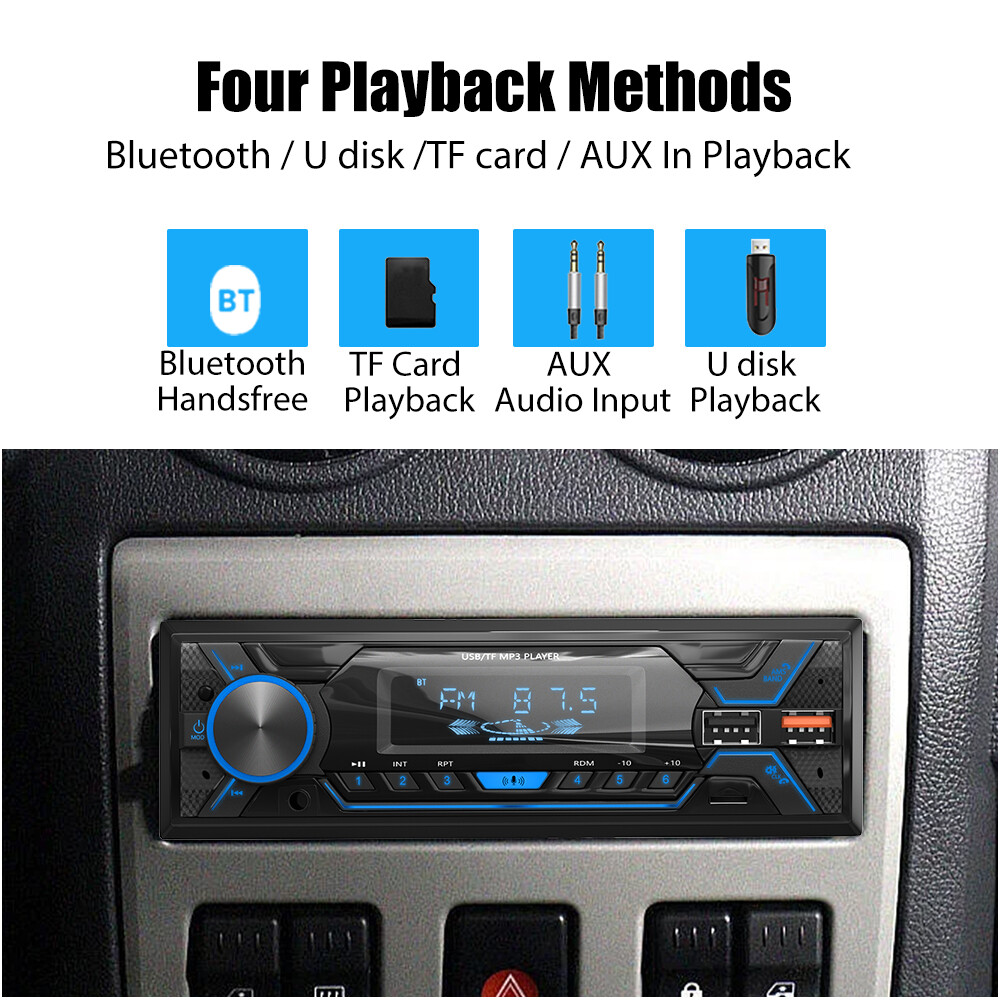

Multimedia

The TF card slot and the USB port are suitable for storage media with a size of up to 32 GB each. So you can use up to 32GB of music on the device through flash media.

7 lighting colors

The car radio has 7 LED lighting colors that you can set as you like.

FM radio with AMS

FM stereo radio

Automatic station search (AMS)

18 FM station presets

ID3 tag display

Artists and music titles are displayed on MP3s with stored ID3 tags.

AUX connection for external audio source

Standard 3.5mm jack connection for external audio sources. Simply connect your iPod, MP3 player, smartphone or tablet to the jack plug and listen to music directly from the external device through the speakers in your car.

Technical specifications

General

Direct mains voltage: 12V DC

Impedance: 4 ohms

Color: black, high gloss

Lighting colors: blue, red, yellow, purple, green, white, turquoise

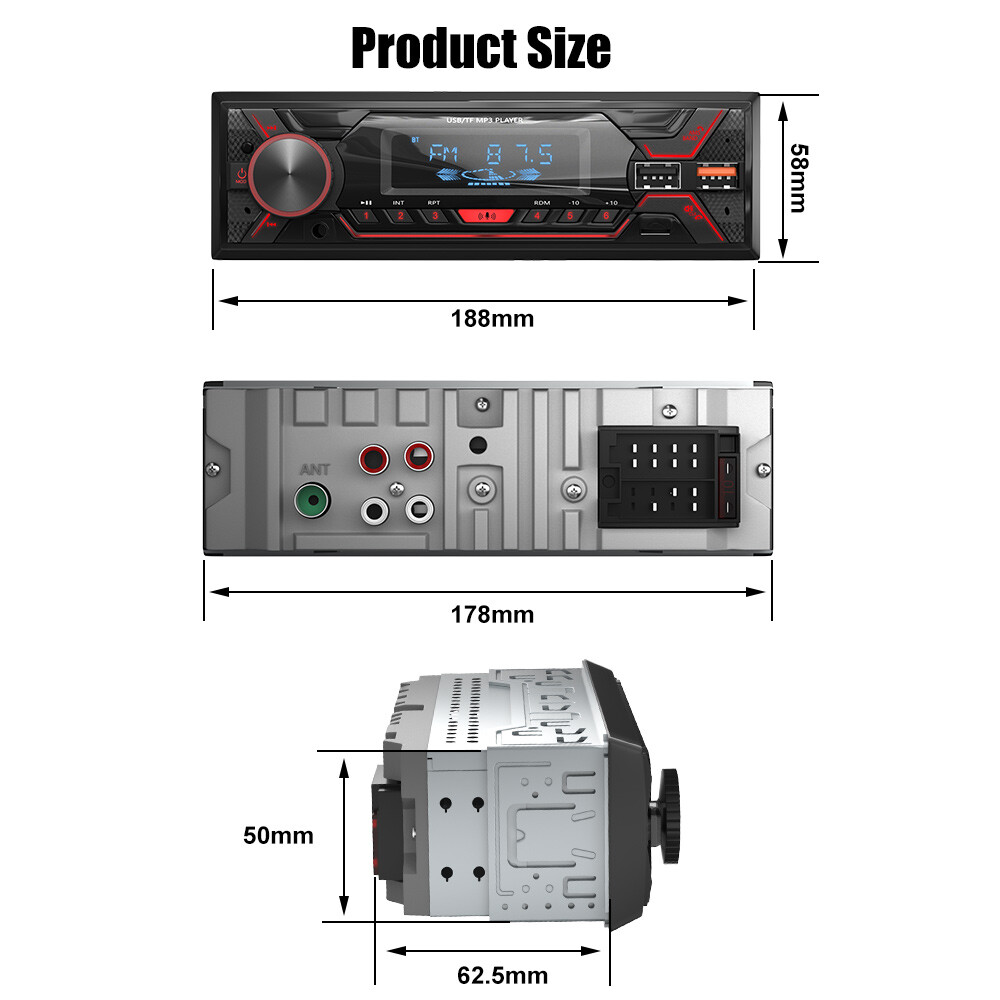

Installation size: 1 DIN(178mm x 50mm)

Screen

Type: LED segment display (Digital Segment Display)

Size: approx. 7.2 x 2.2 cm

FM Tuner Part

Frequency range: 87.5-108 MHz

IF range: 10.7 MHz

Sensitivity: 5 dB

S / N ratio: 45 dB

Stereo separation: 26 dB (1KHz)

Antenna resistance: 75 ohms

Audio

Frequency range: 20Hz - 20KHz

Output: for 4 loudspeakers

loudspeaker impedance: 4 to 8 ohms

Output power: Max 4x60W

Supported Media:

Media: TF and USB

Formats: MP3 (with ID3 tags) and WAV

USB Port

TYPE A, standard

Supported size: max. 32 GB

File system: Fat32

TF Card Slot:

TYPE: TF

Supported size: max. 32 GB

File system: Fat32

Bluetooth

Bluetooth version: 4.0

Profiles: A2DP, AVRCP

Frequency range: 2.4GHz spectrum

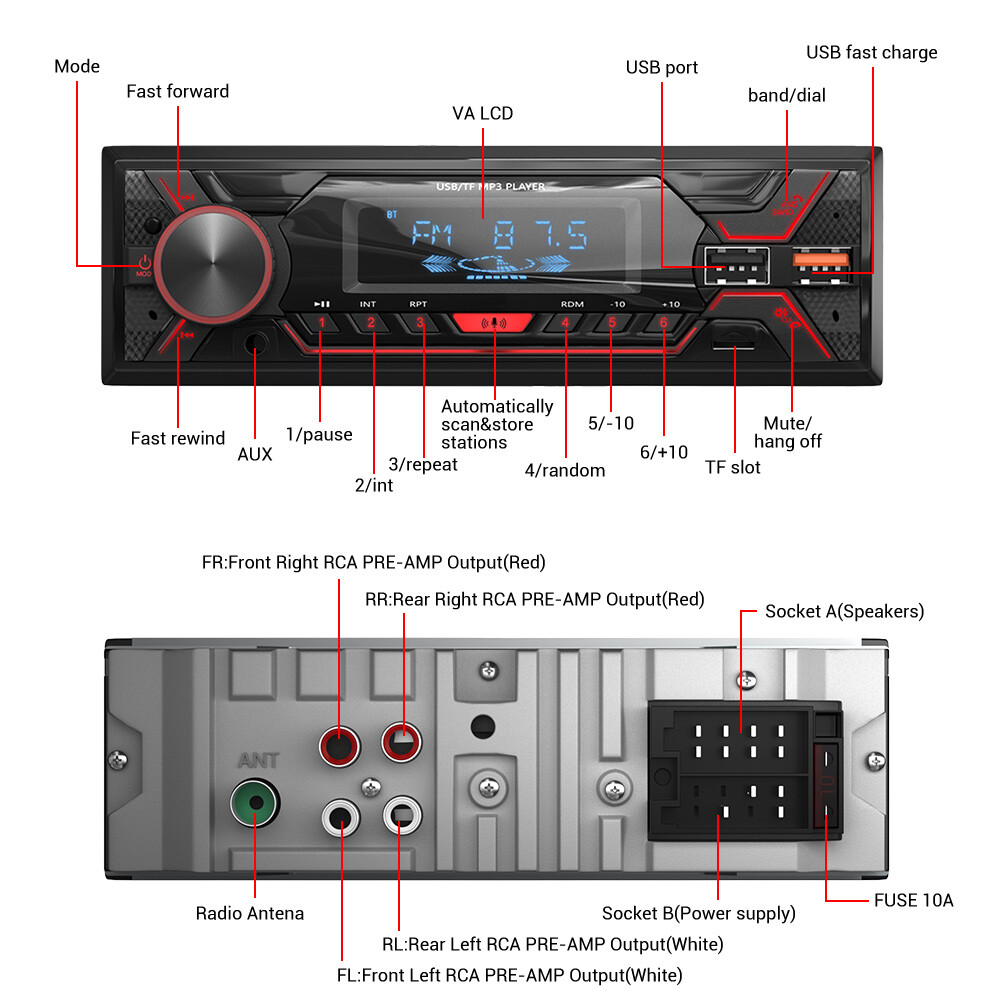

Rear Connections

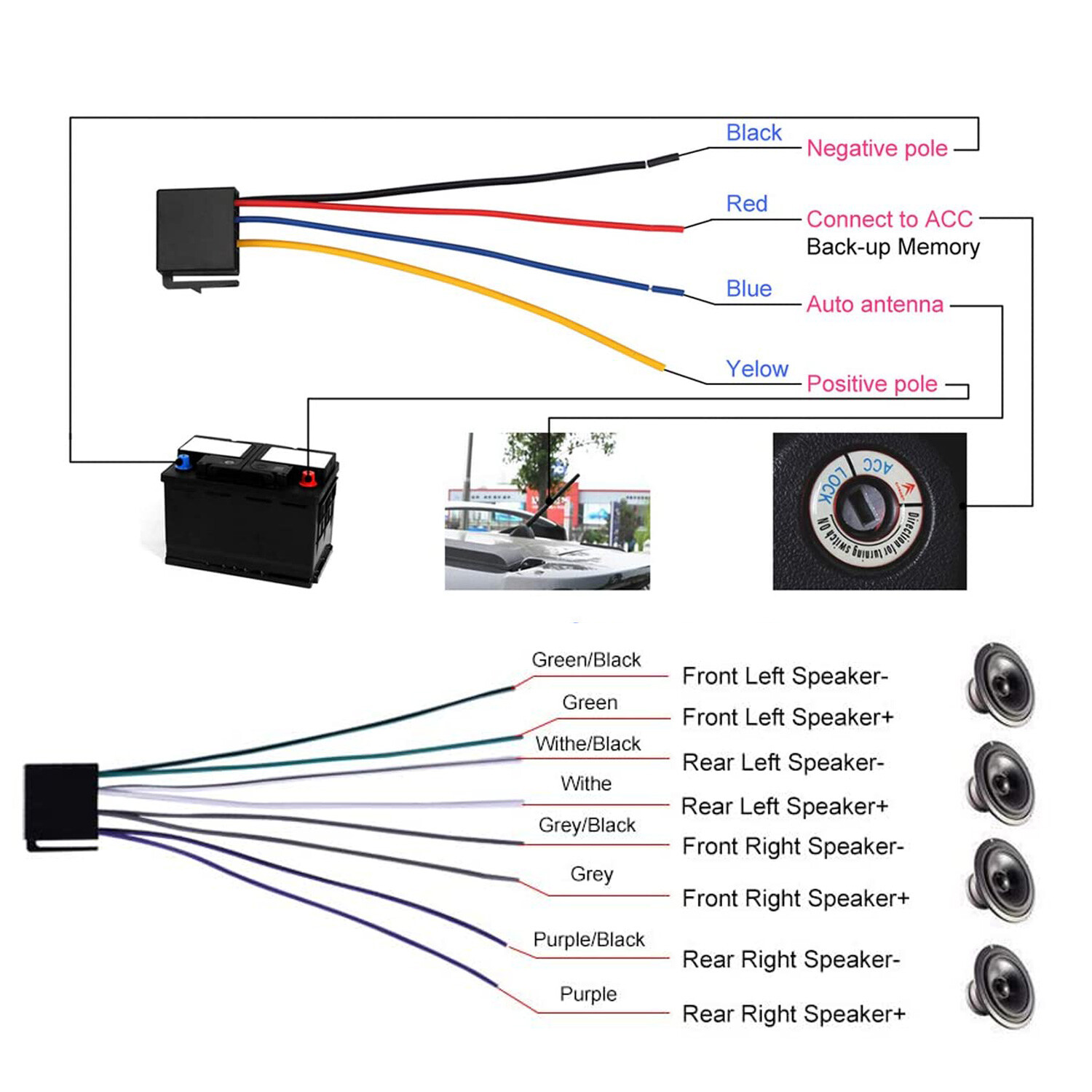

ISO connection socket

Antenna connection

4CH audio output

Front Connections:

1x TF card slot

2x USB connection

1 x AUX-IN

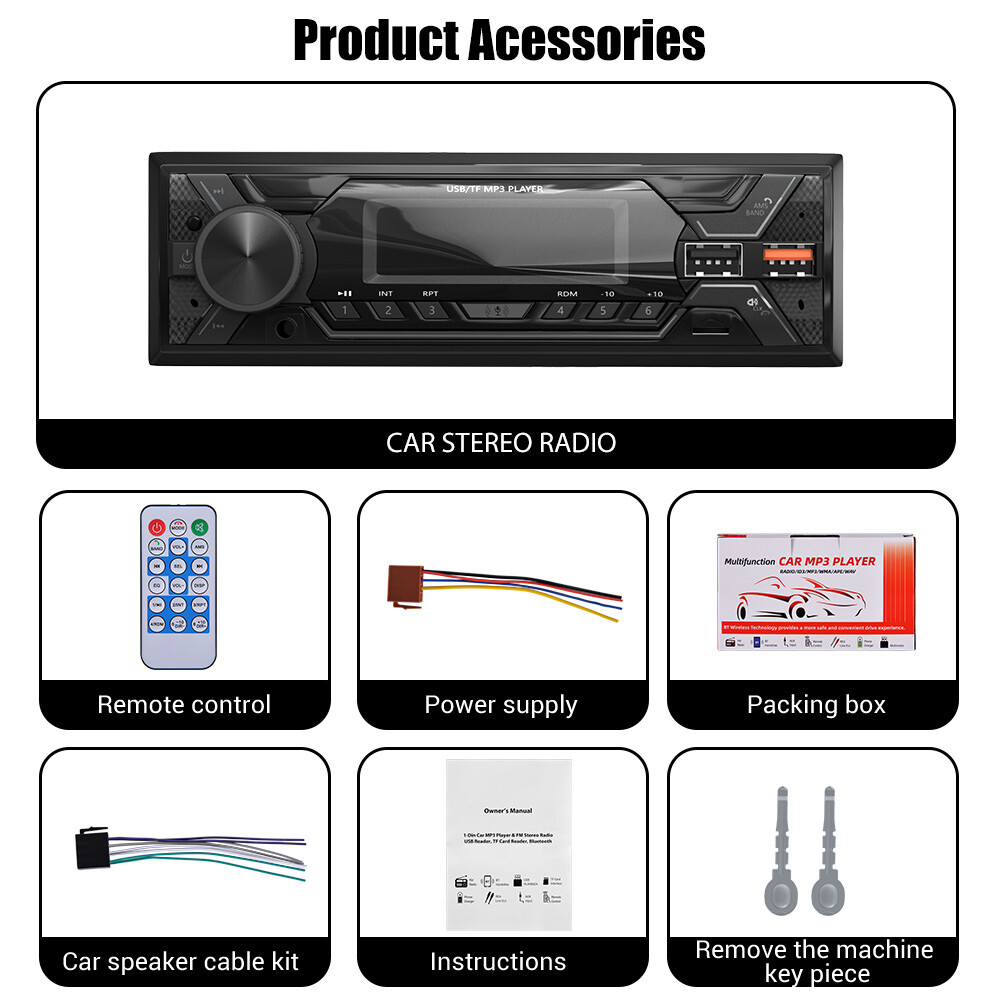

Delivery content:

1x 1 DIN car radio

1x Remote Control (without battery)

1x ISO connection Cable Set

1x Assembly Instructions
