GY6 180cc Engine Electric/Kick Start Build-in Reverse for 200cc ATV Go Kart UTV

4 Stroke GY6 180cc Engine Motor with Auto Centrifugal Clutch Transmission Electric/Kick Start, Build-in Reverse for 180cc 200cc ATVs Go Karts UTVs

Description

Model Number: #308-999045

Item Condition: Brand New

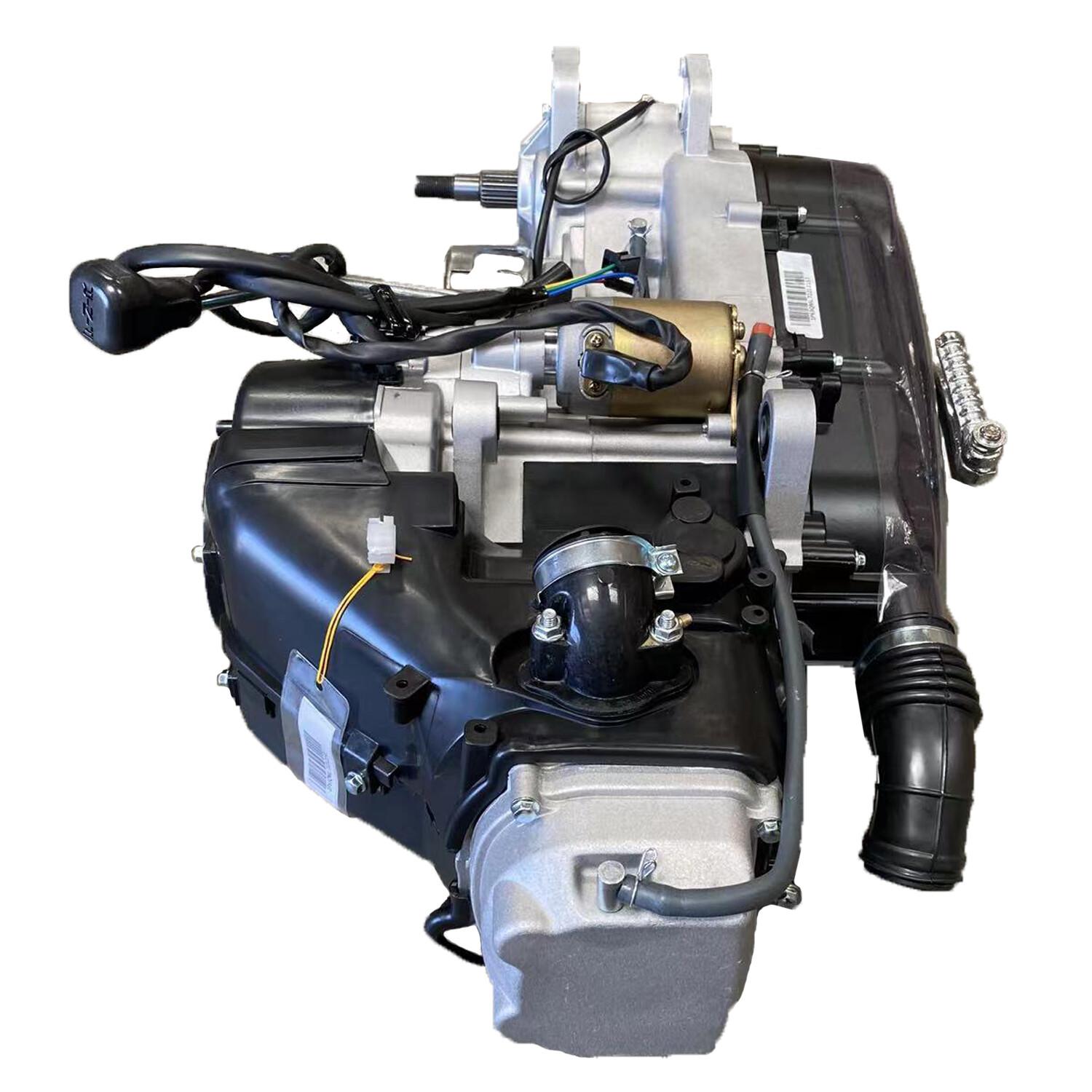

Color: Black +Silver Brand New High Quality GY6 180cc Short Case Engine Motor, Use 743

Belt, 4 Stroke Oil Cooled and Forced Air Cooled Horizontal Engine, Auto

Centrifugal Clutch Transmission, Electric/Kick Start, Build-in Reverse.

180cc-200cc ATVs, UTVs and Go Karts with GY6 engines are compatible

with this engine. It also fits for most China made 180cc 200cc engine

vehicles.

Fits X-PRO bike models:

ATV-P005, CT200-1(Cougar 200) 200cc ATVs

ATV-P010, CRT200-4(Panther 200) 200cc ATVs

ATV-P013, CT200-1(Jaguar 200) 200cc ATVs

PLEASE NOTE:

• Please measure the physical size to be sure you get the correct one.

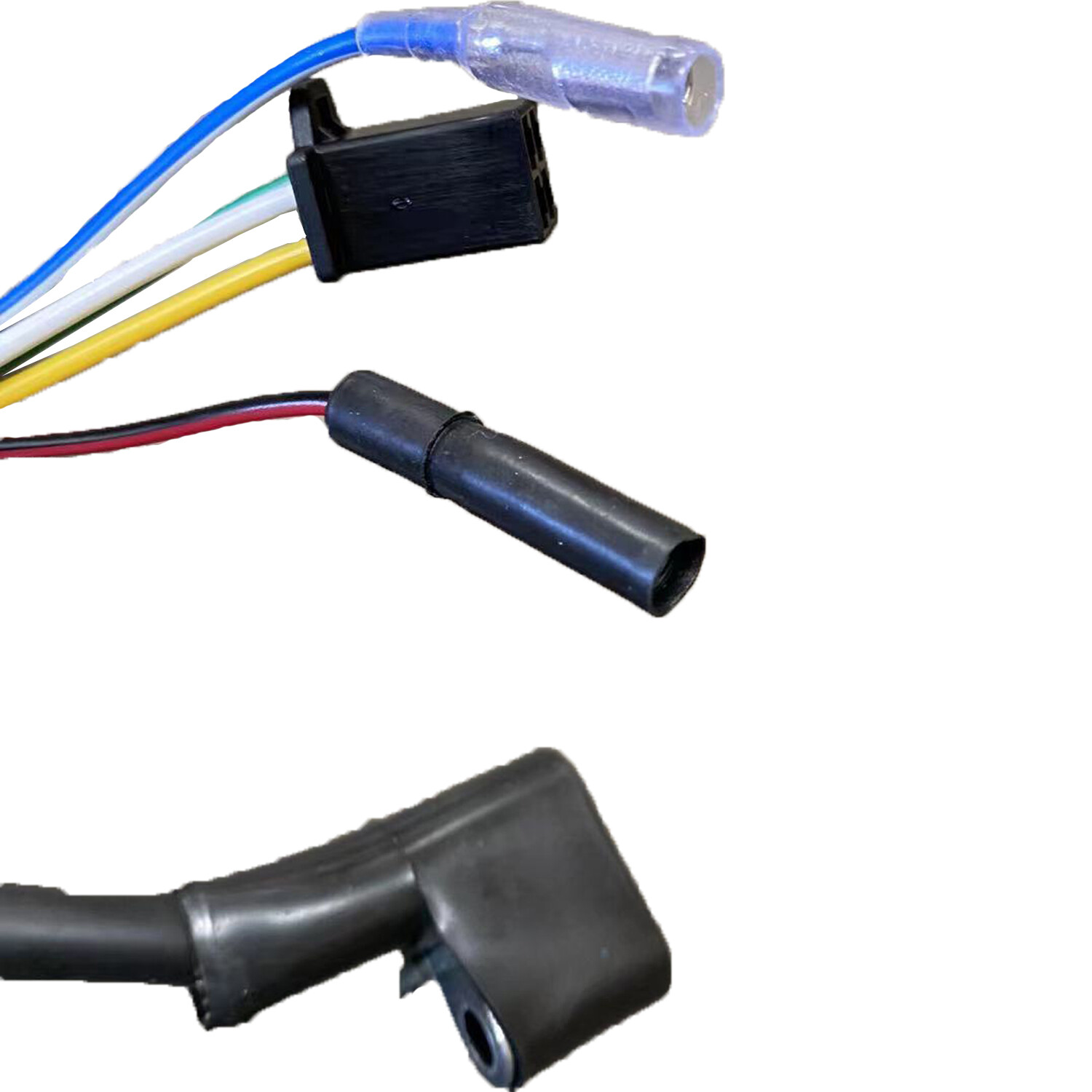

• When purchasing this engine, please pay special attention to whether

the plug-in is compatible with your bike. If it not, you need to

purchase an additional plug-in for modification.

Specifications

Engine Type

Single Cylinder, 4-Stroke, Horizontal Engine

Cooling System

Oil Cooled and Forced Air Cooled

Cylinder Working Volume

0.0468gal (177.3ml)

Cylinder Compression Ratio

10:1

Cylinder diameter

2.46" (62.5mm)

Piston Stroke

2.26" (57.4mm)

Ignition Advance Angle

13°±1 º (1700r/min); 28°±1 º (4000r/min)

Port Timing

Intake Valve: On: 5° Before TDC, Off: 25° after BDC; Exhaust Valve: On: 35° before BDC, Off: 8 after TDC

Oil Pump Type

Rotor type

Lubrication

Pressure/splash

Power Output Shaft Direction

Right Rotate

Valve clearance

In: 0.04-0.06mm, Out: 0.05-0.08mm

Clutch Type

Automatic Centrifugal Clutch with Dry Shoes

Transmission

Continuously Variable Speed + (forward gear) Two-stage Gear Reduction, (Reverse) Three-stage Gear Reduction

Forward Gear Ratio

6.516 (primary: 2.77, final: 2.35)

Reverse Gear Ratio

24.24 (primary: 3.15, secondary: 3.27, final: 2.35)

Standard Power and Standard Speed

7kW/7000r/min

Maximum Torque and Corresponding Speed

11N m/6000r/min

Maximum Power and Standard Speed

7.5kW/7500r/min

Minimum Non-load Stable Speed (Idle Speed)

1700±100r/min

Minimum Fuel Consumption Rate

367g/kW h

Ignition Method

CDI

Starter Method

Electric/Kick starter

Carburetor Type

Vacuum Film Carburetor

Carburetor Model

PD24

Spark Plug Type

M10×1

Spark Plug Model

A7RTC

Magneto Type

Flywheel

Magneto Model

GY6-18(LJ)

Oil Tank Capacity

0.25gal (0.95L)

Gear Oil Capacity

0.079gal (0.3L)

Dimensions (L×W×H)

25.83"x16.61"x11.85"(656×422×301mm) (without carburetor)

Net Weight

68.35lbs (31kg)

Fuel Grade

Unleaded Gasoline Above #93

Engine Oil Grade

SF 15W/40

Exhaust Temperature

<=788°F

Oil Consumption Rate

<=8mg/kW·h
