Electric power steering (EPAS) rack universal wire harness for some Fords 2011+.

This is a wire harness for

the electric power assisted steering (EPAS) racks (not pumps) used in various

2011 and up Ford cars and trucks. This harness uses factory connectors sourced

from the factory suppliers. The wire is automotive-grade cross-linked polyethylene

insulated wire rated for under hood use. The smaller wires are type GXL and the

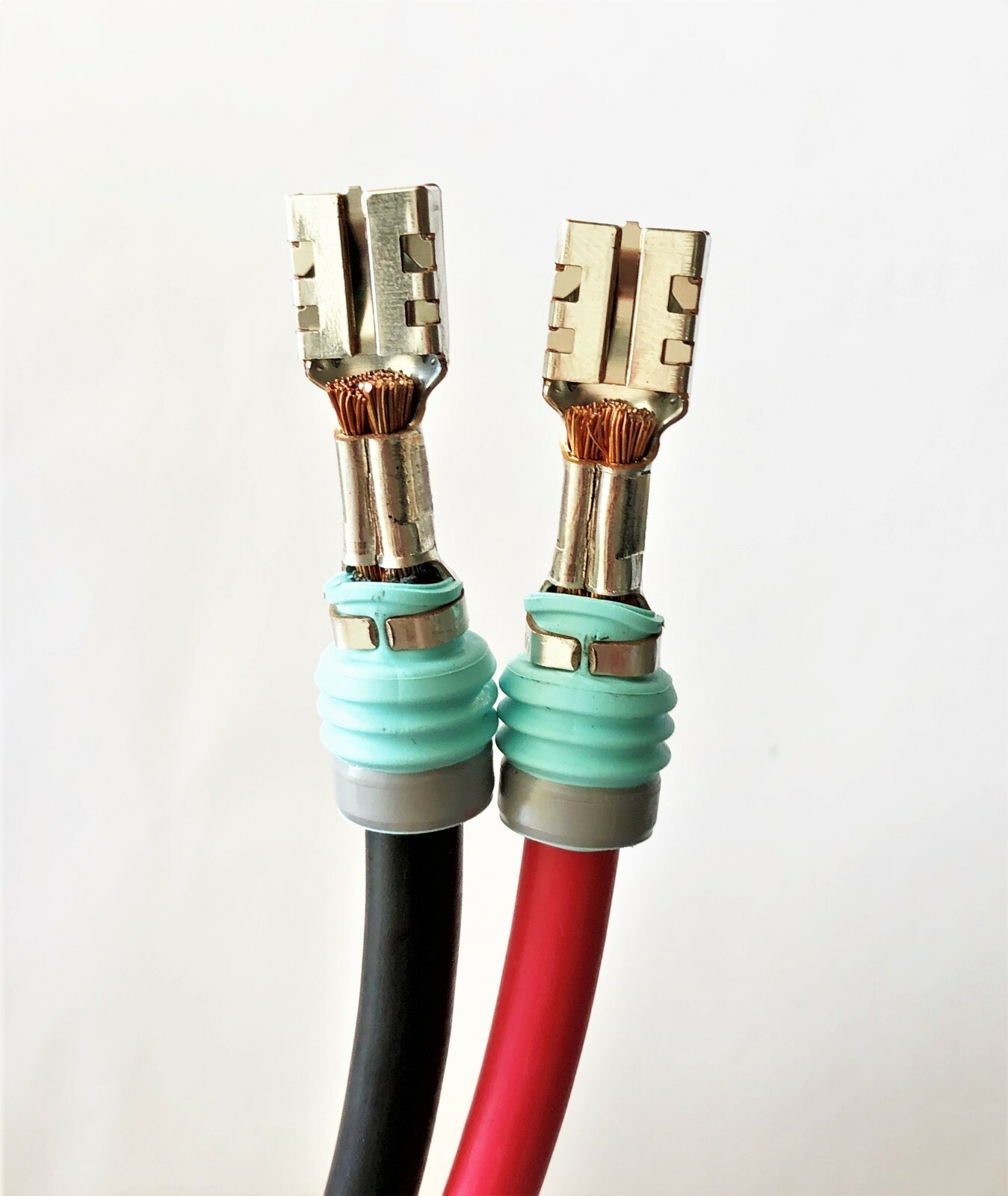

larger wire are type SGX. The harness comes with 6 feet of wire. All wire

connections are crimped. All crimps are verified to meet USCAR

standards for tensile strength. All our

products are assembled by hand in the United States. Watch out for other

companies selling harnesses made from cheap aftermarket connectors. These cheap

kits often don't use the correct seals or wire terminals.

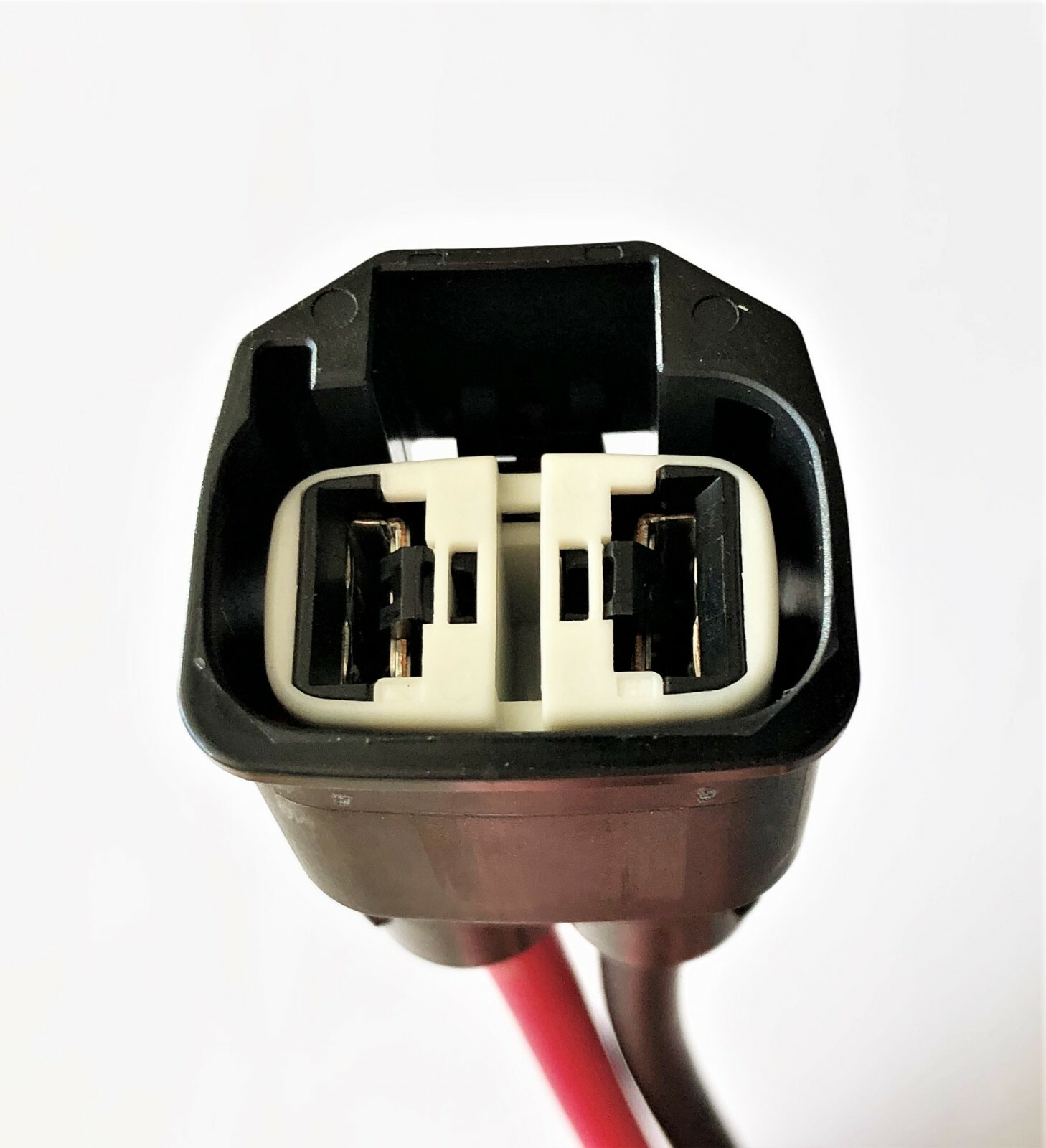

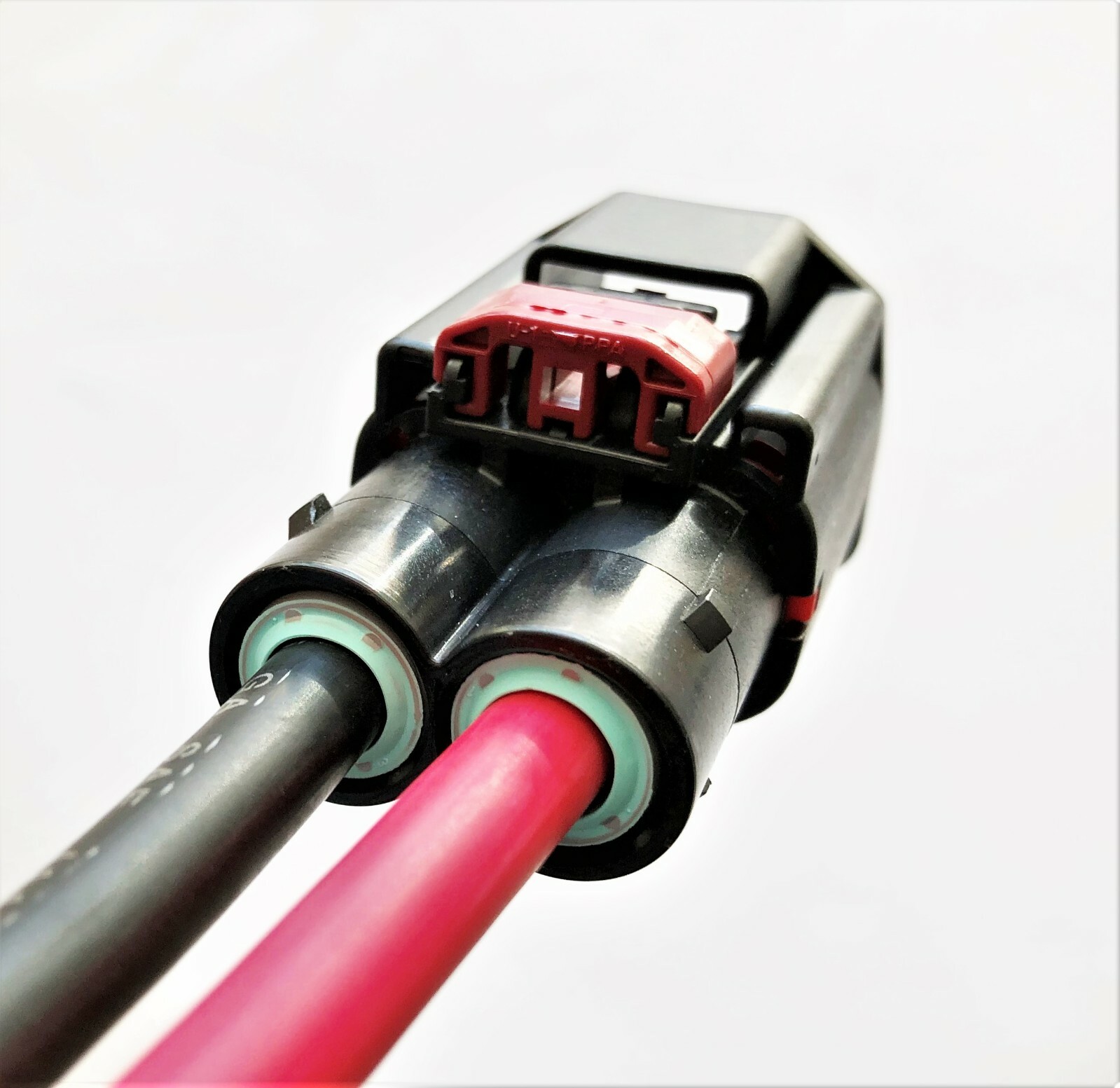

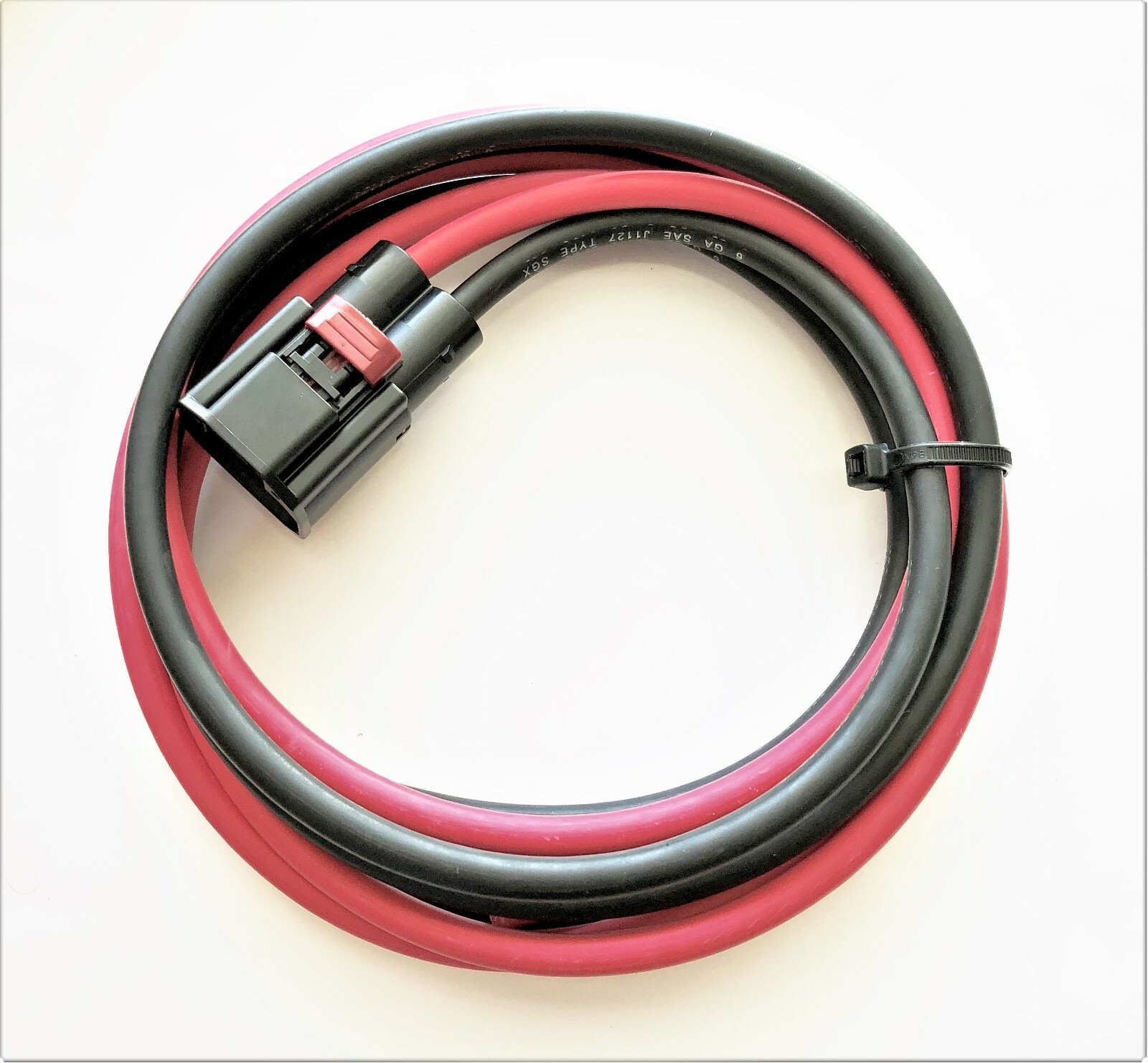

The main power connector has

6 feet of 6-gauge, red and black SAE J1127 SGX wire. The OEM Ford harness we

based this harness on has 6-gauge wire on the positive side and 8-gauge wire on

the negative. See photos for a comparison of the OEM harness and our harness.

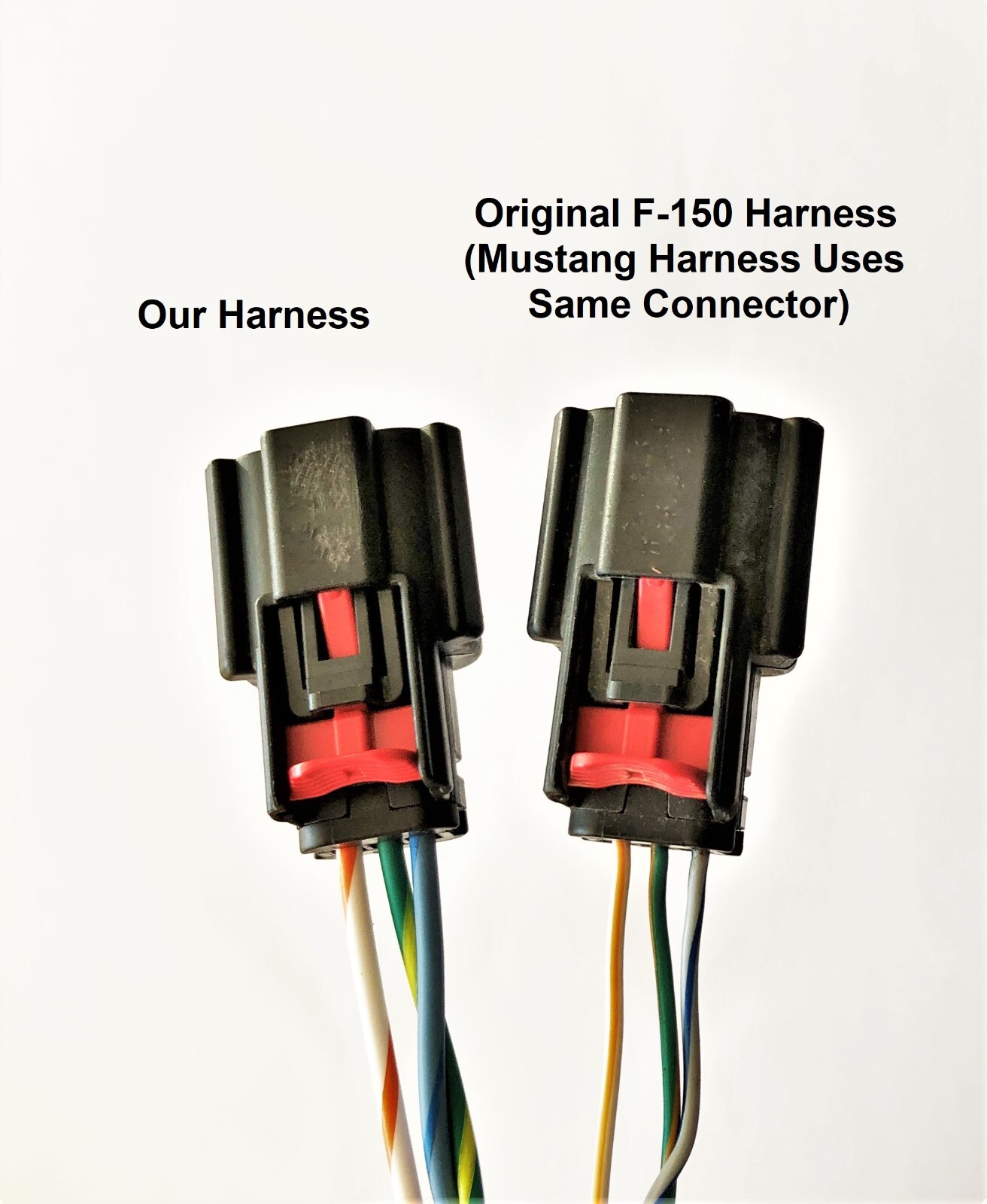

The smaller data connector

comes with 6 feet of color-coded 18-gauge wire. The three wires are light blue

with a dark blue stripe, green with a yellow stripe, and white with an orange

stripe. These match the OEM connector we based this harness on. See photos for

a comparison of the OEM harness and our harness. The two CAN BUS wires are

twisted together the same as the OEM harness.

This kit can be used to

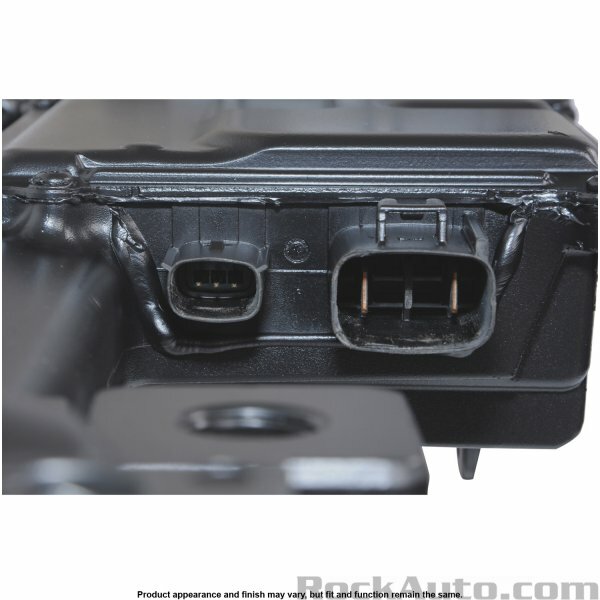

replace damaged wiring in factory Ford vehicles. Please check out the example

picture of the OEM rack and the connectors on the rack to make sure this will

fit.

Custom harnesses (length,

wire color) can be made. Message me for prices and lead times. Custom harnesses

are not returnable.

This kit can also be used to

install an EPAS rack in early S197 Mustangs that did not get the electric power

assisted steering rack from the factory. The EPAS rack is a popular swap part

for the earlier S197 Mustangs because it eliminates the need for a power

steering pump when swapping in a later Coyote motor. With this kit you aren't

limited to the factory replacement loom. If you need a rack controller for use

in an earlier model, please see below. We are a vendor for the Modular

Motorsports Racing controller.

Please note that this is a

universal kit for the Ford electric power assisted steering rack using

factory-sized wiring. It is assumed that the purchaser and installer are

familiar with automotive wiring and will follow standard industry practices.

If you need a universal EPAS

rack CAN simulator to activate your rack in a custom installation, please see

my other ad:

https://www.ebay.com/itm/266124818011

If you prefer to buy just

the connectors and the wire terminals, please see my other ad:

https://www.ebay.com/itm/264679614347

See a video on how to

assemble and disassemble the two connectors here:

https://www.youtube.com/watch?v=9z16DVLmarI

If you are looking for a

steering connector and you don't see it, feel free to message me.
