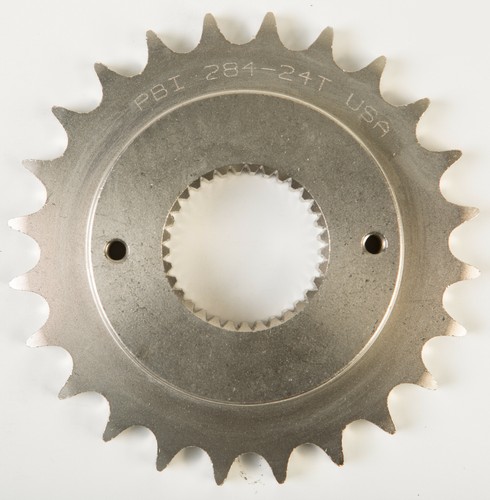

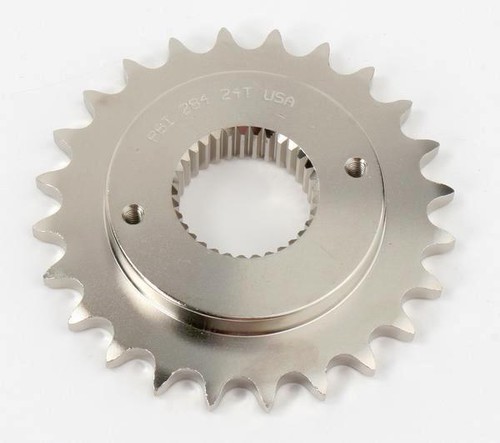

PBI Sprockets 284-24 Offset Transmission Sprocket 24 Tooth Harley-Davidson Buell

PBI Sprockets 284-24

Offset Transmission Sprocket 24 Tooth

Harley-Davidson Buell

CNC-machined from a premium nickel, chromoly steel (8620), case-hardened and finished with an electroless nickel plating for corrosion/wear resistance and lubricity

Sprockets are drilled and tapped to accommodate late-model lock plate, PART #DS-360182, available separately

Offset measurement is taken from the face that rests against the mainshaft bearing to the inside of the teeth for "Total Offset" description

For use with .530 pitch chain

• Will also fit '86-'93 Big Twin models with use of OEM #33344-94 (spacer), OEM #12067A (seal) and OEM #11165 (O-ring).

• These parts are not included and must purchase separately.

Made in the U.S.A.

Specs

Product Name Sprocket

Type Mainshaft

Color/Finish Nickel

Material Steel

Offset Centered

Tooth Count 24

Chain Size 530

Features 5 Speed

Units Each

Riding Style Street

2006 Harley-Davidson FLSTI Heritage Softail - -

2006 Harley-Davidson FLHX Street Glide - -

2006 Harley-Davidson FLHXI Street Glide - -

2006 Harley-Davidson 1200 Low EFI XLL - -

2006 Harley-Davidson XL1200L Sportster 1200 Low - -

2005-2006 Harley-Davidson FLSTSC Softail Springer Classic - -

2005-2006 Harley-Davidson FLSTSCI Softail Springer Classic - -

2005-2006 Harley-Davidson FLSTN Softail Deluxe - -

2005-2006 Harley-Davidson FLSTNI Softail Deluxe - -

2005-2006 Harley-Davidson XL883L Sportster 883 Low - -

2005 Harley-Davidson FXDCI Super Glide Custom - -

2005 Harley-Davidson 15th Anniversary Fat Boy FLSTF - -

2004-2006 Harley-Davidson XL883 Sportster - -

2004-2006 Harley-Davidson FLHRS Road King Custom - -

2004-2006 Harley-Davidson XL1200R Sportster 1200 Roadster - -

2004-2006 Harley-Davidson FLHRSI Road King Custom - -

2004-2005 Harley-Davidson FXDLI Dyna Low Rider - -

2004-2005 Harley-Davidson FXDWGI Dyna Wide Glide - -

2004-2005 Harley-Davidson FXDI Dyna Super Glide - -

2004-2005 Harley-Davidson FXDXI Dyna Super Glide Sport - -

2003-2006 Harley-Davidson FLHTI Electra Glide Standard - -

2002-2003 , 2005-2006 Harley-Davidson XL883R Sportster 883 Roadster - -

2001-2006 Harley-Davidson FLSTCI Heritage Softail Classic - -

2001-2006 Harley-Davidson FXSTDI Softail Deuce - -

2001-2006 Harley-Davidson FXSTI Softail Standard - -

2001-2006 Harley-Davidson FXSTBI Night Train - -

2001-2006 Harley-Davidson FXSTSI Springer Softail - -

2001-2006 Harley-Davidson FLSTFI Fat Boy - -

2001-2003 Harley-Davidson FLSTSI Heritage Springer - -

2001-2003 Harley-Davidson FXDXT Dyna Super Glide T-Sport - -

2000-2006 Harley-Davidson FXSTD Softail Deuce - -

2000 Harley-Davidson FXR4 - -

1999-2006 Harley-Davidson FXSTB Night Train - -

1999-2006 Harley-Davidson XL883C Sportster 883 Custom - -

1999-2005 Harley-Davidson FXDX Dyna Super Glide Sport - -

1999-2003 Harley-Davidson Sportster 1200 XLH - -

1999-2002 Buell X1 Lightning - -

1999-2001 Harley-Davidson XLH883 - -

1999 Harley-Davidson FXR2 - -

1999 Harley-Davidson FXR3 - -

1998-2006 Harley-Davidson FLHRCI Road King Classic - -

1998-2006 Harley-Davidson FLTRI Road Glide - -

1998-2002 Harley-Davidson FLTR Road Glide - -

1998-1999 Harley-Davidson Road King EFI FLHR - -

1998-1999 Harley-Davidson Electra Glide Ultra Classic FLHTCU - -

1998 Buell S1 White Lightning - -

1997-2003 Harley-Davidson FLSTS Heritage Springer - -

1997-2000 Buell M2 Cyclone - -

1997 Buell S3T Thunderbolt - -

1997 Buell S3 Thunderbolt - -

1996-2006 Harley-Davidson FLHTCI Electra Glide Classic - -

1996-2006 Harley-Davidson XL1200C Sportster 1200 Custom - -

1996-2003 Harley-Davidson XL1200S Sportster 1200 Sport - -

1996-1997 , 2000-2006 Harley-Davidson FLHRI Road King - -

1996 Harley-Davidson FLTCUI Tour Glide Ultra Classic - -

1996 Harley-Davidson Tour Glide Ultra Classic FLTCU - -

1996 Buell S1 Lightning - -

1995-2006 Harley-Davidson FLHTCUI Electra Glide Ultra Classic - -

1995-2005 Harley-Davidson FXD Dyna Super Glide - -

1995-2000 Harley-Davidson FXDS-Conv Dyna Convertible - -

1995-1997 Harley-Davidson FXSTSB Bad Boy - -

1995 Harley-Davidson Electra Glide Classic EFI FLHTCI - -

1994-2006 Harley-Davidson FLHR Road King - -

1994-1996 Harley-Davidson FLSTN Heritage Softail Special - -

1994 Buell S2 Thunderbolt - -

1994 Harley-Davidson Tour Glide Classic FLTC - -

1993-2005 Harley-Davidson FXDWG Dyna Wide Glide - -

1993-2005 Harley-Davidson FXDL Dyna Low Rider - -

1993 Harley-Davidson FLSTN Heritage Softail Nostalgia - -

1993 Harley-Davidson Sport Glide FXRT - -

1992 , 2005 Harley-Davidson FXDC Super Glide Custom - -

1991-2003 Harley-Davidson Sportster 883 XLH - -

1991-1998 , 2002-2003 Harley-Davidson XLH883HUG Sportster 883 Hugger - -

1991-1998 Harley-Davidson XLH1200 - -

1991-1995 Harley-Davidson XLH883DLX Sportster 883 Deluxe - -

1990-2006 Harley-Davidson FLSTF Fat Boy - -

1990-1993 Harley-Davidson FXRS-Conv Low Rider Sport Convertible - -

1989-1997 Harley-Davidson FLHTCU Electra Glide Ultra Classic - -

1989-1995 Harley-Davidson FLTCU Tour Glide Ultra Classic - -

1989-1990 , 1993 Harley-Davidson Low Rider FXRS - -

1988-2006 Harley-Davidson FLSTC Heritage Softail Classic - -

1988-2006 Harley-Davidson FXSTS Springer Softail - -

1988-1993 Harley-Davidson FXRS-SP Low Rider Sport - -

1987-1994 Harley-Davidson FXLR Low Rider Custom - -

1987-1993 Harley-Davidson FLHS Electra Glide Sport - -

1987 Harley-Davidson Softail Heritage Classic FLSTC - -

1986-1999 Harley-Davidson FXSTC Softail Custom - -

1986-1994 Harley-Davidson FXR Super Glide II - -

1986-1993 Harley-Davidson FXST Softail Standard - -

1986-1990 , 2006 Harley-Davidson FLST Heritage Softail - -

1986-1987 , 1995-2006 Harley-Davidson FLHT Electra Glide Standard - -

1986 Harley-Davidson FXRD Sport Glide Grand Touring - -

1985-2005 Harley-Davidson FLHTC Electra Glide Classic - -

1985-1993 Harley-Davidson FLTC Tour Glide Classic - -

1985-1992 Harley-Davidson FXRT Sport Glide - -

1985 , 1987-1988 , 1991-1992 Harley-Davidson FXRS Low Glide - -

1985 , 1987 Harley-Davidson FXRC Low Rider Chrome - -

1985 Harley-Davidson Electra Glide Standard FLHT - -

Fitment Disclosure

This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
