Front Upper & Lower Control Arms Tie Rods For 2007-2012 FORD FUSION LINCOLN MK

• 1.Fitting the Following vehicle:

•

• FORD FUSION 2007-2009 Built After 9/03/06 Production Date FORD FUSION 2010-2012 V6 3.5L LINCOLN MKZ 2007-2010 Built After 9/03/06 Production Date LINCOLN MKZ 2011-2012 V6 3.5L MERCURY MILAN 2007-2009 Built After 9/03/06 Production Date

• 2.Package Includes:

•

Front Upper & Lower Control Arms Tie Rods For 2007-2012 FORD FUSION LINCOLN MK

1.Fitting the Following vehicle:

FORD FUSION 2007-2009 Built After 9/03/06 Production Date FORD FUSION 2010-2012 V6 3.5L LINCOLN MKZ 2007-2010 Built After 9/03/06 Production Date LINCOLN MKZ 2011-2012 V6 3.5L MERCURY MILAN 2007-2009 Built After 9/03/06 Production Date

2.Package Includes:

1x Front Lower Control Arm And Ball Joint - Rear Position Driver Side -K620492 1x Front Lower Control Arm And Ball Joint - Rear Position Passenger Side -K620493 1x Front Upper Control Arm And Ball Joint - Passenger Side -k620635 1x Front Upper Control Arm And Ball Joint - Driver Side -k620636 2x Inner Tie Rod End -ev800531 1x Front Outer Tie Rod End - Passenger Side -ES800101 1x Front Outer Tie Rod End - Driver Side -ES800102 2x Front Lower Control Arm And Ball Joint -k620149

3.Note

(1).Please check the Compatible Fitment Chart above before payment making sure all the suspension parts listed on this page are compatible with your automobile.

(2). Although some parts have grease fittings, other parts are factory sealed, but do not affect the fit and quality of the parts.

(3).Please contact our customer services for targeted discount after all the items are received if you have reached any targeted discount thresholds, the terms of which is at the bottom of this page.

10 Year Warranty

This item is backed by our 10-year warranty. In the event this item should fail due to manufacturing defects during intended use, we will replace the part free of charge. This warranty covers the cost of the part only.

Please note: Any modifications to an item of any kind before contacting us will void any and all warranty coverage for this item. Please contact us before modifying the part so that we have the opportunity to correct the situation.

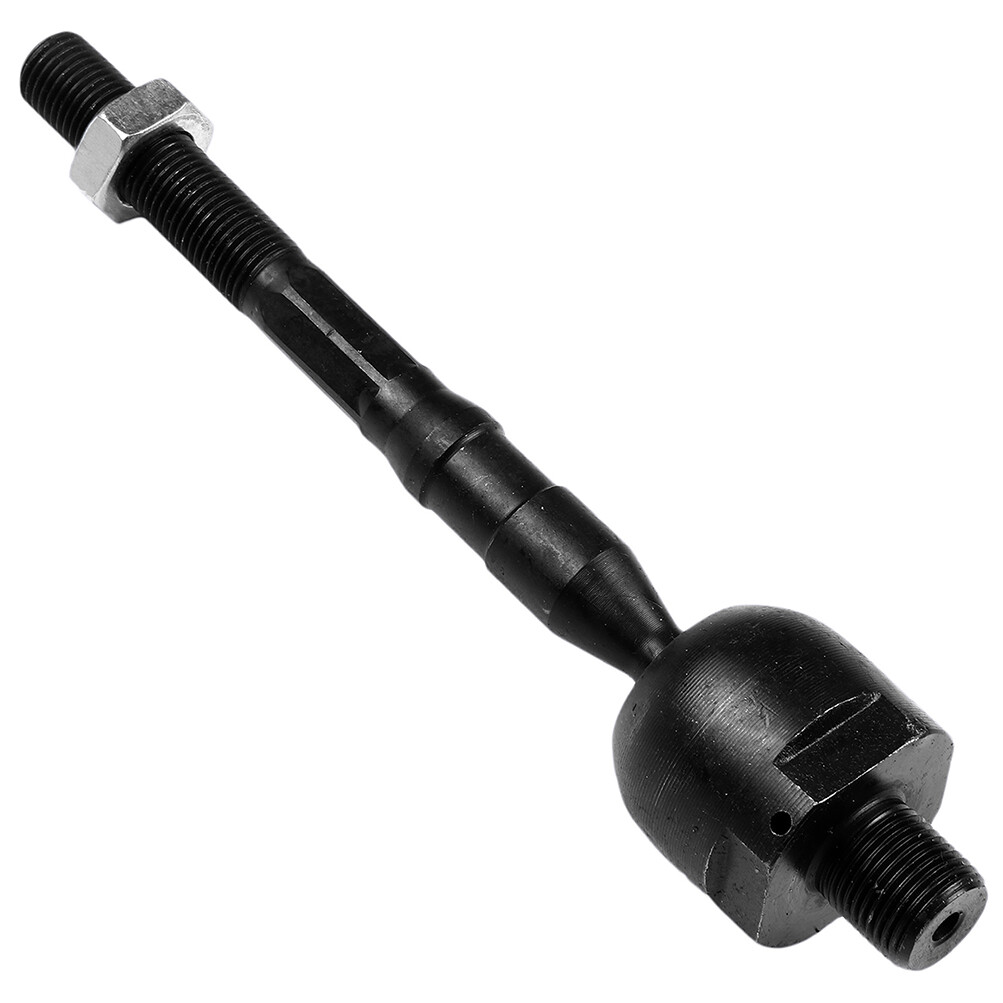

Tie-Rod End Replacement Guideline:

If you feel a bump in the steering when driving over road bumps or curbs, this might be due to worn tie rod ends or inner tie rods. Clicking noises during sudden steering movements can also be symptoms of a defective tie rod. In order to determine the exact cause and replace the defective tie rod, the car must be elevated with a vehicle lift in order to be examined more closely.

This useful tip applies to the exchange of tie rod ends and inner tie rods, which together form the so-called tie rod.

Picture(A)

Note: Cleanliness is extremely important when working on the power steering. Incorrect work and contamination can lead to leakage and, in the worst case, to failure of the steering assistance.

1.Lift the vehicle and dismount the front axle wheels.

2.Spray the fastening nut of the tie rod end with rust remover and leave it on for a few minutes.

Picture(B)

3.Dismount the front underride guard.

Picture(C)

4.Loosen the fastening nut from the tie rod and remove it completely.

5.Remove the tie rod end from the steering knuckle using an appropriate ball joint separator.

Picture(D)

6.Remove the clamp of the bellow on the steering gear.

7.Push the bellow towards the tie rod end.

Picture(E)

8.Unscrew the inner tie rod from the rack.

9.Clean the sealing face of the bellow at the steering gear.

Picture(F)

10.Clean the lug of the rubber contact surface of the ball joint in the steering knuckle.

Note:Always use new self-locking nuts and bolts for a reliable repair.

11.Screw the new inner tie rod into the rack and tighten it with the tightening torque that has been specified by the vehicle manufacturer.

Picture(G)

12.Mount the bellow and close the clamps with the appropriate special tool.

Note:Incorrect mounting of the bellow can lead to corrosion of the rack: the steering gear starts leaking which can lead to a failure in the steering assistance.

Picture(H)

13.Secure the ball joint in the steering knuckle and mount the nut. Please observe the tightening torque suggested by the vehicle manufacturer.

Note:During mounting, the ball stud should not turn within the ball joint. This can cause damage inside the ball joint and can lead to early failure.

Tip:Secure the ball stud against twisting with a suitable tool.

Picture(I)

14.Mount the front underride guard.

15.Mount the front wheels and tighten them with the tightening torque recommended by the vehicle manufacturer.

16.Align the wheels and adjust them if necessary. Observe the vehicle manufacturer specifications.

17.Perform a test drive.

Note:When performing the test drive, pay special attention to the handling while cornering and listen for possible noise emission.

Frequently Asked Questions

(1).What are the symptoms of a bad sway bar?

Some of the common symptoms of a bad sway bar bushing or sway bar links going bad are: clunking noise, rattling noise, knocking uneven noise road, lack of stability when driving and noise going over speed bumps. poor handling during turns.

(2).What happens when a sway bar breaks?

Because a sway bar helps the car's suspension to put more pressure on loaded springs, a broken sway bar means that the car's suspension will not be able to handle corners as well or as quickly. While it is possible to drive with a broken sway bar, as a precaution do not take corners with excessive speeds.

Ball Joint Replacement Guideline:

If there is a knocking or clunking noise in the area of the front axle when the car is traveling over road bumps, potholes or curbs, then there is usually a defect in a component of the wheel suspension.

Picture(A)

The side of the front axle from which the (vibration) noise is emanating can already be determined during a test drive. The type of noise also already provides certain indications for maintenance regarding which components might be faulty.

Picture(B)

1.Raise the vehicle and remove the front wheels.

2.To loosen the fastening screws and fixing nuts of the compression ball joint more easily, spray them with rust remover and allow to act for a few minutes.

Picture(C)

3.Loosen the fastening screws of the broken ball joint on the control arm and remove the nuts.

Picture(D)

4.Loosen and remove the fixing nut of the ball joint on the steering knuckle.

Tip:If the ball stud rotates, hold the ball stud in place with a hexagon socket.

Picture(E)

5.Remove the bad or worn ball joint from the control arm.

6.Loosen the compression ball joint on the steering knuckle using a suitable special tool.

Picture(F)

7.Clean the cone connection.

Tip:For better sealing and durability of the ball joint sleeve, a little silicone grease can be applied to the contact surface.

Picture(G)

8.Insert new compression ball joint in the control arm and steering knuckle and tighten with new fixing nuts.

9.Reinstall front wheels. Lower the vehicle and tighten the wheel studs to the tightening torque specified by the vehicle manufacturer.

10.Measure the chassis and adjust it using the various holes on the compression ball joint if necessary.

11.Finally, carry out a test drive.

Frequently Asked Questions

(1).How will I know that I have to renew my ball joint parts? Or replace them?

If your ball joint fails, you will listen to a strange sound while driving. And that sound may help you to realize that your ball joint has failed and you have to renew them.

(2).What happens if a ball joint breaks?

When a ball joint breaks, you will hear a mysterious noise inside your car wheel.

Your car tire will wear-out since your alignment will be broken, and you will feel the car getting out of control.

If the ball joint breaks completely, it can be separated, and things can turn sour quickly. The wheel will stop being nice and can even steer you off the road. It can be serious.

Broken ball joints will seriously affect the steering and suspension. It can even result in your wheel falling off the car.

(3).Are worn ball joints dangerous?

Yes, it can be quite dangerous. Because, a worn ball joint causes suspension damage, inspection failure, and breakage of related parts.

It might make your front suspension come apart while driving, so the wheels move in whatever direction inertia takes them. That can lead to a fatal accident.

(4).What happens if I don't replace ball joints?

If you don't want to replace your ball joints, then get ready to experience some serious issues. The old ball joints cause mysterious clunking noise or drifting steering. Once they are worn-out, it will seriously affect your steering and suspension. However, you do not need to change the ball joints if it is new.

(5).Do I need to grease new ball joints?

I would say it will be a wise decision if you grease your new ball joints. At least I will always grease a new one after the installation. Greasing a new ball joint will make it stronger and extend its lifetime because there is a minimal amount of grease inside. I suggest you do so after the first installation. Follow the instruction card.

Sway Bar Stabilizer Link Replacement Guideline:

While driving, the following signs may indicate a faulty sway bar stabilizer link:

(1).Rattling and thumping noises on rough roads.

(2).Imprecise vehicle handling.

(3).Stronger inclination of the vehicle during cornering.

If the sway bar stabilizer link is found to be defective, it should be replaced as described below.

Picture(A)

1.Raise vehicle and remove front wheels.

Tip:Always check both stabilizer links and replace them in pairs if necessary.

2.Spray fastening nuts of the stabilizer link with rust remover and let act for a few minutes.

Picture(B)

3.Loosen the lower fastening nut of the stabilizer link at the stabilizer and remove.

Tip:If the ball stud also starts to turn, hold it with a suitable tool.

4.Press stabilizer link out of torsion bar.

Picture(C)

5.Loosen the upper fastening nut of the stabilizer link at the suspension strut and remove it.

Tip:If the ball stud also starts to turn, hold it with a suitable tool.

Picture(D)

6.Press stabilizer link at suspension strut out of bracket.

Picture(E)

7.Insert new stabilizer link at suspension strut.

Picture(F)

8.Tighten stabilizer link at suspension strut to the tightening torque specified by the vehicle manufacturer.

Tip:Secure the ball stud against twisting with a suitable tool.

Picture(G)

9.Insert new stabilizer link at stabilizer.

10.Tighten stabilizer link at stabilizer to the tightening torque specified by the vehicle manufacturer.

Tip:Secure the ball stud against twisting with a suitable tool.

Picture(H)

11.Remount the front wheels. Lower the vehicle and tighten the wheel studs to the tightening torque specified by the vehicle manufacturer.

Tip:Even if replacing the stabilizer link does not directly affect the chassis setting, we recommend checking the axle setting and adjusting if necessary after working on the suspension.

12.Conclude with a test drive.

Frequently Asked Questions

(1).Why should I get my tie rods inspected on a regular basis?

If you don't get your tie rods inspected on a regular basis, there are some warning signs to watch (and listen) for. If your vehicle pulls to one side while driving, or when braking, it's possible that bad tie rods may be the culprit. Your vehicle's tires will also show uneven wear on the inside and outside edge of the tire when there's a tire rod issue. However, one of the most noticeable signs of tie rods going bad will be a knocking sound coming from the front end of the vehicle when you turn into a parking space, or some other low speed, tight turning situation.

(2).Vibrations

One of the first symptoms that your tie rods are damaged or breaking is that the steering wheel will vibrate slightly. This is especially prevalent when you are speeding up or turning. This happens because the steering wheel is losing its control over the tires, causing the steering wheel to shimmy as you drive.

(3).Shaking

As the tie rods become further damaged, you will start to notice that the car itself will start to shake. This happens because the tires may start to wobble without you having full control over them. Although you should take your car into a mechanic at the first sign of tie rod problems, if you experience your car shaking you could be at risk for serious tie rod damage-which can cause accidents. Take your car into a mechanic if you experience this tie rod symptom.

(4).Wandering

If your tie rods continue to go unchecked or unfixed, the rods can completely break. This can cause you to lose all control of your car, possibly resulting in an accident. When this occurs, the car will may "wander" as you drive. At this point, the steering wheel will have no control over the tires and the tires will start moving independently, causing the car to drift while you are driving. If this happens while you are on a freeway or busy road, you and others could be at serious risk of an accident. If you experience wandering, stop your car, call a tow truck and take your car to the nearest mechanic.

Item Specifics

Brand ECCPP

Manufacturer Part Number EC84199601

Placement on Vehicle Front Lower Upper Inner Outer

Universal Fitment No

Manufacturer Warranty 10 Years

Features Greasable

Items Included Mounting Hardware

Type Control Arm & Ball Joint Assembly

OE/OEM Part Number K620492,K620493,k620635,k620636,ev800531,ES800101

Interchange Part Number k620149,control arm ball joint,upper control arm

Superseded Part Number inner and outer tie rod,ES800102,k620149

Mounting Style Bolt-On

Finish Coated

Material Alloy Steel

Cotter Pin Hole Yes

Item Specifics

Brand ECCPP

Manufacturer Part Number EC84199601

Placement on Vehicle Front Lower Upper Inner Outer

Universal Fitment No

Manufacturer Warranty 10 Years

Features Greasable

Items Included Mounting Hardware

Type Control Arm & Ball Joint Assembly

OE/OEM Part Number K620492,K620493,k620635,k620636,ev800531,ES800101

Interchange Part Number k620149,control arm ball joint,upper control arm

Superseded Part Number inner and outer tie rod,ES800102,k620149

Mounting Style Bolt-On

Finish Coated

Material Alloy Steel

Cotter Pin Hole Yes

Discount

Targeted Disounts Terms

(1).Targeted Discount Terms only apply to auto parts purchased from ECCPPAUTOPARTS, which only includes suspension kit, control arm, tie rod end, ball joint, sway bar, stabilizer link, pitman arm, idler arm, steering center link.

(2).If you have reached any targeted discount threshold(s), please contact our customer services after you received all your items.

(3).Targeted Discount will be refunded from buyer's payment, which means ECCPPAUTOPARTS won't provide any extra targeted discounts if full refund is issued.

Targeted Shipping Discount

(4). Since our warehouse is located in Los Angeles, California, therefore you are qualified for extra 2% targeted shipping discount off the item sales if shipping address of your order is in California(CA), Washington(WA), Oregon(OR), Nevada(NV). If you have reached this targeted shipping discount threshold, please contact our customer services after you received all your items.

Note: Item sales means your payment for the product(s) only, excluding shipping and handling charges, US internet sales taxes.

(5).We usually need a 1-2 business day as handling time for packaging and shipping scheduling. Estimated delivery dates should be 4-6 business days after your payment is received.

(6).ECCPPAUTOPARTS has the final power of interpretation of all the above Targeted Discount Terms and Procedures.

Shipping

(1).Warehouse is located in Los Angeles, California, where local pickup transaction is temporarily not available.

(2).Shipping services only cover 48 states and Washington DC in US Continental, while most of the time Alaska, Hawaii, Puerto Rico, American Samoa, U.S. Virgin Islands, Northern Marianas, Guam are not deliverable.

(3).USPS PO Box, APO Army Post Office, FPO Fleet Post Office addresses are not available.

(4).Global Shipping Program is temporarily not available due to the reason for package dimensions.

(5).We usually need a 1-2 business day as handling time for packaging and shipping scheduling. Estimated delivery dates should be 4-6 business days after your payment is received.

(6).Your auto parts sometimes might be shipped with two or more separated packages due to weight limitation, please keep patient with no Item Not Received claim or Return request filed until by all of your items are received.

(7).Seller is required to purchase signature confirmation to be protected if a buyer reports an item not received or opens a payment dispute if the order has a total cost (including shipping costs and any taxes) of $750 or more.

Warranty

Items valued over $15 on eBay that include a warranty or service contract must contain additional details in seller's listing description.

10 Year Warranty Terms and Procedures

(1).The warranty terms only apply to the auto parts purchased from ECCPPAUTOPARTS, which only includes suspension kit, control arm, tie rod end, ball joint, sway bar, stabilizer link, pitman arm, idler arm, steering center link.

(2).ECCPPAUTOPARTS carries no warranty responsibilities for any auto parts removing fees, installation fees, consulting fees, labor costs, towing charges, rental car reimbursements.

(3).The stated 10 year warranty is limited to only one brand new replacement for each part purchased during 10 year warranty time period.

(4).ECCPPAUTOPARTS promises free replacement due to quality defects or item not as described issues within 90 calendar days from the date when buyers receive their items in the situation when buyers are willing to provide convictive proofs or professional diagnose report if required, otherwise ECCPPAUTOPARTS has the right to refuse any replacement requests.

(5).ECCPPAUTOPARTS promises free replacement due to quality defects or item not as described issues after 90 calendar days from the date when buyers receive their items in the situation when buyers promise to prepay 15% of the original item sales price as postage for replacement, otherwise ECCPPAUTOPARTS has the right to refuse any replacement requests.

(6).ECCPPAUTOPARTS carries no warranty responsibilities for any replacement due to car accidents, drag racing, unprofessional replacement, road hazard, disassembly.

(7).Anyone who attempts to execute 10 year warranty procedures must be the original purchaser of the item(s), otherwise 10 year warranty terms void immediately.

(8).Anyone who attempts to execute 10 year warranty procedures must provide screenshot of his or her original eBay order details if required, including buyer user name, shipping address, item title, item id, final sales price.

(9).ECCPPAUTOPARTS has the final power of interpretation of the above 10 Year Warranty Terms and Procedures.

Return

(1).Most of items support 60 Days Money Back Guarantee.

(2).Refunds will be credited within 2 or 3 business days after returned item(s) is received.

Best Sales

2 Pcs Wheel Hub Bearing Front FWD For Buick LaCrosse Lesabre Cadillac DTS Chevy

USD 61.95

Front Wheel Hub Bearing For Chevy Monte Carlo Impala Cadillac Eldorado DTS FWD

USD 43.50

Universal 12V Low Pressure 5-9 PSI Electric Fuel Pump Installation Kit E8012S

USD 19.99

Pair Manual Tow Mirrors for 1988-1998 Chevy GMC C/K 1500 2500 3500

USD 67.99

Pair For 2007-2014 Chevy Silverado Sierra Power Heated LED Signal Tow Mirrors

USD 131.29

Newly Listed

ECCPP CV Joint Axle Fits Honda Rancher 420 2014-2018 Front Right Side

USD 60.29

For 2012-2017 Chevrolet Equinox Window Regulators w/ Motor Rear Left & Right

USD 83.95

ECCPP CV Joint Axle Fits Suzuki King Quad 400 2010-2017 Front Left Side

USD 64.29

For Jeep Wrangler 2017-2007 Front Driver Left Window Lift Motor

USD 41.95

Rear Spoiler M4 Style For 2014-2021 BMW F22 2-Series Coupe -Gloss Carbon Look

USD 93.65

Front Upper & Lower Control Arms Tie Rods For 2007-2012 FORD FUSION LINCOLN MK

1.Fitting the Following vehicle:

FORD FUSION 2007-2009 Built After 9/03/06 Production Date FORD FUSION 2010-2012 V6 3.5L LINCOLN MKZ 2007-2010 Built After 9/03/06 Production Date LINCOLN MKZ 2011-2012 V6 3.5L MERCURY MILAN 2007-2009 Built After 9/03/06 Production Date

2.Package Includes:

1x Front Lower Control Arm And Ball Joint - Rear Position Driver Side -K620492 1x Front Lower Control Arm And Ball Joint - Rear Position Passenger Side -K620493 1x Front Upper Control Arm And Ball Joint - Passenger Side -k620635 1x Front Upper Control Arm And Ball Joint - Driver Side -k620636 2x Inner Tie Rod End -ev800531 1x Front Outer Tie Rod End - Passenger Side -ES800101 1x Front Outer Tie Rod End - Driver Side -ES800102 2x Front Lower Control Arm And Ball Joint -k620149

3.Note

(1).Please check the Compatible Fitment Chart above before payment making sure all the suspension parts listed on this page are compatible with your automobile.

(2). Although some parts have grease fittings, other parts are factory sealed, but do not affect the fit and quality of the parts.

(3).Please contact our customer services for targeted discount after all the items are received if you have reached any targeted discount thresholds, the terms of which is at the bottom of this page.

10 Year Warranty

This item is backed by our 10-year warranty. In the event this item should fail due to manufacturing defects during intended use, we will replace the part free of charge. This warranty covers the cost of the part only.

Please note: Any modifications to an item of any kind before contacting us will void any and all warranty coverage for this item. Please contact us before modifying the part so that we have the opportunity to correct the situation.

Tie-Rod End Replacement Guideline:

If you feel a bump in the steering when driving over road bumps or curbs, this might be due to worn tie rod ends or inner tie rods. Clicking noises during sudden steering movements can also be symptoms of a defective tie rod. In order to determine the exact cause and replace the defective tie rod, the car must be elevated with a vehicle lift in order to be examined more closely.

This useful tip applies to the exchange of tie rod ends and inner tie rods, which together form the so-called tie rod.

Picture(A)

Note: Cleanliness is extremely important when working on the power steering. Incorrect work and contamination can lead to leakage and, in the worst case, to failure of the steering assistance.

1.Lift the vehicle and dismount the front axle wheels.

2.Spray the fastening nut of the tie rod end with rust remover and leave it on for a few minutes.

Picture(B)

3.Dismount the front underride guard.

Picture(C)

4.Loosen the fastening nut from the tie rod and remove it completely.

5.Remove the tie rod end from the steering knuckle using an appropriate ball joint separator.

Picture(D)

6.Remove the clamp of the bellow on the steering gear.

7.Push the bellow towards the tie rod end.

Picture(E)

8.Unscrew the inner tie rod from the rack.

9.Clean the sealing face of the bellow at the steering gear.

Picture(F)

10.Clean the lug of the rubber contact surface of the ball joint in the steering knuckle.

Note:Always use new self-locking nuts and bolts for a reliable repair.

11.Screw the new inner tie rod into the rack and tighten it with the tightening torque that has been specified by the vehicle manufacturer.

Picture(G)

12.Mount the bellow and close the clamps with the appropriate special tool.

Note:Incorrect mounting of the bellow can lead to corrosion of the rack: the steering gear starts leaking which can lead to a failure in the steering assistance.

Picture(H)

13.Secure the ball joint in the steering knuckle and mount the nut. Please observe the tightening torque suggested by the vehicle manufacturer.

Note:During mounting, the ball stud should not turn within the ball joint. This can cause damage inside the ball joint and can lead to early failure.

Tip:Secure the ball stud against twisting with a suitable tool.

Picture(I)

14.Mount the front underride guard.

15.Mount the front wheels and tighten them with the tightening torque recommended by the vehicle manufacturer.

16.Align the wheels and adjust them if necessary. Observe the vehicle manufacturer specifications.

17.Perform a test drive.

Note:When performing the test drive, pay special attention to the handling while cornering and listen for possible noise emission.

Frequently Asked Questions

(1).What are the symptoms of a bad sway bar?

Some of the common symptoms of a bad sway bar bushing or sway bar links going bad are: clunking noise, rattling noise, knocking uneven noise road, lack of stability when driving and noise going over speed bumps. poor handling during turns.

(2).What happens when a sway bar breaks?

Because a sway bar helps the car's suspension to put more pressure on loaded springs, a broken sway bar means that the car's suspension will not be able to handle corners as well or as quickly. While it is possible to drive with a broken sway bar, as a precaution do not take corners with excessive speeds.

Ball Joint Replacement Guideline:

If there is a knocking or clunking noise in the area of the front axle when the car is traveling over road bumps, potholes or curbs, then there is usually a defect in a component of the wheel suspension.

Picture(A)

The side of the front axle from which the (vibration) noise is emanating can already be determined during a test drive. The type of noise also already provides certain indications for maintenance regarding which components might be faulty.

Picture(B)

1.Raise the vehicle and remove the front wheels.

2.To loosen the fastening screws and fixing nuts of the compression ball joint more easily, spray them with rust remover and allow to act for a few minutes.

Picture(C)

3.Loosen the fastening screws of the broken ball joint on the control arm and remove the nuts.

Picture(D)

4.Loosen and remove the fixing nut of the ball joint on the steering knuckle.

Tip:If the ball stud rotates, hold the ball stud in place with a hexagon socket.

Picture(E)

5.Remove the bad or worn ball joint from the control arm.

6.Loosen the compression ball joint on the steering knuckle using a suitable special tool.

Picture(F)

7.Clean the cone connection.

Tip:For better sealing and durability of the ball joint sleeve, a little silicone grease can be applied to the contact surface.

Picture(G)

8.Insert new compression ball joint in the control arm and steering knuckle and tighten with new fixing nuts.

9.Reinstall front wheels. Lower the vehicle and tighten the wheel studs to the tightening torque specified by the vehicle manufacturer.

10.Measure the chassis and adjust it using the various holes on the compression ball joint if necessary.

11.Finally, carry out a test drive.

Frequently Asked Questions

(1).How will I know that I have to renew my ball joint parts? Or replace them?

If your ball joint fails, you will listen to a strange sound while driving. And that sound may help you to realize that your ball joint has failed and you have to renew them.

(2).What happens if a ball joint breaks?

When a ball joint breaks, you will hear a mysterious noise inside your car wheel.

Your car tire will wear-out since your alignment will be broken, and you will feel the car getting out of control.

If the ball joint breaks completely, it can be separated, and things can turn sour quickly. The wheel will stop being nice and can even steer you off the road. It can be serious.

Broken ball joints will seriously affect the steering and suspension. It can even result in your wheel falling off the car.

(3).Are worn ball joints dangerous?

Yes, it can be quite dangerous. Because, a worn ball joint causes suspension damage, inspection failure, and breakage of related parts.

It might make your front suspension come apart while driving, so the wheels move in whatever direction inertia takes them. That can lead to a fatal accident.

(4).What happens if I don't replace ball joints?

If you don't want to replace your ball joints, then get ready to experience some serious issues. The old ball joints cause mysterious clunking noise or drifting steering. Once they are worn-out, it will seriously affect your steering and suspension. However, you do not need to change the ball joints if it is new.

(5).Do I need to grease new ball joints?

I would say it will be a wise decision if you grease your new ball joints. At least I will always grease a new one after the installation. Greasing a new ball joint will make it stronger and extend its lifetime because there is a minimal amount of grease inside. I suggest you do so after the first installation. Follow the instruction card.

Sway Bar Stabilizer Link Replacement Guideline:

While driving, the following signs may indicate a faulty sway bar stabilizer link:

(1).Rattling and thumping noises on rough roads.

(2).Imprecise vehicle handling.

(3).Stronger inclination of the vehicle during cornering.

If the sway bar stabilizer link is found to be defective, it should be replaced as described below.

Picture(A)

1.Raise vehicle and remove front wheels.

Tip:Always check both stabilizer links and replace them in pairs if necessary.

2.Spray fastening nuts of the stabilizer link with rust remover and let act for a few minutes.

Picture(B)

3.Loosen the lower fastening nut of the stabilizer link at the stabilizer and remove.

Tip:If the ball stud also starts to turn, hold it with a suitable tool.

4.Press stabilizer link out of torsion bar.

Picture(C)

5.Loosen the upper fastening nut of the stabilizer link at the suspension strut and remove it.

Tip:If the ball stud also starts to turn, hold it with a suitable tool.

Picture(D)

6.Press stabilizer link at suspension strut out of bracket.

Picture(E)

7.Insert new stabilizer link at suspension strut.

Picture(F)

8.Tighten stabilizer link at suspension strut to the tightening torque specified by the vehicle manufacturer.

Tip:Secure the ball stud against twisting with a suitable tool.

Picture(G)

9.Insert new stabilizer link at stabilizer.

10.Tighten stabilizer link at stabilizer to the tightening torque specified by the vehicle manufacturer.

Tip:Secure the ball stud against twisting with a suitable tool.

Picture(H)

11.Remount the front wheels. Lower the vehicle and tighten the wheel studs to the tightening torque specified by the vehicle manufacturer.

Tip:Even if replacing the stabilizer link does not directly affect the chassis setting, we recommend checking the axle setting and adjusting if necessary after working on the suspension.

12.Conclude with a test drive.

Frequently Asked Questions

(1).Why should I get my tie rods inspected on a regular basis?

If you don't get your tie rods inspected on a regular basis, there are some warning signs to watch (and listen) for. If your vehicle pulls to one side while driving, or when braking, it's possible that bad tie rods may be the culprit. Your vehicle's tires will also show uneven wear on the inside and outside edge of the tire when there's a tire rod issue. However, one of the most noticeable signs of tie rods going bad will be a knocking sound coming from the front end of the vehicle when you turn into a parking space, or some other low speed, tight turning situation.

(2).Vibrations

One of the first symptoms that your tie rods are damaged or breaking is that the steering wheel will vibrate slightly. This is especially prevalent when you are speeding up or turning. This happens because the steering wheel is losing its control over the tires, causing the steering wheel to shimmy as you drive.

(3).Shaking

As the tie rods become further damaged, you will start to notice that the car itself will start to shake. This happens because the tires may start to wobble without you having full control over them. Although you should take your car into a mechanic at the first sign of tie rod problems, if you experience your car shaking you could be at risk for serious tie rod damage-which can cause accidents. Take your car into a mechanic if you experience this tie rod symptom.

(4).Wandering

If your tie rods continue to go unchecked or unfixed, the rods can completely break. This can cause you to lose all control of your car, possibly resulting in an accident. When this occurs, the car will may "wander" as you drive. At this point, the steering wheel will have no control over the tires and the tires will start moving independently, causing the car to drift while you are driving. If this happens while you are on a freeway or busy road, you and others could be at serious risk of an accident. If you experience wandering, stop your car, call a tow truck and take your car to the nearest mechanic.

Item Specifics

Brand : ECCPP

Manufacturer Part Number : EC84199601

Placement on Vehicle : Front Lower Upper Inner Outer

Universal Fitment : No

Manufacturer Warranty : 10 Years

Features : Greasable

Items Included : Mounting Hardware

Type : Control Arm & Ball Joint Assembly

OE/OEM Part Number : K620492,K620493,k620635,k620636,ev800531,ES800101

Interchange Part Number : k620149,control arm ball joint,upper control arm

Superseded Part Number : inner and outer tie rod,ES800102,k620149

Mounting Style : Bolt-On

Finish : Coated

Material : Alloy Steel

Cotter Pin Hole : Yes

Item Specifics

Brand ECCPP

Manufacturer Part Number EC84199601

Placement on Vehicle Front Lower Upper Inner Outer

Universal Fitment No

Manufacturer Warranty 10 Years

Features Greasable

Items Included Mounting Hardware

Type Control Arm & Ball Joint Assembly

OE/OEM Part Number K620492,K620493,k620635,k620636,ev800531,ES800101

Interchange Part Number k620149,control arm ball joint,upper control arm

Superseded Part Number inner and outer tie rod,ES800102,k620149

Mounting Style Bolt-On

Finish Coated

Material Alloy Steel

Cotter Pin Hole Yes

Discount Shipping Warranty Return Feedback

Targeted Disounts Terms

(1).Targeted Discount Terms only apply to auto parts purchased from ECCPPAUTOPARTS, which only includes suspension kit, control arm, tie rod end, ball joint, sway bar, stabilizer link, pitman arm, idler arm, steering center link.

(2).If you have reached any targeted discount threshold(s), please contact our customer services after you received all your items.

(3).Targeted Discount will be refunded from buyer's payment, which means ECCPPAUTOPARTS won't provide any extra targeted discounts if full refund is issued.

Targeted Shipping Discount

(4). Since our warehouse is located in Los Angeles, California, therefore you are qualified for extra 2% targeted shipping discount off the item sales if shipping address of your order is in California(CA), Washington(WA), Oregon(OR), Nevada(NV). If you have reached this targeted shipping discount threshold, please contact our customer services after you received all your items.

Note: Item sales means your payment for the product(s) only, excluding shipping and handling charges, US internet sales taxes.

(5).We usually need a 1-2 business day as handling time for packaging and shipping scheduling. Estimated delivery dates should be 4-6 business days after your payment is received.

(6).ECCPPAUTOPARTS has the final power of interpretation of all the above Targeted Discount Terms and Procedures.

(1).Warehouse is located in Los Angeles, California, where local pickup transaction is temporarily not available.

(2).Shipping services only cover 48 states and Washington DC in US Continental, while most of the time Alaska, Hawaii, Puerto Rico, American Samoa, U.S. Virgin Islands, Northern Marianas, Guam are not deliverable.

(3).USPS PO Box, APO Army Post Office, FPO Fleet Post Office addresses are not available.

(4).Global Shipping Program is temporarily not available due to the reason for package dimensions.

(5).We usually need a 1-2 business day as handling time for packaging and shipping scheduling. Estimated delivery dates should be 4-6 business days after your payment is received.

(6).Your auto parts sometimes might be shipped with two or more separated packages due to weight limitation, please keep patient with no Item Not Received claim or Return request filed until by all of your items are received.

(7).Seller is required to purchase signature confirmation to be protected if a buyer reports an item not received or opens a payment dispute if the order has a total cost (including shipping costs and any taxes) of $750 or more.

Items valued over $15 on eBay that include a warranty or service contract must contain additional details in seller's listing description.

10 Year Warranty Terms and Procedures

(1).The warranty terms only apply to the auto parts purchased from ECCPPAUTOPARTS, which only includes suspension kit, control arm, tie rod end, ball joint, sway bar, stabilizer link, pitman arm, idler arm, steering center link.

(2).ECCPPAUTOPARTS carries no warranty responsibilities for any auto parts removing fees, installation fees, consulting fees, labor costs, towing charges, rental car reimbursements.

(3).The stated 10 year warranty is limited to only one brand new replacement for each part purchased during 10 year warranty time period.

(4).ECCPPAUTOPARTS promises free replacement due to quality defects or item not as described issues within 90 calendar days from the date when buyers receive their items in the situation when buyers are willing to provide convictive proofs or professional diagnose report if required, otherwise ECCPPAUTOPARTS has the right to refuse any replacement requests.

(5).ECCPPAUTOPARTS promises free replacement due to quality defects or item not as described issues after 90 calendar days from the date when buyers receive their items in the situation when buyers promise to prepay 15% of the original item sales price as postage for replacement, otherwise ECCPPAUTOPARTS has the right to refuse any replacement requests.

(6).ECCPPAUTOPARTS carries no warranty responsibilities for any replacement due to car accidents, drag racing, unprofessional replacement, road hazard, disassembly.

(7).Anyone who attempts to execute 10 year warranty procedures must be the original purchaser of the item(s), otherwise 10 year warranty terms void immediately.

(8).Anyone who attempts to execute 10 year warranty procedures must provide screenshot of his or her original eBay order details if required, including buyer user name, shipping address, item title, item id, final sales price.

(9).ECCPPAUTOPARTS has the final power of interpretation of the above 10 Year Warranty Terms and Procedures.

(1).Most of items support 60 Days Money Back Guarantee.

(2).Refunds will be credited within 2 or 3 business days after returned item(s) is received.

Copyright of ECCPP. All rights reserved.
