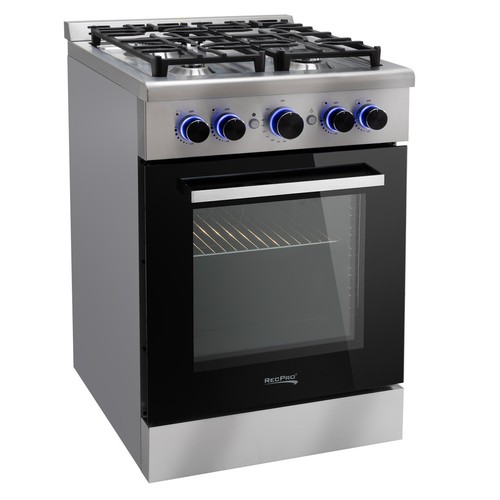

RecPro RV 24" Stove – Black Gas Range, 12,000 BTU, 4 Burners

Details:

• Color: stainless steel or black

• Oven and stove top capabilities

• Freestanding range

• 4 leveling legs

• CSA certified

• Conforms to ANSi Z21.57-2010, ANSi Z21.57a-2012, CAN1-1.16-M79

• Oven fan switch

• Oven light switch

• Fueled by gas (propane)

• ⅜” LP fitting

• Only for use in recreational vehicles

• One adjustable oven rack and one adjustable/removable drip pan

• 7 oven rack positions

• Light up control knobs

• Oven temperature setting from 250°F to 500°F

• Includes chimney decoration panel, 4 leveling feet, 1 anti-tip rear mounting bracket, 2 front leg securing brackets, and mounting hardware

Technical Data:

• 110V AC

• 50-60 Hz

• Manifold pressure: 10” W.C.

• Max test pressure: 13.8” W.C.

• Front right burner: 6000 BTU (Semi-rapid)

• Rear right burner: 6000 BTU (Semi-rapid)

• Front left burner: 3500 BTU (Auxiliary)

• Rear left burner: 9100 BTU (Rapid)

• Oven: 12000 BTU

• Rough overall dimensions: 24”W x 37 ¼”H x 25”D

• Interior oven dimensions: 17”W x 15 ½”H x 15 ¾”D (Height measured from bottom rack position)

• Overall burner dimensions: 20 ⅛”W x 19 ⅛”D

• Individual burner dimensions: 10 ¼”W x 9 ½”D

• Door opening clearance needed: 22”

• Power cord length: 54”

• Maximum overhead cabinet depth of 13” unless using a range hood

• Minimum horizontal clearance above cooktop to a height of 16”: left 2.3”, right 2.3”, rear 0”

• Minimum vertical clearance between cooktop and combustible construction about appliance: 30”

• Weight: 120 pounds
