NOS VIXEN AIR RIDE/SUSPENSION, 4 Corner; 9-SWITCH CONTROL

For consideration is a NOS Vixen VXF4CM14B 9-switch Airt Controller.

We were going to install this kit, but ended up going another route. It is new and unused, but it is missing the plugs for the ports on the unit. It looks like they can be ordered through the Vixen website: vixenhorns.com. There is also a little rust from moisture in storage on the top nuts of the air system.

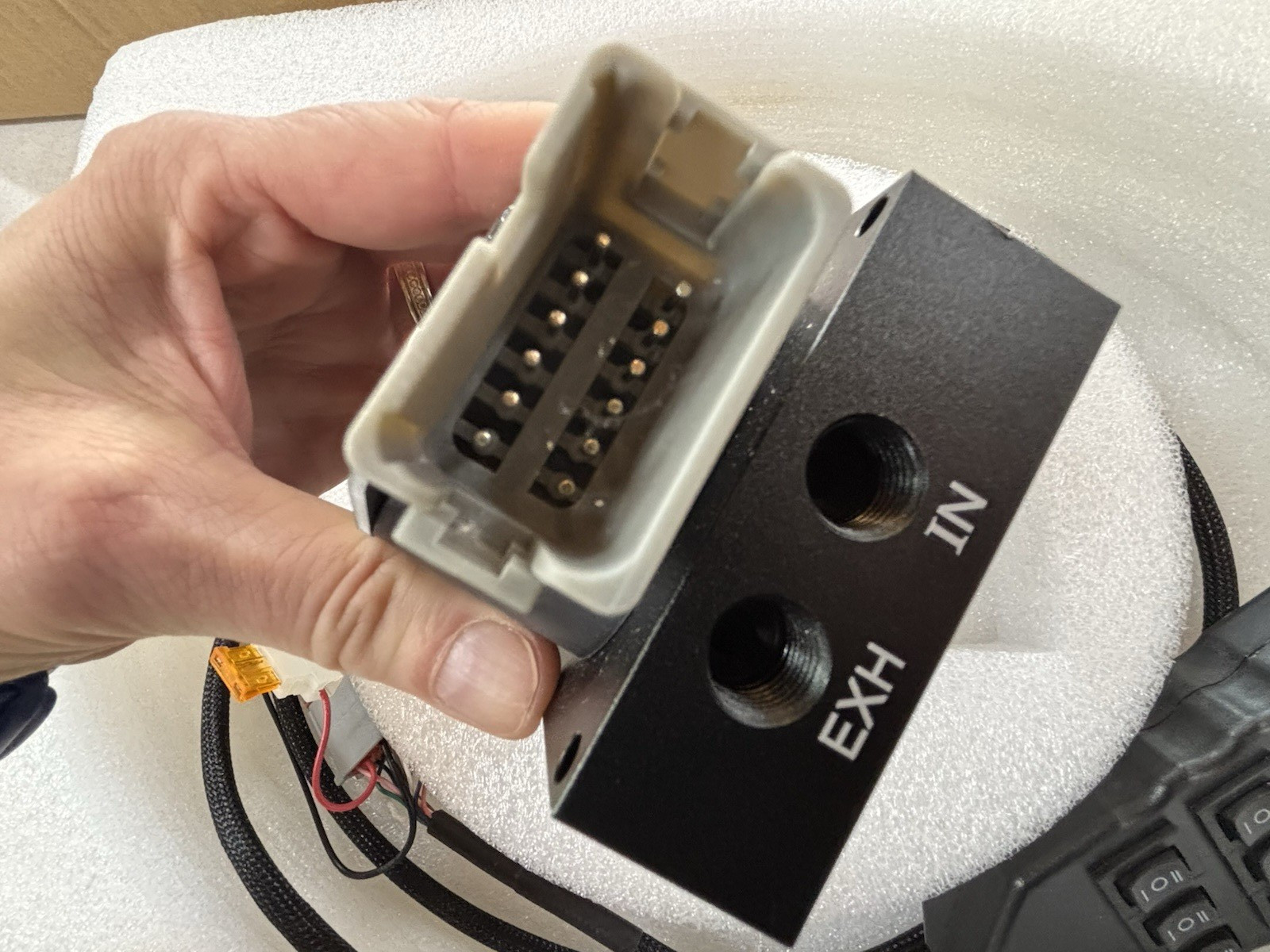

This manifold will inflate and deflate the air springs using two ¼" NPT Intake and two ¼" NPT Exhaust ports. The ports connecting the air line to the air spring are ¼" NPT while the ports connecting the air lines to the air gauges are ¼" NPT. Includes a 9-Switch Controller with weather-proof plug-n-play harness that not only controls 8 valves individually, but also improves the appearance and guarantees proper operation on every set-up. The robust internal solenoid valve structure maximizes flow rates and guarantees operation up to 230 PSI for millions of cycles. Provides seamless installation and reliable operation.

• ¼" NPT Suspension Manifold Air Valve

• Power Source: 12V

• Max Air Pressure: 230 PSI

• Two ¼" NPT Female Inlet ports

• Two ¼" NPT Female Exhaust ports

• Four ¼" NPT Female Air Spring Ports

• Four ¼" NPT Female Air Gauge Ports

• Fully Sealed Enclosure

• Dust and Water Protection (IP65 Rated)

• 2-way valves (normally closed)

• 9-switch Controller with weather-proof plug-n-play 6 FT fused harness for fast and accurate wire connections

• Dimensions: 6-½" W x 2-5/8" H x 3-1/8" D

• There are a few small MISSING from this kit:

• ¼" NPT Male Plug x 1 (to close one intake port if running only one air line from the tank)

• ¼" NPT Male Plug x 4 (to close the Air Gauge Ports if not planning to use Air Gauges)

• Mounting Hardware

Note: This manifold will operate four air springs (Inflate/Deflate)

General

Type Electric

Power 12V

Current Draw Per Valve: 1Amp

Max Pressure 230 PSI

Orifice Size 3mm

Flow Rating (CV) 0.23

Waterproof IP65

Ports

Inlet ¼" NPT Female x 2

Exhaust ¼" NPT Female x 2

Outlet ¼" NPT Female x 4

Gauge ¼" NPT Female x 4

Dimensions

Width 6-½"

Height 2-5/8"

Depth 3-1/8"
