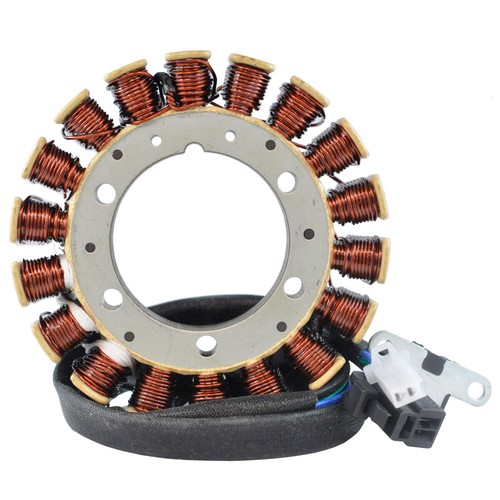

Generator Stator for Suzuki Boulevard C90 VL 1500 2005 2006 2007 2008 2009 | # 32101-10F10 32101-10F11 32101-10F12

&nbsp

KEY FEATURES

&nbsp

100% NEW: Never used. Brand new direct replacement generator.

HIGHEST GRADE: Highest Grade lamination material and copper windings available.

QUALITY SOLUTIONS: Surpasses OEM quality for optimum performance.

FULLY TESTED & APPROVED: All shipped items are tested. One Year Product Warranty Included.

**Please Check Product Description For Vehicle Fitment. Images Illustrate Actual Item and All Necessary Components**

DESCRIPTION

&nbsp

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Brand new generator stator

• Direct replacement to your original unit

• Plug-and-play, direct fit, easy installation.

• Highest grade lamination materials

• Highest grade copper windings, resistant to 200 degrees Celsius.

• Pick up pulsar coil included

• Connector included

• Rubber grommet included

• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Vehicle models fitment

&nbsp

Suzuki Boulevard C90 VL1500 -- 2005-2009

Suzuki Boulevard C90T VL1500T -- 2005-2009

OEM part replacement

&nbsp

32101-10F10

32101-10F11

32101-10F12

Specifications

&nbsp

Dimensions :

Interior diameter : 53mm

Exterior diameter : 115mm

Thickness : 20mm

Length of wires stator to grommet : 120mm

Length of wires grommet to plug : 410mm

Length of pickup coil's wire to grommet : 45mm

Other specifications :

Number of wires : 5

Number of plugs : 2

Number of pins : 5

Wire to wire resistance :

Alternator : Black between each Black = 0.4ohms +/-20%

Pickup : Blue to Green = 220ohms +/-20%

instructions

&nbsp

Before installing your new stator

• Check the AC output of the stator.

• Replace any burned or corroded connectors on stator and regulator/rectifier

• Check and repair any melted wiring.

• Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code than your original. `

All of the wires are installed in the correct order; please do not change any of the wiring configurations.

This stator is designed as a direct plug-in replacement and should be used as such.

When bolting stator in, always use locking compound.

If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010??.

Warning:

Risk of electric shock. Disconnect the battery before servicing.

Ensure proper installation by a qualified technician to avoid malfunction.
