Triangulated 4 Link Kit Brackets 2500 Bags Air Ride Suspension Tube Mounts New

•

•

•

TATIT

Triangulated 4 Link Kit Brackets 2500 Bags Air Ride Suspension Tube Mounts New

•

Why Choose MaXpeedingrods?-------RIGOROUS TESTING

Stresst Test

Airtightness Test

Designed to withstand extreme temperatures

Air Suspension Bags Kit

Air Suspension Bags Kit

Fitment

for Universal Rear Weld-On Triangulated 4 Link Suspension Kit with Two 2500 Air spring Bags & Rear Air spring Bag Mounts;

for Ford F150/F250, for GMC Sierra；

for Chevrolet Silverado;

for Dodge Ram 1500 2500 3500, etc;

for Most Pickup Trucks, Hotrod, Ratrod or Classic Car with 2.75" Axle Tube.

• Package Includes

• 2x Heavy Duty Double Bellow Air Ride Suspension bags

• 4 x Heavy Duty Steel Bars

• Includes All Brackets & Hardware Needed to Install Mounting Hardware

Features

• Restore the original ride height and improve ride quality

Features

1、Stress Test Over 5,000,000 Times：Durable and Safe

2、Burst Pressure≥2.0MPa：High Compressive Strength and Less Noise

3、100% Air Tightness Guarantee

4、Temperature Range ≥ -40℃/ ≤ 70℃ (≥ -40°F/≤ 158°F)：Premium Natural Rubber Material

5. 4-Layer reinforcement construction: Enhances air spring load support.

6、Use high-quality steel with high load-bearing capacity and long life.

7、Excellent and practical bolt-on installation.

8、Safe carrying capacity and stability

9、Restore the original ride height and improve ride quality

10、Ensure our driving comfort and reduce tire wear.

11、Dacromet is a new surface treatment technology that has excellent corrosion resistance compared to traditional electroplating processes.

Specification

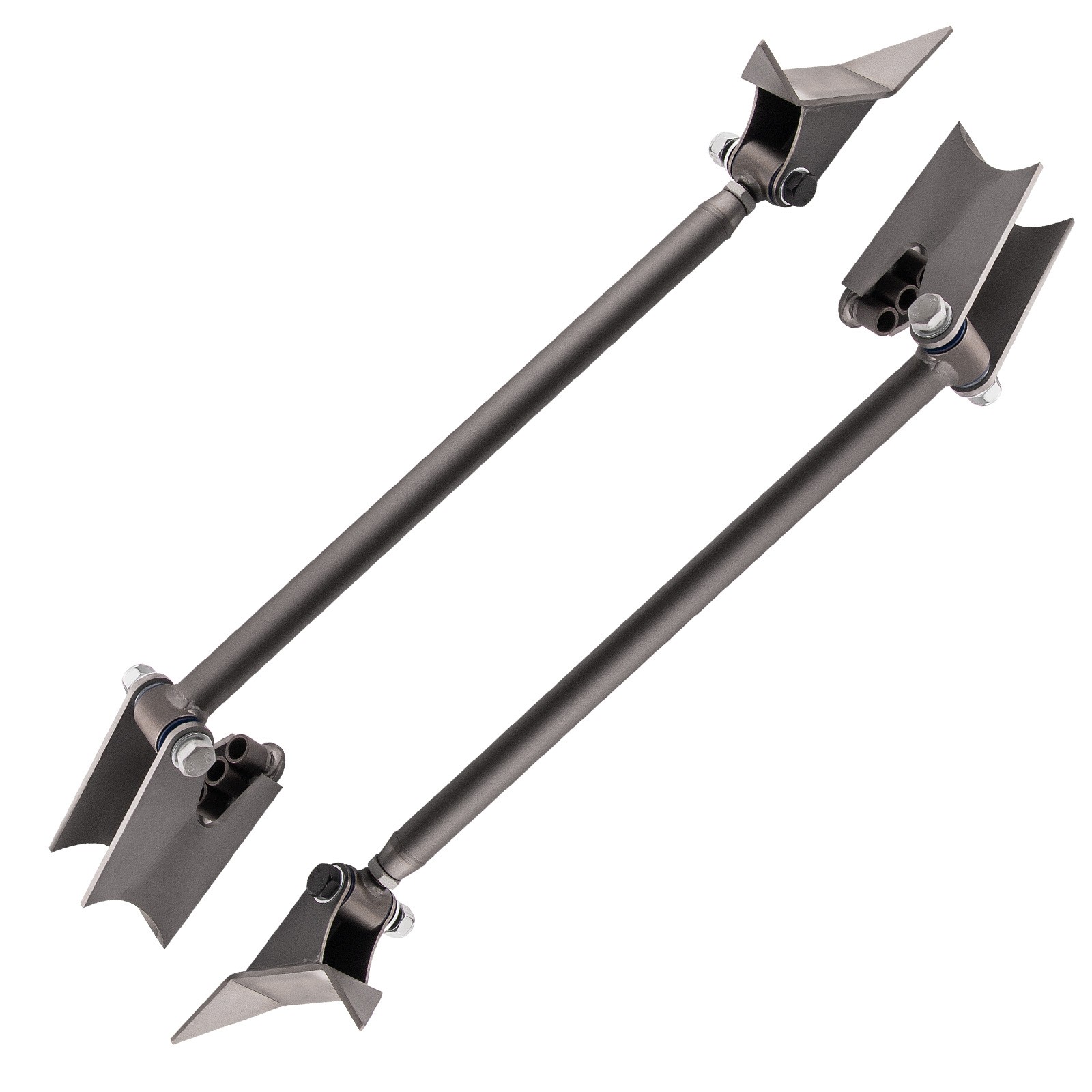

4 Link Bar Dimensions:

Tubing Outside Diameter: 1.25"

Tubing Thick Wall: 0.197"

All Four Bars: 24.00"

(Center To Center Adjusted All The Way In)

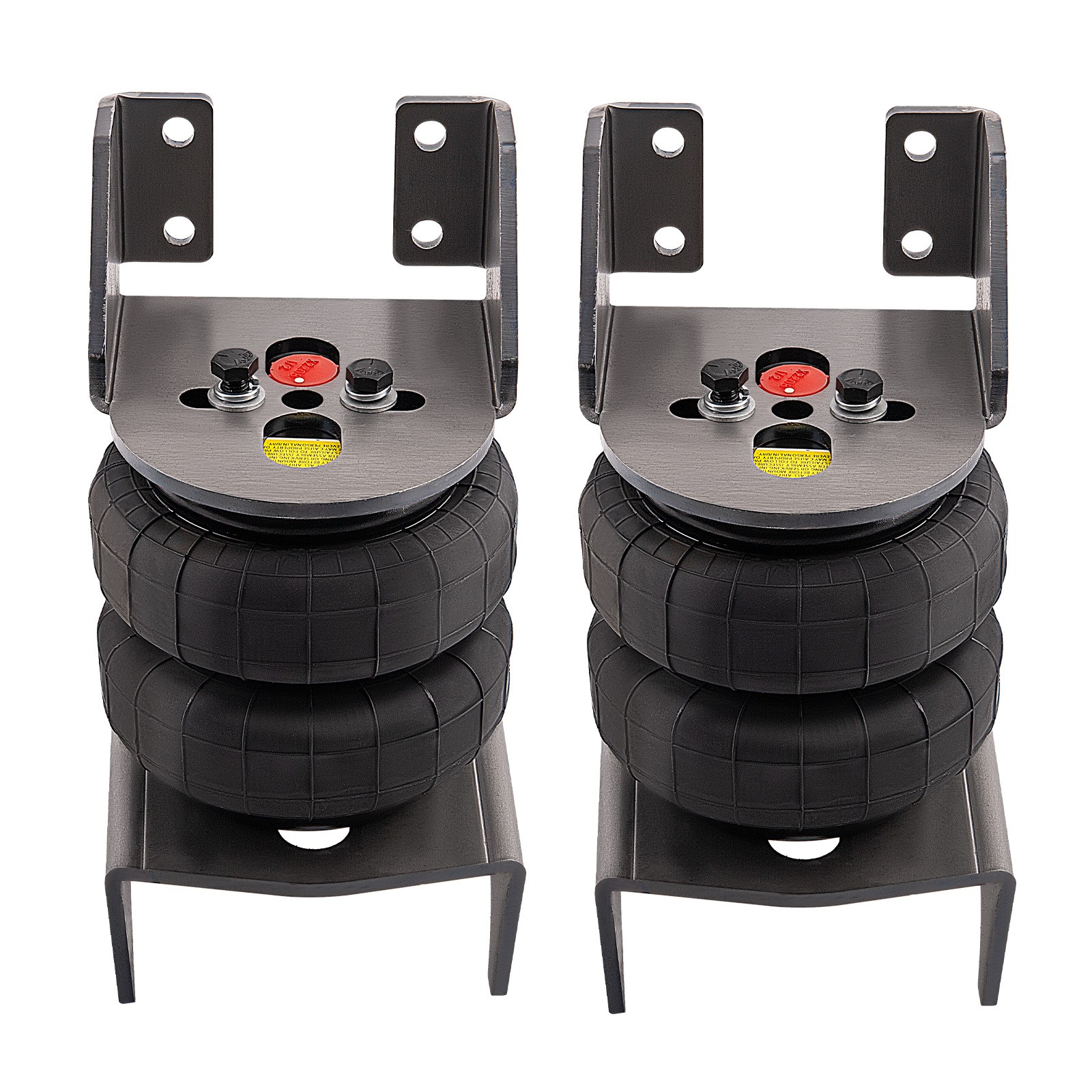

Specs of bag:

Diameter: 6"

Extended: 8"

Closed: 2.75"

Air spring bag capacity: 2500LBS

2 smaller bolt holes diameter: 0.3"

1 bigger bolt hole diameter: 1/2"-14NPT

Two Top Mounting Holes: Approx 1-3/4" from Eye to Eye

Bottom has One Mounting Hole in Center

All mounting holes are 3/8"-16 UNC

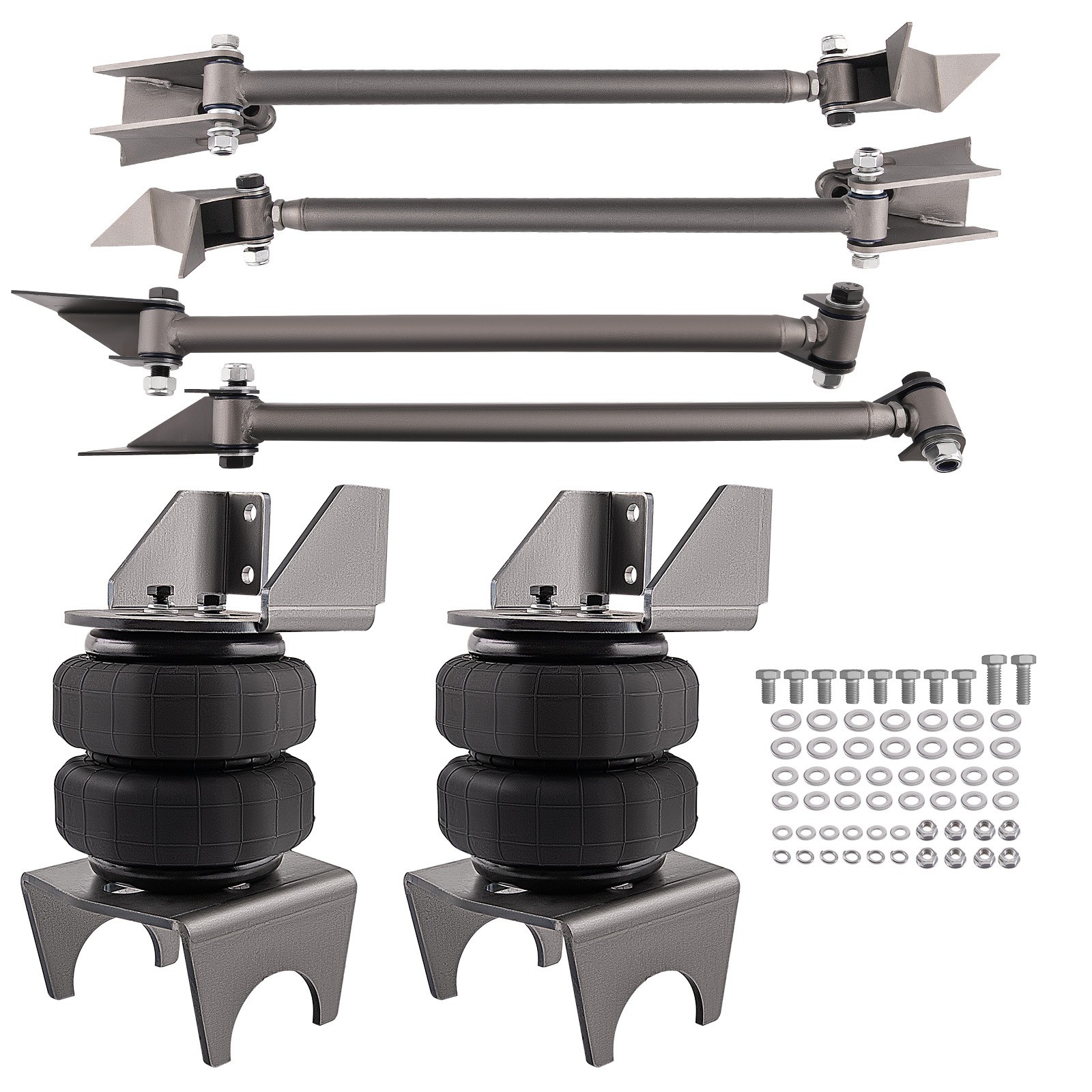

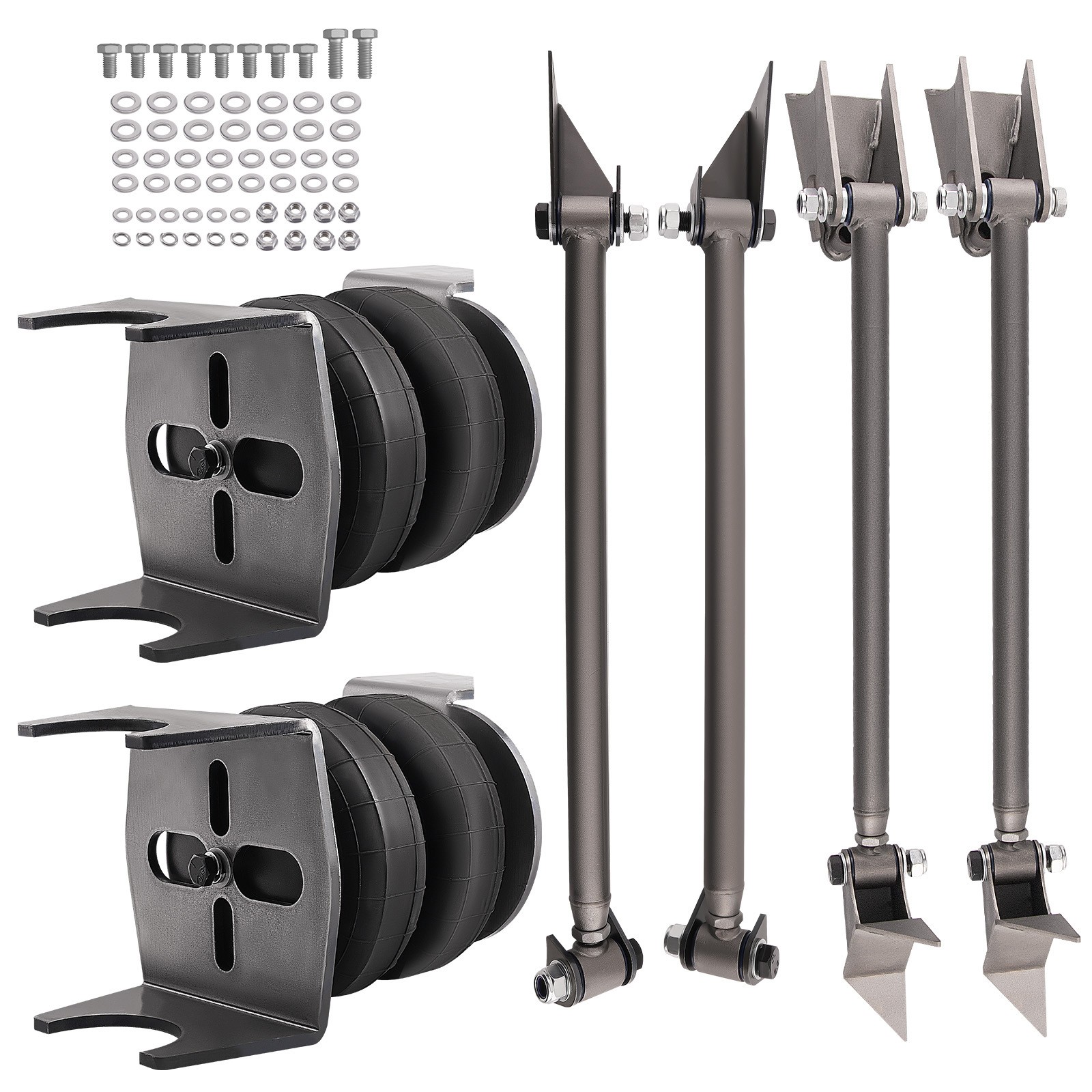

Package Includes:

4 x Heavy Duty Steel Bars

4 x Zinc Plated Steel Rod Ends W/ Urethane Bushings

2 x Steel, Weld-On Triangulated Frame Mounts

2 x Steel, Weld-On Lower Axle Tube Mounts

4 x Steel, Weld-On Center Link Axle Mounts

2 x Steel, Weld-On Side Frame Mounts

8 x Button Head Bolts with Nyloc Nuts

2 x Weld-On Lower Axle Bag Mount

2 x Weld-On Upper Frame Bag Mount

2x Standard 2500 Single 1/2"npt Port air spring bags

Key Featrues

Easy to install

Accurate Size of the spring bag

Sturdy & Durable Material

Universal fitment
