NEW Bushing Installation Tool For Hendrickson Turner Intraax Wide Bushing

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

NEW Bushing Installation Tool For Hendrickson Turner Intraax Wide Bushing

One year warranty

Free and Fast Shipping to US

High Quality and Quality Guaranteed

Part Number:

S21307

Product description：

Bushing Installation:

-Apply lubrication to the bushing and insert it into the compression cylinder.

-Position the plunger above the bushing, ensuring alignment between the marks on the bushing and plunger. The four respective pins for the bushing type being installed must fit into the bushing.

-Tighten retaining nuts to eliminate slack. Utilize a hammer adapter if the bushing is stuck. Verify alignment of the plunger with marked points on the beam tube and ensure pin engagement with the bushing. Connect hydraulics to start the installation process.

-Following each 2-inch stroke, re-tighten nuts to remove slack (usually requiring 3-4 adjustments for most bushings). Keep the tool threads well-lubricated before and during use to prevent thread damage.

Bushing Removal:

-Mark the orientation of the bushing on both the beam tube and compression tube.

-Alignment of spring pins with bushing holes is not necessary during the removal process.

-Eliminate any slack by tightening retaining nuts. In case of a seized bushing, use a hammer adapter. Connect hydraulics to initiate the removal task.

-After every 2-inch stroke, readjust the nuts to remove slack (typically requiring 3-4 adjustments for most bushings).

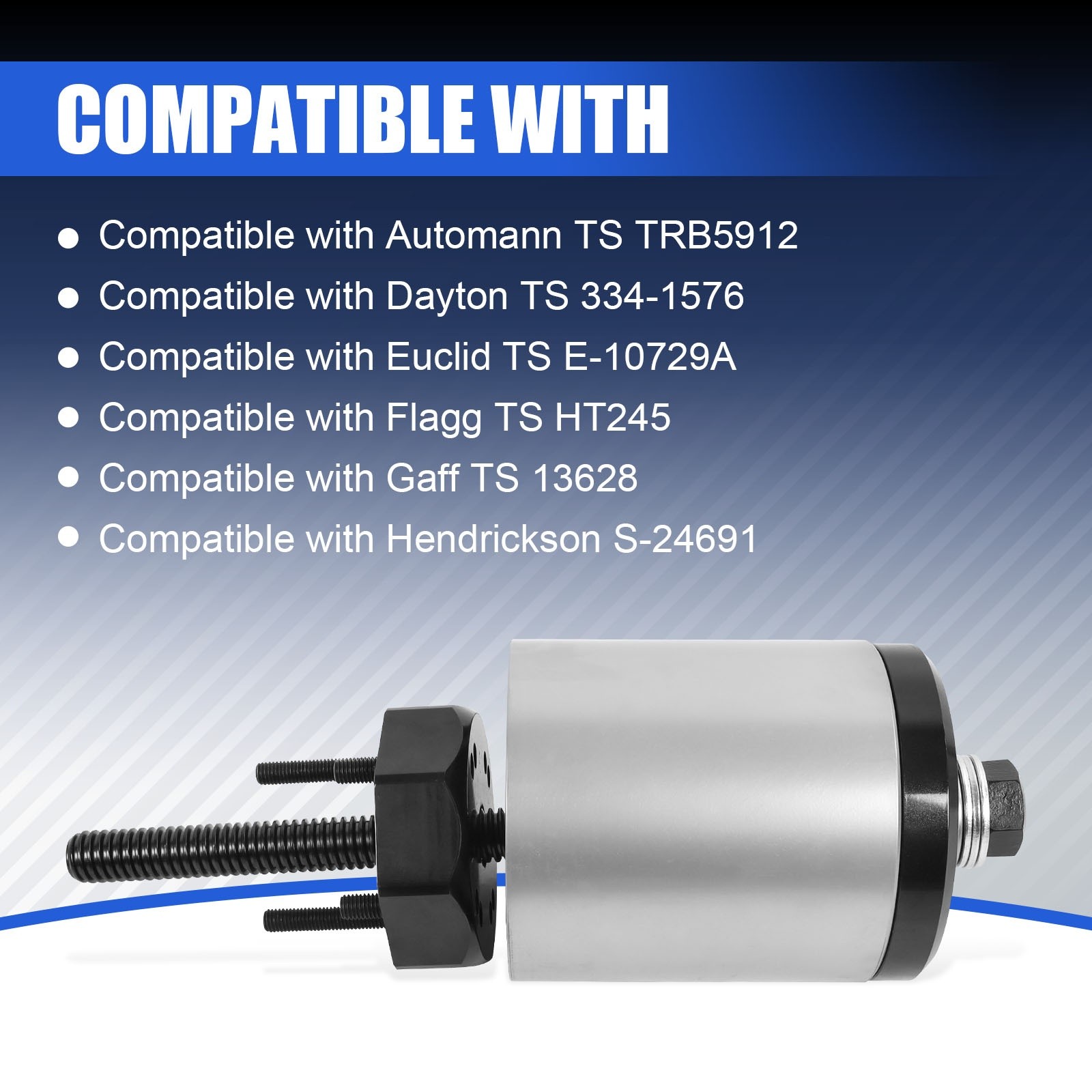

Fits For:

for Hendrickson TS S-24691

for Dayton TS 334-1576

for Automann TS TRB5912

for Gaff TS 13628

for Flagg TS HT245

for Euclid TS E-10729A

PS:

Ship items within one working days

All parts are in stock and ready to ship

The part you see is the part you receive

Standard size, perfect match for your vehicle

All parts are fully inspected and professionally packaged

If you have any questions, please contact me first

I will give you perfect after-sales service

Payment: Delivery details: 1 year warranty: Warning: Contact us: Payment:

We only accept PayPal payments from verified accounts with confirmed addresses. Orders will be shipped after receiving cleared payment. Payment due within 3 days after auction ends and for buy it now listings.

Delivery details:

Fast-Free shipping service for USA buyers. (Standard 3 to 7 days)

Ships to 48 US Domestic states(Hawaii, Alaska, Puerto Rico,Hawaii, US Virgin Islands and other US Territories additional extra charges)

No ships to the US military APO or FPO addresses.

And the free ships can not mail po Box address, pls offer the full physical address.

We also ship world wide, international buyers are welcome!

1 year warranty:

This item have 1-year warranty.

In the event the item should fail due to manufacturing defects during intended use, we will replace the part by free.

We only warranty cost of item parts. Any installation or other fees are non-refundable.

Note: Any modifying the item of any kind without contacting us will void any and all warranty coverage for this item.

Please contact us before modifying the part so that we have the opportunity to correct the situation.

You can contact us by ebay message to get the full text of the written warranty.

Warning:

This product can expose you to chemicals including Chromium (Hexavalent Compounds), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information, go to California goverment website, you can search California P65 Warnings.

Contact us:

Ship items within one working days

All parts are in stock and ready to ship

The part you see is the part you receive

Standard size, perfect match for your vehicle

All parts are fully inspected and professionally packaged

We respond to any and all buyer questions or issues

Brand JDMSPEED

Manufacturer Part Number S21307

Type Bushing Installation Tool

Interchange Part Number S21307

Superseded Part Number S21307

Country of Origin China

California Prop 65 Warning California Prop 65 Warning

Warranty 1 Year

Fitment1 for Hendrickson TS S-24691

Fitment2 for Dayton TS 334-1576

Fitment3 for Automann TS TRB5912

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•
