Carefre TAJVAPHW Compass 12V Electric RV Awning Arm Set
Updated June 18, 2026

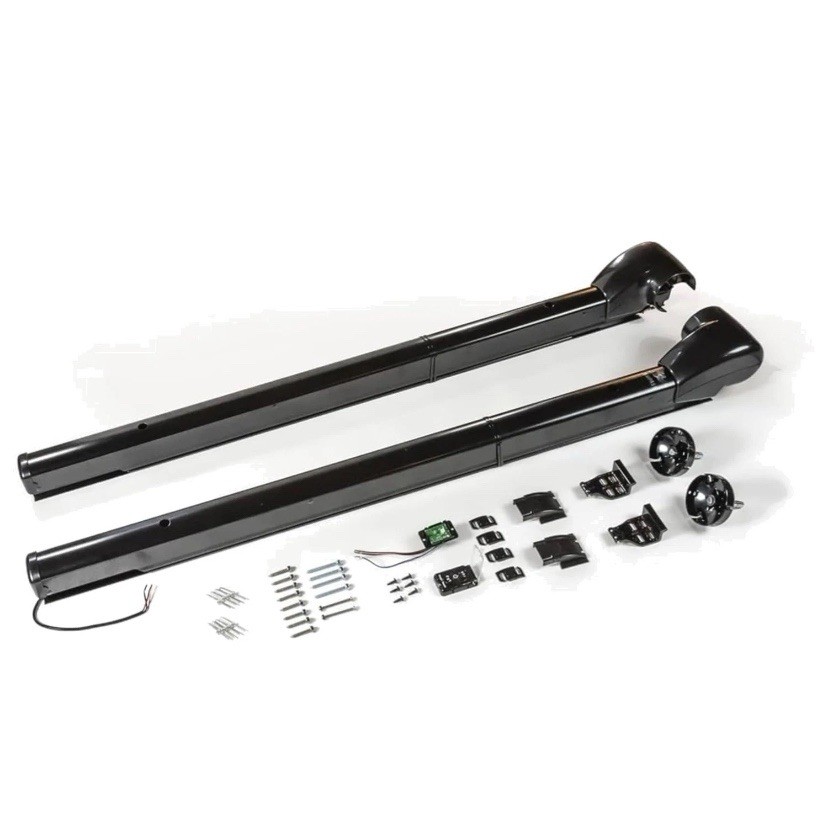

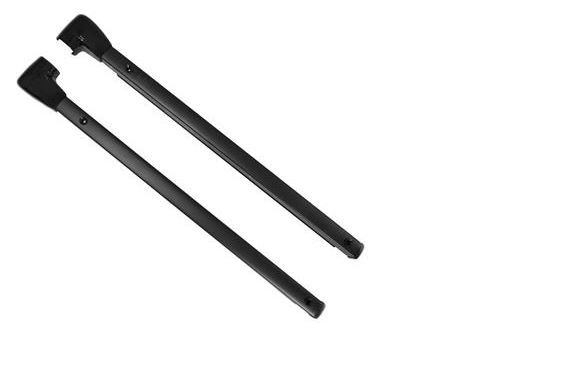

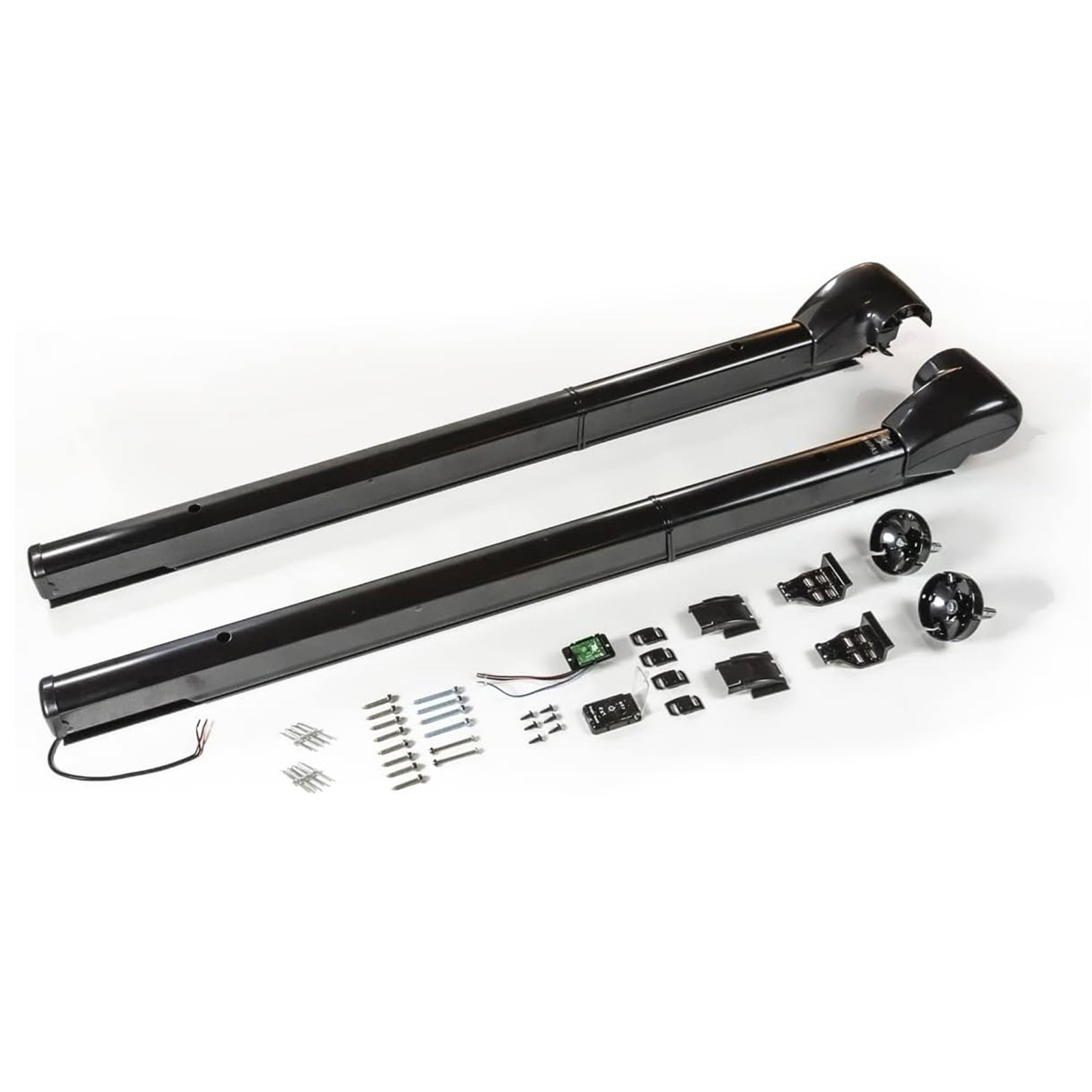

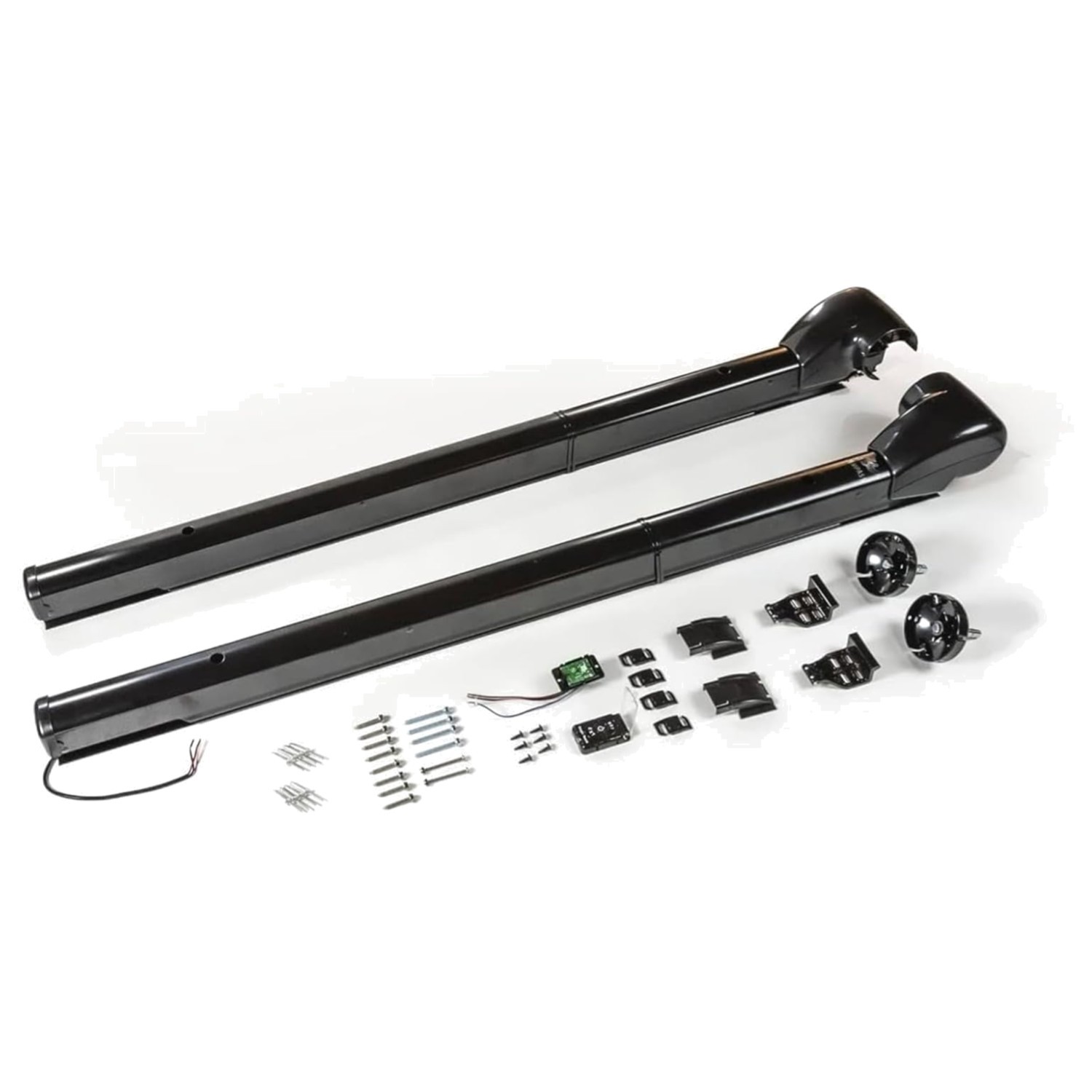

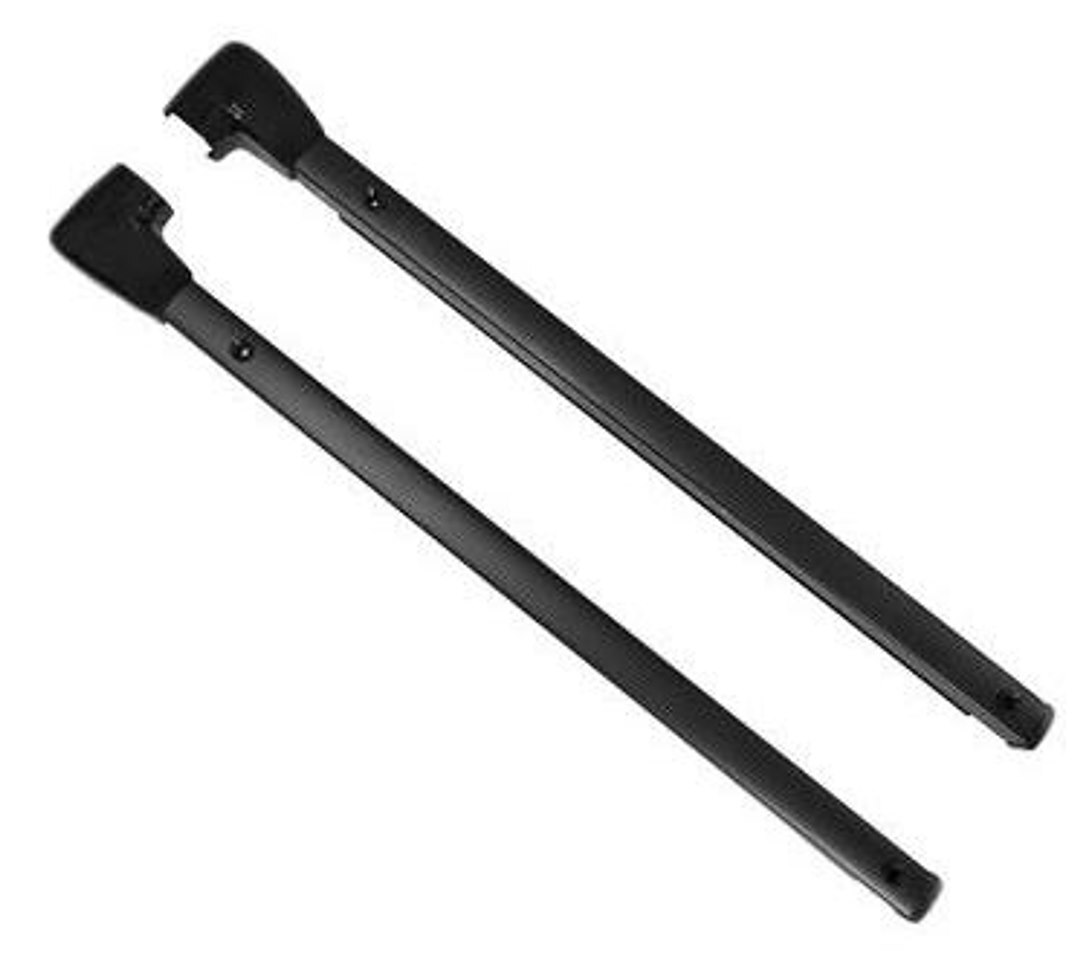

The Carefree TAJVAPHW Compass 12V electric motorized awning arm set is a complete replacement or upgrade for the support arms on a Carefree RV patio awning. Designed for straight-side coaches, this full set includes both arms, top brackets, a built-in motor, switch, and mounting hardware. It uses Carefree’s scissor-arm technology for increased stability and rigidity, and features an adjustable pitch with six settings from 3° (flat) to 16° (steep) to shed water or adjust shade. The arms are made from lightweight, corrosion-resistant aluminum and come in a black finish.
AI-generated content
How It Works
The Compass arm set replaces the manual or older electric arms on a Carefree patio awning. Each arm contains a 12V DC motor that extends or retracts the awning fabric via a single-touch button. The scissor-arm linkage provides smooth, synchronized movement and maintains tension on the fabric. The adjustable pitch mechanism allows the user to set the awning angle without tools, adapting to different weather conditions or campsite layouts. The set is self-leveling, automatically compensating for slight vehicle tilt to keep the awning fabric properly aligned.
Compatibility and Fitment
This arm set is designed for use with Carefree Compass, Longitude, and Altitude 3.0-inch diameter roller assemblies, as well as Eclipse, Travel'r, Pioneer, and Fiesta 3.4-inch diameter roller assemblies. It is intended for coaches with straight sides and requires an existing roller tube and fabric. The set includes a 3.4-inch adapter for compatibility with larger rollers. It is not compatible with rollers that have an existing metal wrap or Weathershield. The arms provide an 8-foot extension and have the shortest mounting surface footprint in the Carefree lineup.
Common Failure Symptoms and Diagnosis
Symptoms of failing awning arms include uneven extension or retraction, the awning sagging on one side, unusual grinding or clicking noises during operation, or the motor running but the arms not moving. These issues often stem from a worn or seized motor, damaged gears inside the arm, or debris binding the scissor joints. Before replacing the entire arm set, verify that the 12V power supply and switch are functioning, and check for visible damage to the arm tubes or pivot points. If the motor is dead or the arms are bent, replacement of the full set is typically required.
Installation Notes
Installation involves removing the old arms and mounting brackets from the RV wall and roller tube, then attaching the new Compass arms using the provided hardware. The motor must be wired to a 12V source and a switch (included). The adjustable pitch is set by rotating a collar on each arm before final tightening. Care should be taken to align both arms evenly to prevent fabric binding. The set is a direct replacement for Carefree Longitude 12V arms, but may require minor adjustments for other models. Professional installation is recommended if you are not experienced with RV awning systems.
