Kawasaki Ninja 650 / Z650 ECU – Engine Control Unit (2017-2024)
Updated June 18, 2026

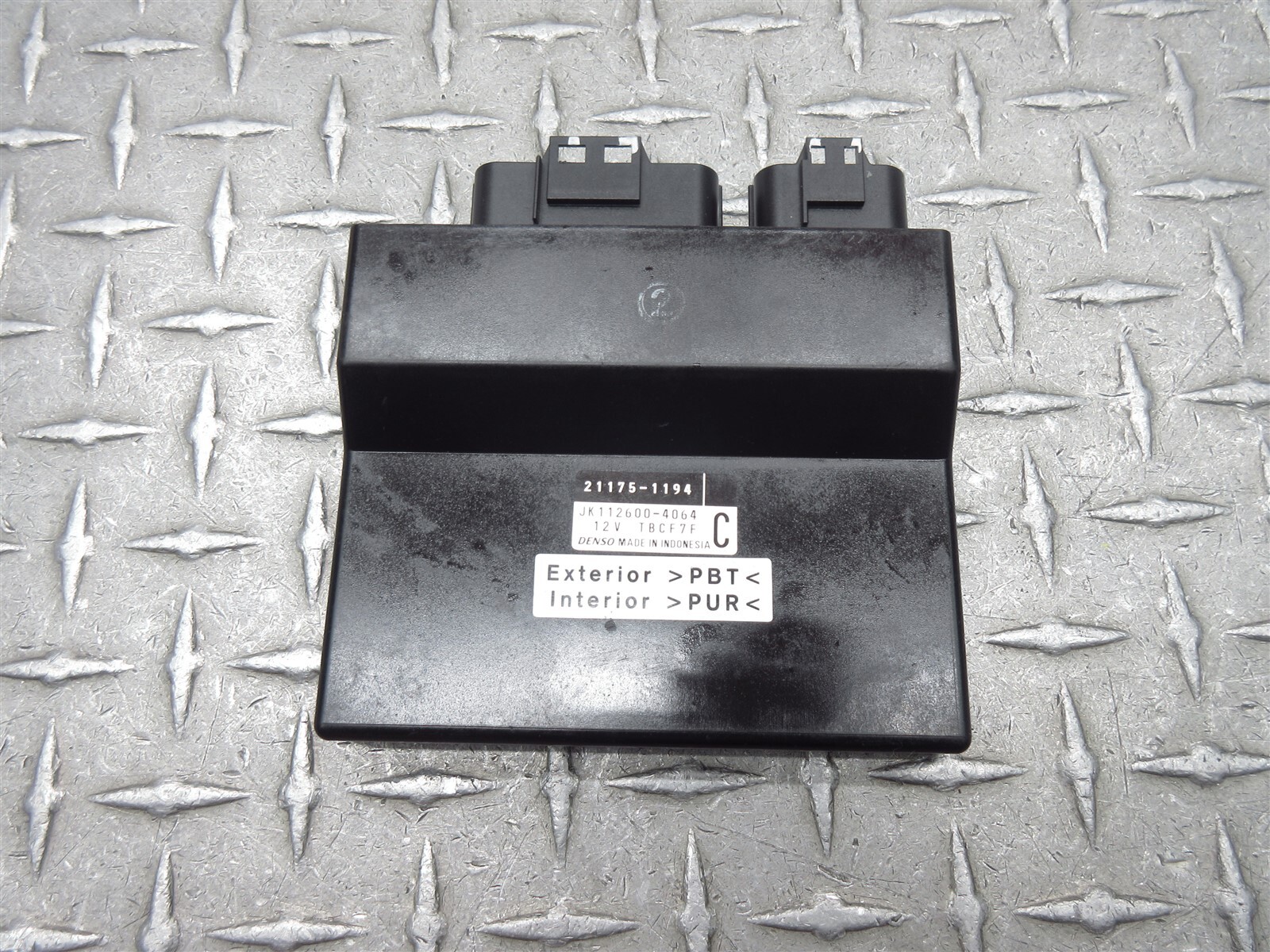

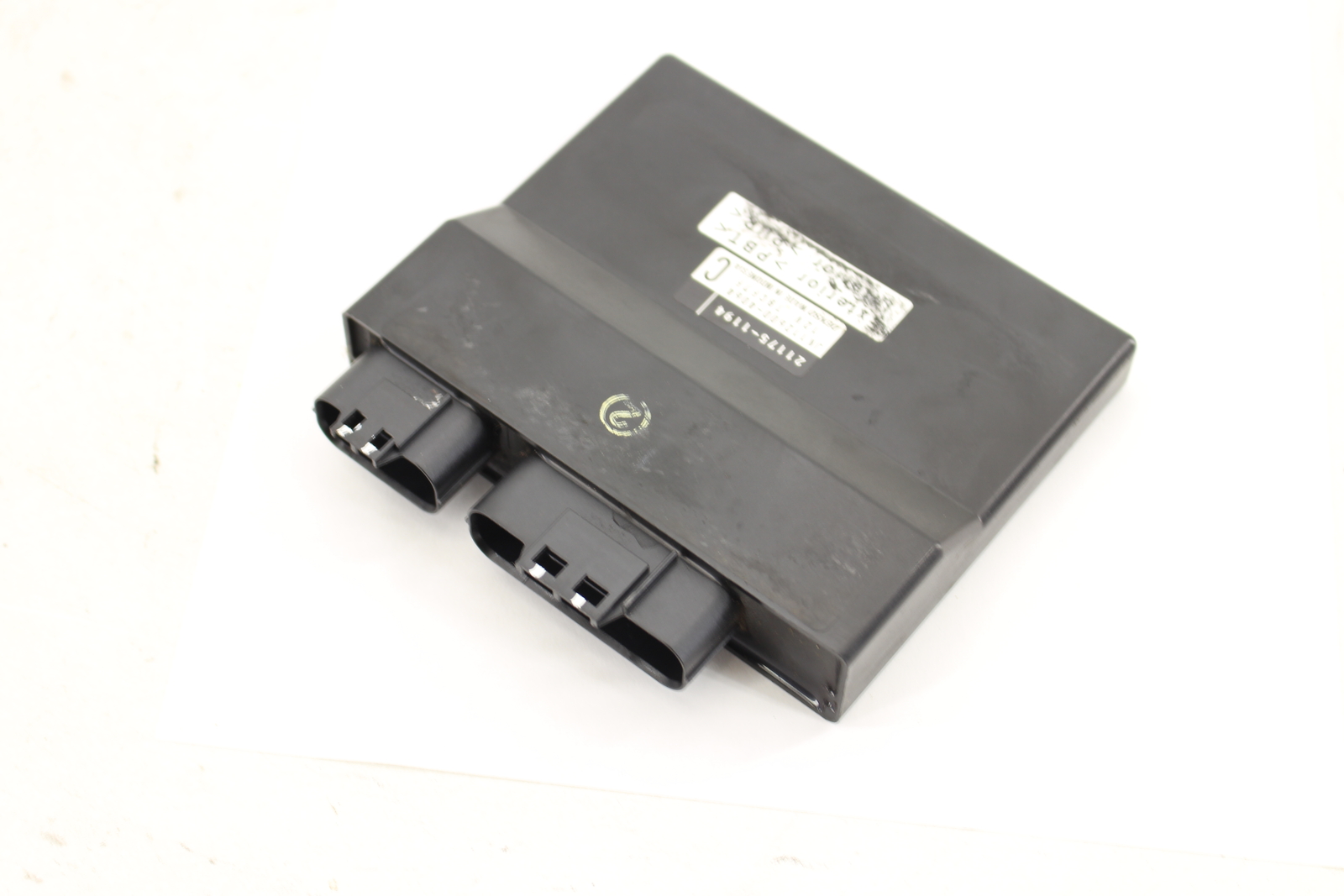

This ECU (Engine Control Unit) is the central computer for Kawasaki’s parallel-twin 650cc platform used in the Ninja 650 (EX650R) and Z650 (ER650) from 2017 through 2024. It manages fuel injection timing, ignition advance, idle speed, and emissions controls. The same ECU also serves the Z650RS retro-styled model. Many listings reference OEM part number 21175-1194, which is the standard replacement for both ABS and non-ABS variants across these model years.
AI-generated content
Function and Role
The ECU receives input from sensors including the crankshaft position sensor, throttle position sensor, intake air temperature sensor, and oxygen sensor. It processes this data to calculate the optimal fuel mixture and spark timing for the 649cc liquid-cooled engine. It also controls the fuel pump relay, radiator fan, and the immobilizer system (if equipped). On ABS models, the ECU communicates with the ABS module but does not directly control braking; it may adjust engine output during traction events.
Vehicle Fitment
This ECU is designed for the Kawasaki Ninja 650 (EX650R) and Z650 (ER650) produced from 2017 to 2024. It also fits the Z650RS (ER650C) introduced in 2022. Both ABS and non-ABS versions use the same ECU; the ABS system is a separate module. The OEM part number 21175-1194 is commonly stamped on the unit. While the ECU hardware is identical across these years, software calibration may differ slightly between model years, so matching the donor year to your bike is recommended for plug-and-play operation.
Common Failure Symptoms and Diagnosis
A failing ECU can cause hard starting, stalling, misfiring, erratic idle, or a no-start condition. The check engine light may illuminate with fault codes related to fuel or ignition systems. Before condemning the ECU, verify power and ground at the connector, check for corrosion on pins, and test related sensors (crank position, throttle position). Water intrusion or physical damage to the ECU housing is a known issue on some bikes. A used ECU from a running donor is a common replacement, but it must be from the same model family and ideally the same year to avoid compatibility issues.
Installation Notes
Installation is straightforward: disconnect the battery, unplug the wiring harness connector(s), remove the mounting bolts (typically two 10mm bolts), and reverse the procedure. The ECU is usually located under the seat or near the battery box. After installation, perform a full system check: turn the ignition on, confirm the fuel pump primes, and start the engine. If the bike has an immobilizer, the ECU may need to be paired with the ignition key transponder; this typically requires dealer-level diagnostic tools. Always inspect the connector pins for damage before installation.
