Kia Forte 2019-2021 Radio Receiver and Display Unit (Without Navigation)
Updated June 22, 2026

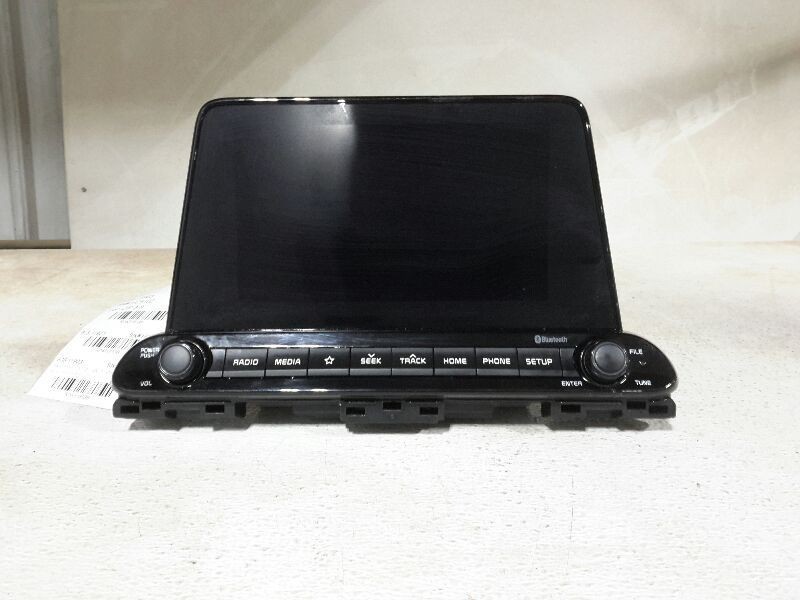

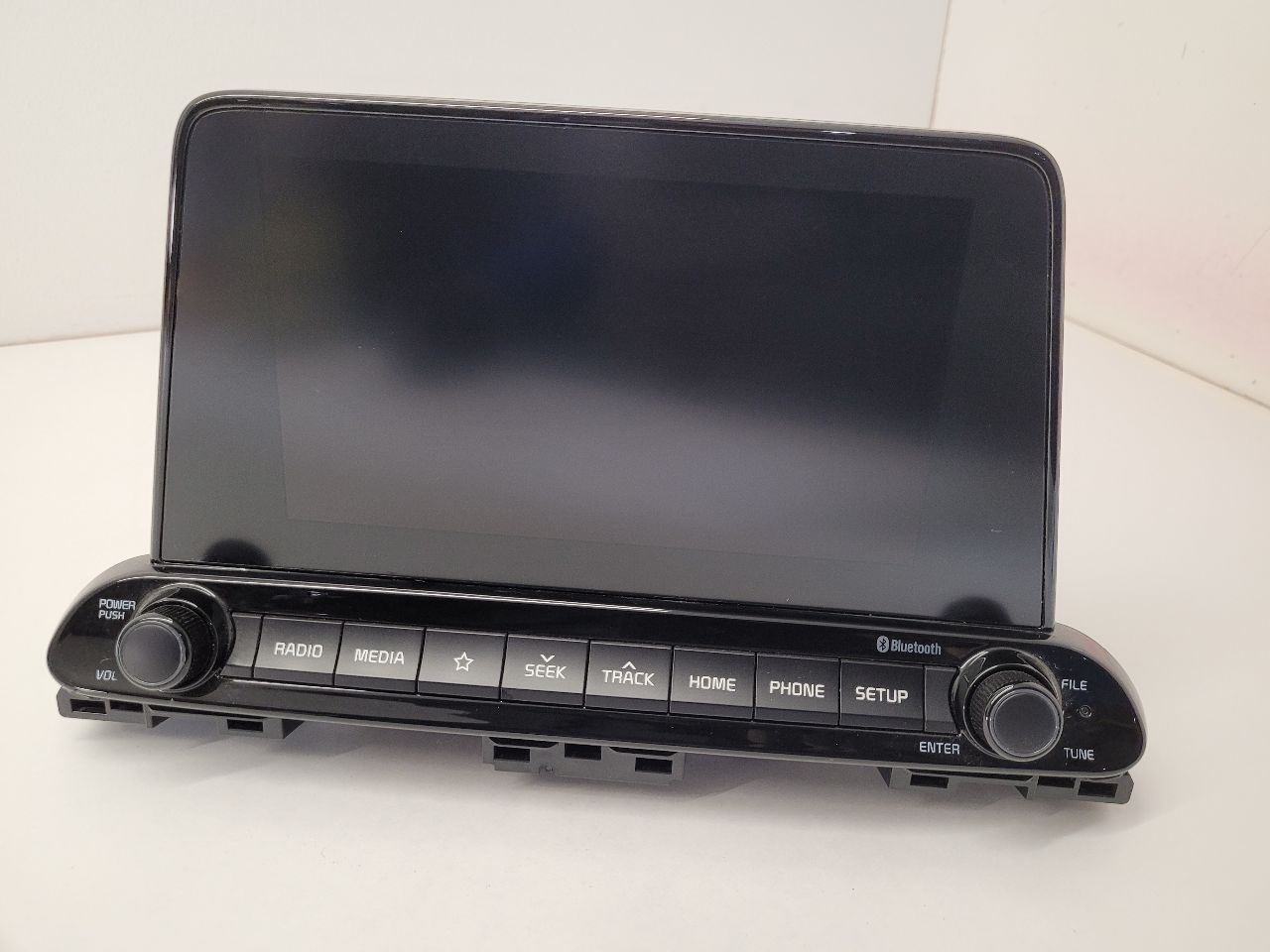

This is the factory-installed radio receiver and display unit for 2019-2021 Kia Forte sedans equipped with the Harman Kardon premium audio system and without factory navigation. It combines an 8-inch touchscreen display, AM/FM/XM/HD Radio tuner, and Bluetooth connectivity into a single dash-mounted module. The OEM part number is 96160M7070WK.
AI-generated content
Function and Design

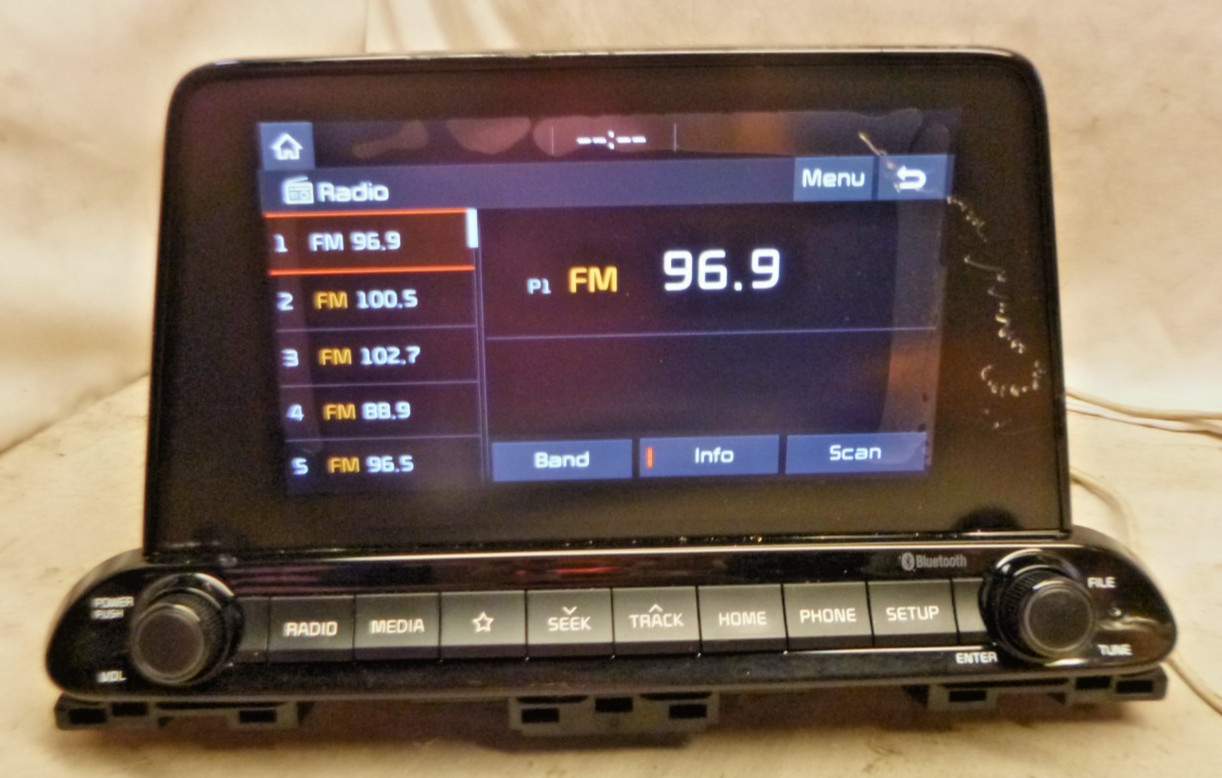

The unit serves as the central infotainment hub for the Kia Forte. It integrates the radio receiver, audio processing, and touchscreen display. It supports AM, FM, XM satellite radio, HD Radio, and Bluetooth hands-free calling and audio streaming. It does not include GPS navigation. The display is an 8-inch capacitive touchscreen. The unit communicates with the vehicle's audio system, including the Harman Kardon amplifier and speakers, and receives control signals from steering wheel buttons.
Vehicle Fitment and Compatibility
This part is designed specifically for the 2019, 2020, and 2021 Kia Forte sedan (not the hatchback). It is intended for US-market vehicles that came without factory navigation and with the optional Harman Kardon premium audio system. The OEM part number is 96160M7070WK. Always verify that your vehicle is equipped with the same audio system and lacks navigation before purchasing. The unit will not work in vehicles with factory navigation or different audio configurations without additional modifications.
Common Failure Symptoms and Diagnosis
Typical failures include a blank or flickering display, unresponsive touchscreen, no audio output, intermittent Bluetooth connectivity, or the unit failing to power on. Some units may display a 'Check System' message. A common issue is the need for an anti-theft code after a battery disconnect or unit replacement. If the screen has physical damage (cracks, dead pixels), the entire unit must be replaced. Diagnosis often involves checking power and ground at the harness, verifying the anti-theft code, and testing with a known-good unit.
Replacement and Installation Notes

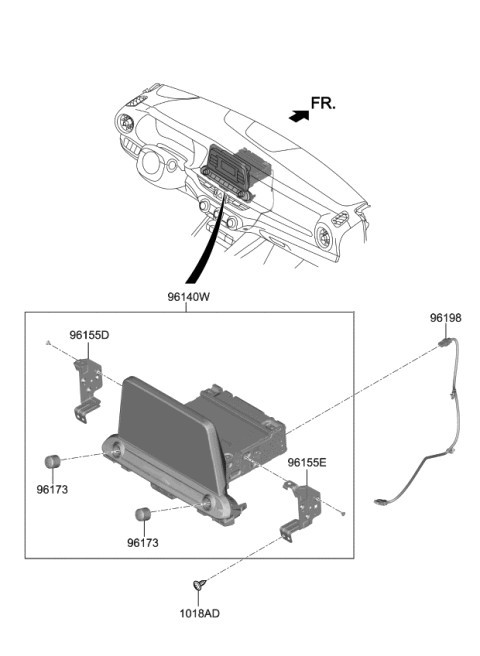

Installation requires removing the center dashboard trim and unbolting the unit. Disconnect the battery before starting. The unit is held by four screws and connects to the vehicle harness with multiple plugs. After installation, you may need to enter an anti-theft code (usually found in the owner's manual or on a card). Some features, such as steering wheel controls or vehicle settings, may require a dealer-level scan tool to program. Used units may not include mounting bolts or the anti-theft code.
