BMW Parking Distance Control (PDC) Sensor Module - 66205A44585
Updated June 25, 2026

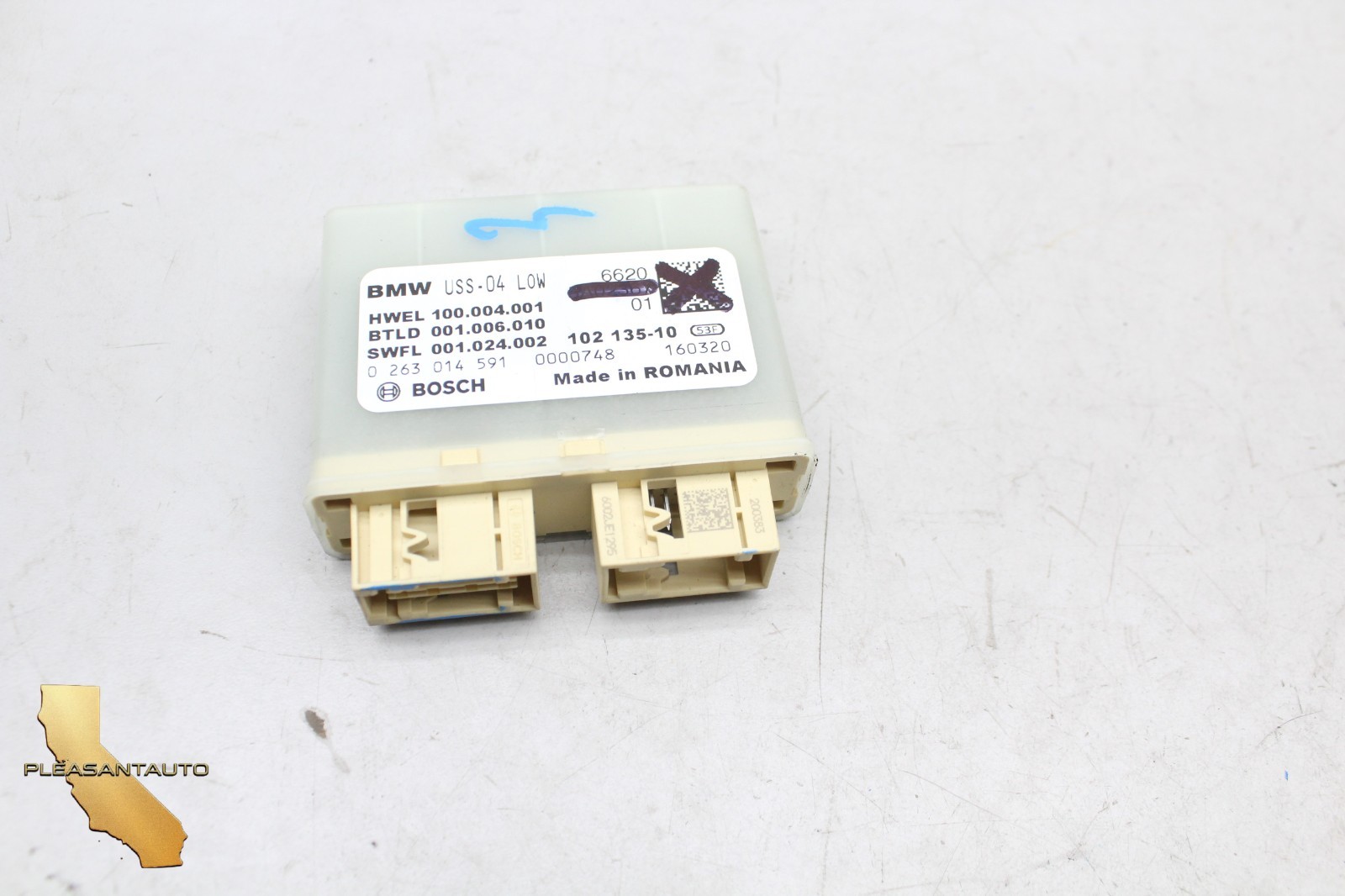

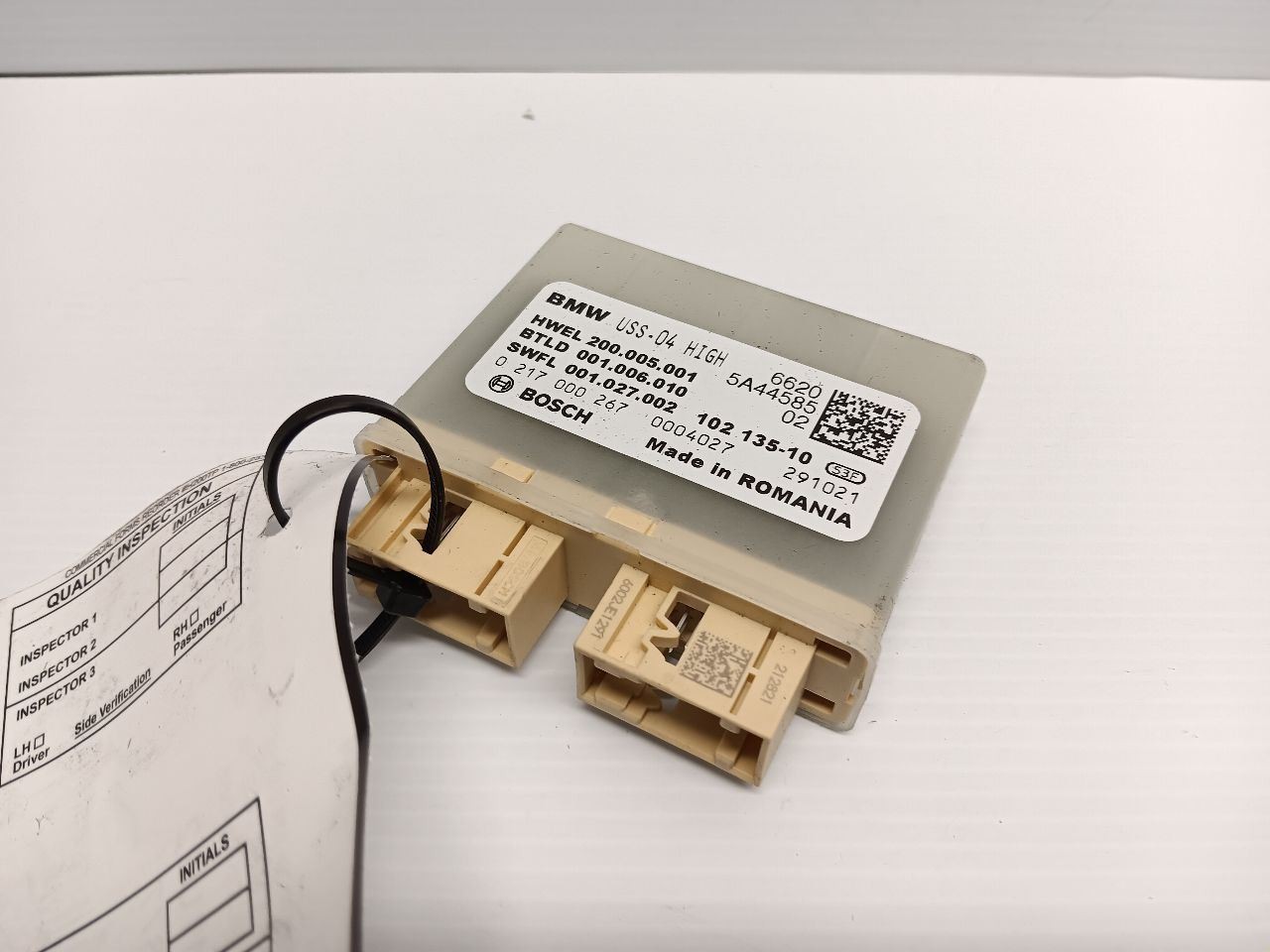

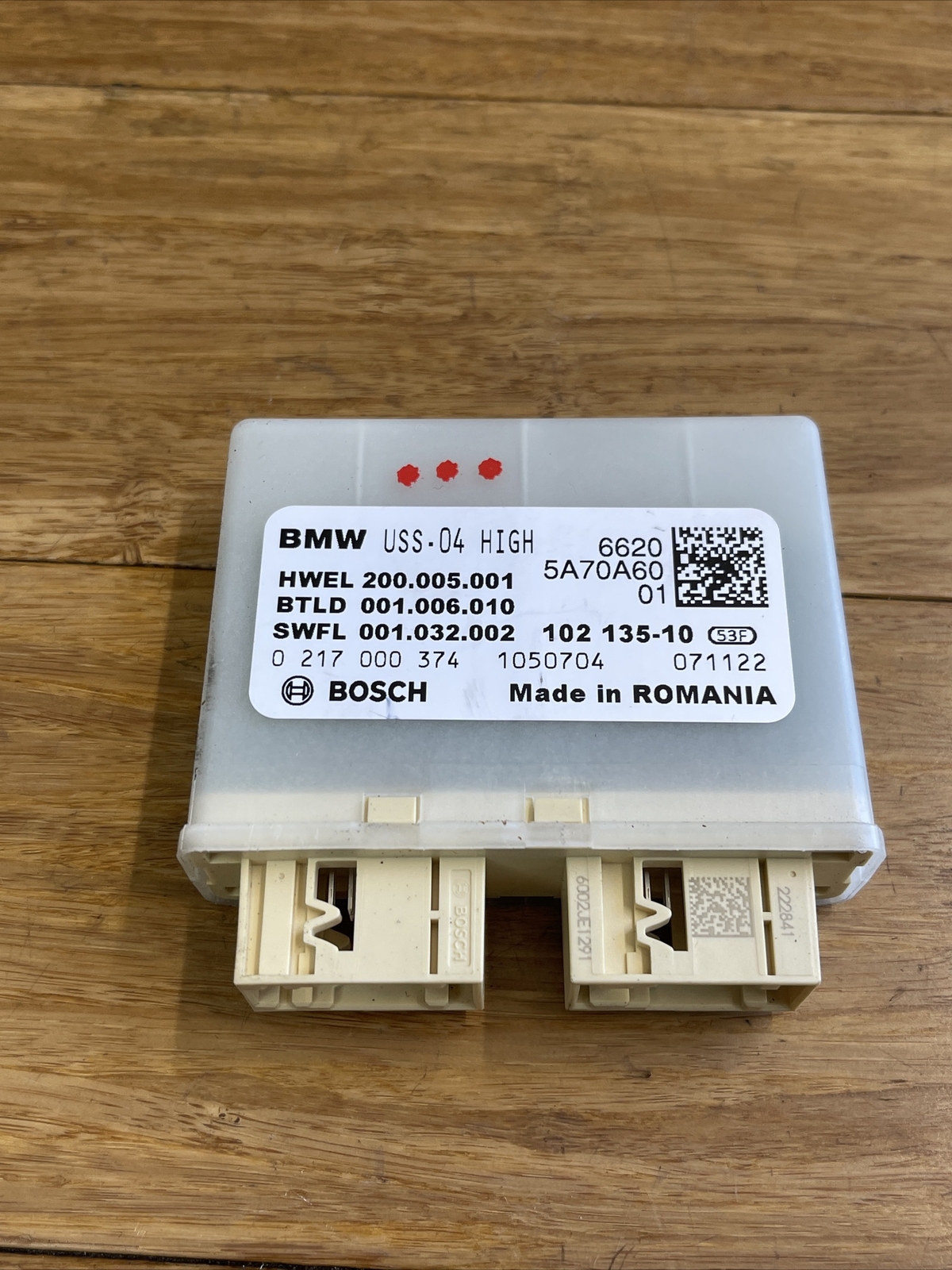

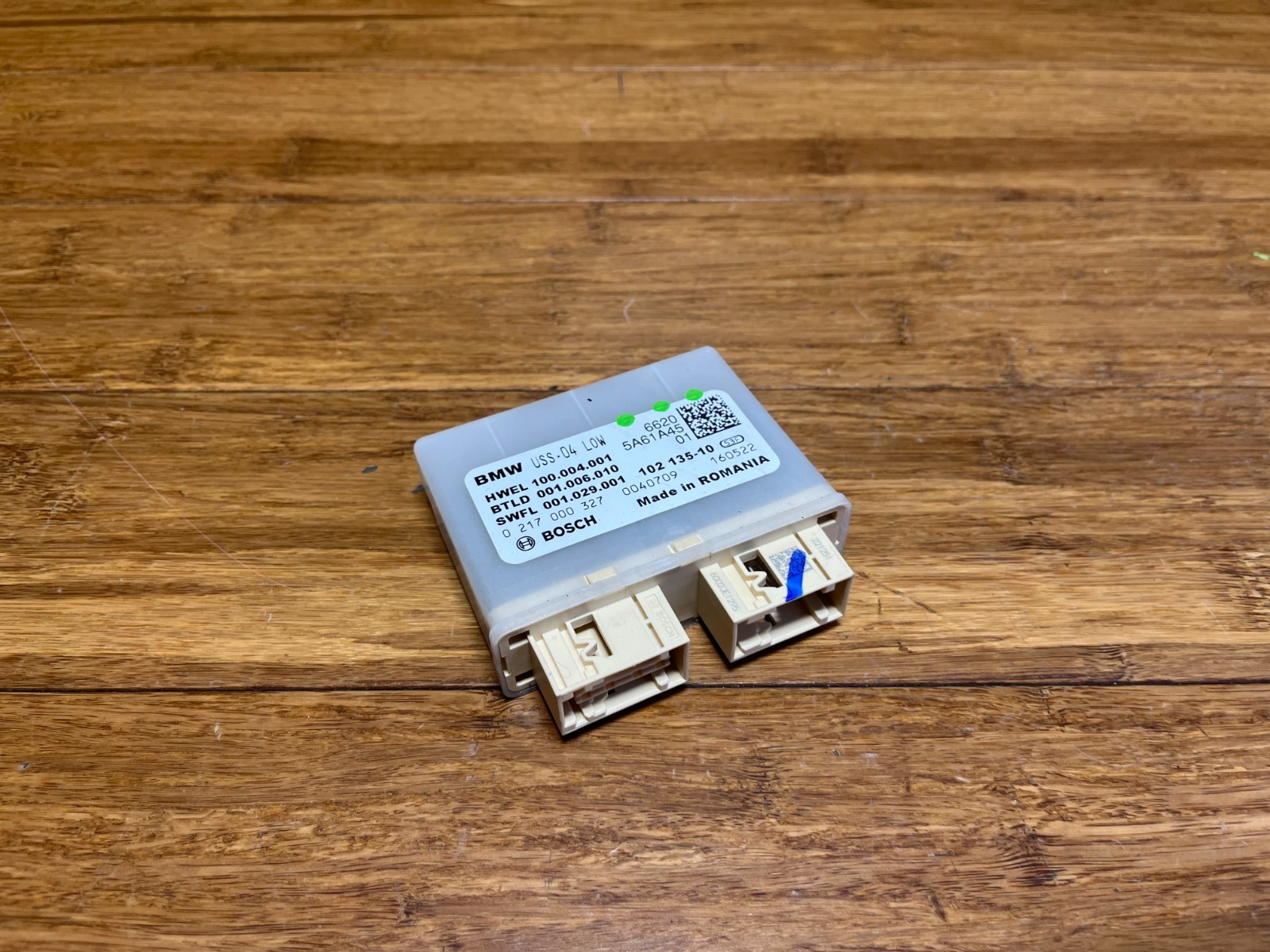

This is the electronic control module for the Parking Distance Control (PDC) system used in many late-model BMWs. It processes signals from the ultrasonic parking sensors mounted in the front and rear bumpers, calculating obstacle distance and triggering audible tones, visual indicators on the iDrive screen, and automatic braking or parking maneuvers when equipped with Park Assist. The module communicates over the vehicle's CAN bus and is a critical component of the driver assistance suite.
AI-generated content
Function and System Role
The PDC control module (OEM part number 66205A44585) acts as the brain of the parking sensor system. It supplies power to the ultrasonic sensors, interprets the reflected sound waves to determine obstacle proximity, and sends alerts to the instrument cluster and infotainment display. On vehicles with the optional Parking Assistant Plus, this module also enables semi-autonomous parallel and perpendicular parking by controlling steering, throttle, and braking inputs. It works in conjunction with the vehicle's other ADAS modules, such as the surround-view camera system and lane departure warning.
Vehicle Compatibility

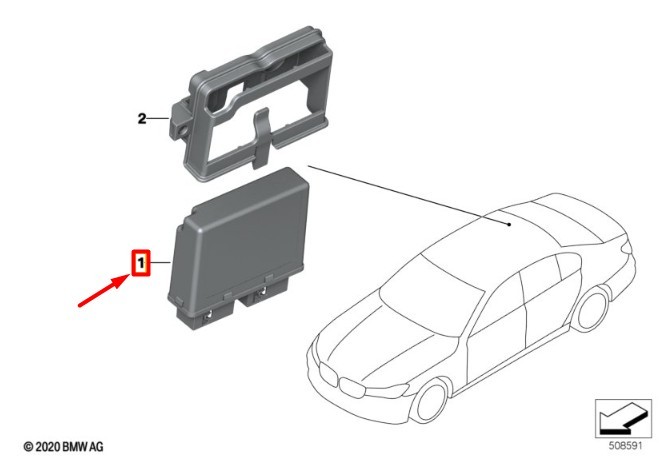

This module is widely used across BMW's 2019-2026 model lineup. Confirmed fitments include the G20 3 Series (330i, M340i), G22 4 Series (M440i), G30 5 Series (530i, M550i), G11 7 Series, G15 8 Series (840i, M850i, M8), G05 X5, G06 X6, G07 X7, and the high-performance G80 M3, G82/G83 M4, and F95 X5M. It also appears in the all-electric i4 (G26) from 2021 onward. The module is typically found behind the rear bumper, in the trunk side panel, or under the rear cargo floor, depending on the model.
Failure Symptoms and Diagnosis
Common failure signs include one or more parking sensors not detecting obstacles, intermittent 'Parking Assist Malfunction' warnings on the iDrive screen, or the system failing to activate at all. A faulty module may also cause the Park Assist feature to be unavailable or the automatic parking function to abort mid-maneuver. Diagnosis often begins with a BMW-compatible scan tool to check for fault codes such as 'PDC Control Unit: No Communication' or sensor-specific errors. Visual inspection of the module for water damage or corrosion is recommended, as the unit is sometimes vulnerable to moisture ingress.
Installation and Programming Notes
Replacing the PDC module is a straightforward mechanical swap—disconnect the battery, unbolt the old unit, and plug in the replacement. However, the module must be programmed and coded to the specific vehicle's VIN and options using BMW diagnostic software (ISTA or equivalent). Without proper coding, the system will not function correctly and may trigger persistent fault codes. Some sellers note that used modules require programming before use. It is also advisable to inspect the wiring harness and sensor connectors for damage during installation.
